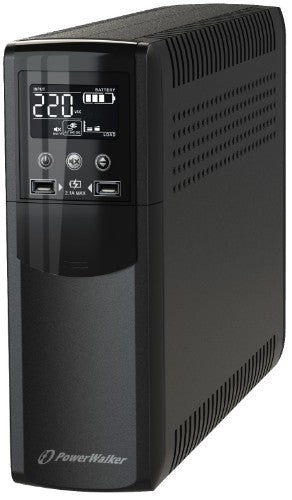

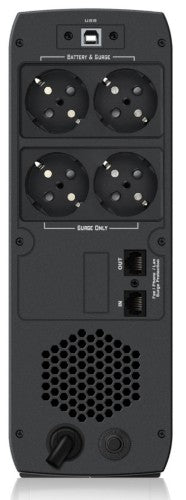

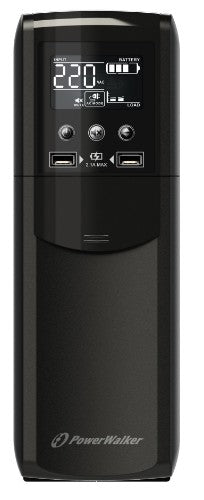

PowerWalker VI 600 CSW uninterruptible power supply (UPS) Line-Interactive 0.6 kVA 360 W 4 AC outlet(s)

Line-Interactive, 600VA / 360W, 170-280 VAC, 50Hz or 60Hz, 10ms, 40dB

Key Features

• Automatic Voltage Regulator with Pure Sine Wave output
• Human Interface Device (HID) compatible USB connection (no additional drivers needed)
• Easy user-replaceable battery design
• Two USB charging ports (2.1A) in front
• Auto dimming screen (UPS is woken up with single button click)

Description

PowerWalker VI CSW is a line-interactive UPS series with state of the art technology and design. The integrated AVR function and pure sinewave output ensures clean and stable output during power outages or voltage fluctuations. The UPS functions can be monitored and controlled via USB communication, either with a software or without (HID).

The modern and elegant design makes the VI CSW series especially suitable for home and office use. Applications include (but are not limited to) gaming and entertainment systems, office workstations, NAS etc.

Two USB charging ports (2.1A) in the front offers additional functionality and convenience. Furthermore, the design allows easy access to the battery compartment via the front panel for easy battery replacement.

Specifications

Power
Output frequency regulation	±1 Hz
Output power	360 W
Input operation voltage (min)	170 V
Input operation voltage (max)	280 V
Output operation voltage (min)	200 V
Output operation voltage (max)	230 V
Efficiency	98%
Power factor	0.6
Output power capacity	0.6 kVA
Performance
UPS topology	Line-Interactive
Waveform	Sine
Response time	10 ms
Noise level	40 dB
Features
UPS topology	Line-Interactive
Waveform	Sine
Output frequency regulation	±1 Hz
Response time	10 ms
Output power	360 W
Input operation voltage (min)	170 V
Input operation voltage (max)	280 V
Output operation voltage (min)	200 V
Output operation voltage (max)	230 V
Efficiency	98%
Power factor	0.6
Noise level	40 dB
Output power capacity	0.6 kVA
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
Number of type F outputs	4
AC outlets quantity	4 AC outlet(s)
AC outlet types	Type E, Type F
Power plug	C7 coupler
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
Battery
Battery voltage	12 V
Battery capacity	7 Ah
Number of battery cells	1
Battery recharge time	8 h
Design
Form factor	Tower
Product colour	Black
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Harmonized System (HS) code	85078000
Packaging content
Manual	Yes
Weight & dimensions
Package width	188 mm
Package depth	378 mm
Package height	387 mm
Weight	8.3 kg
Width	99 mm
Package weight	8.3 kg
Height	280 mm
Depth	288 mm
Packaging data
Manual	Yes
Package width	188 mm
Package depth	378 mm
Package height	387 mm
Package weight	8.3 kg
Logistics data
Harmonized System (HS) code	85078000
