Description

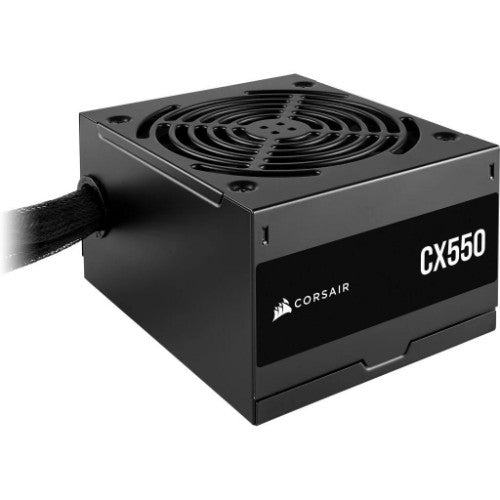

CX Series CX550 – 550 Watt 80 PLUS Bronze ATX Power Supply (EU)
80 PLUS BRONZE POWER
Delivers consistent power to your PC with up to 88% operational efficiency, generating less heat and lowering your energy costs.

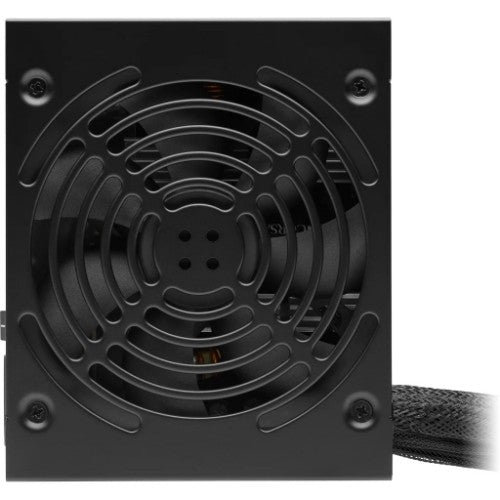

120mm LOW-NOISE FAN
Fitted with a thermally controlled fan that only spins at high speed when your power supply is under heavy load, automatically slowing down for quieter operation at lower loads.
AN EASY FIT
A compact 125mm-long casing ensures an easy fit in almost all modern PC cases.
Key Features
- 80 PLUS Bronze efficiency up to 88%
- Guaranteed continuous power
- 120mm low-noise cooling fan
- Compact 125mm length
Description
CORSAIR CX Series Power Supplies feature low-noise cooling and a compact design for an easy fit in nearly any modern case.80 PLUS BRONZE POWER
Delivers consistent power to your PC with up to 88% operational efficiency, generating less heat and lowering your energy costs.
120mm LOW-NOISE FAN
Fitted with a thermally controlled fan that only spins at high speed when your power supply is under heavy load, automatically slowing down for quieter operation at lower loads.
AN EASY FIT
A compact 125mm-long casing ensures an easy fit in almost all modern PC cases.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| Design | |
| 80 PLUS certification | 80 PLUS Bronze |
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| Power | |
| Total power | 550 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 - 5 A |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 624 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 52 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Ports & interfaces | |
| Motherboard power cable length | 60 cm |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 8 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| Cabling type | Non-Modular |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 125 mm |
| Certificates | |
| 80 PLUS certification | 80 PLUS Bronze |
