Description

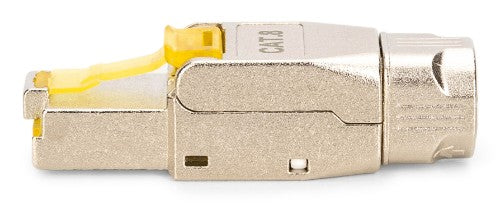

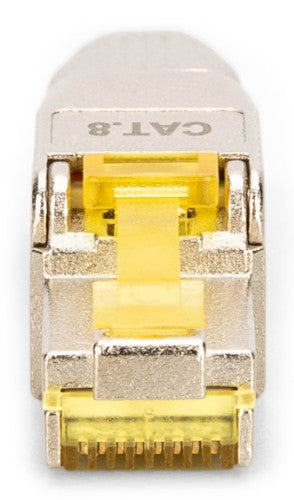

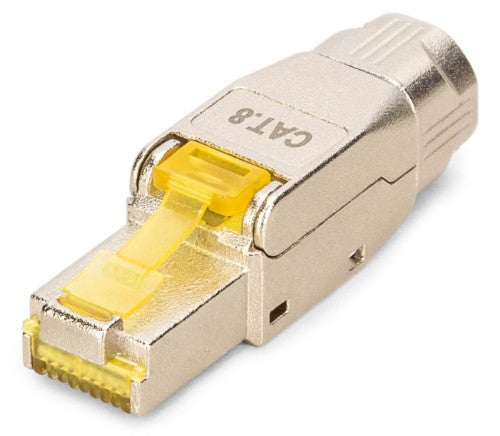

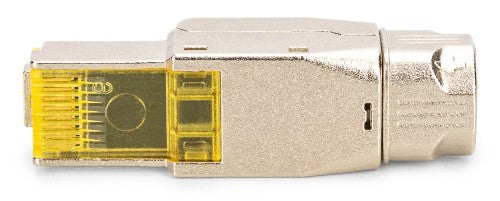

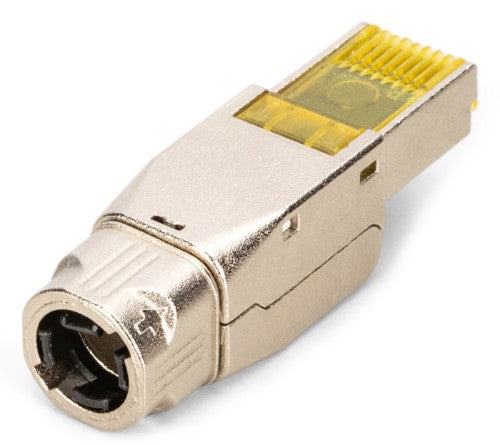

Cat.8.1 Field Termination Plug, shielded, metal screw, and dust cap
- High-speed transmission - Supports 25/40GBase-T with a bandwidth of 2000 MHz for ultra-fast networks
- Excellent shielding - The 360° shield contact minimizes interference and guarantees a stable connection
- Tool-free installation - field connector enables quick and easy installation without special tools
- Application area - Ideal for data centers, industry, building cabling and telecommunications
The DIGITUS® CAT 8.1 field connector with tool-free installation connection, which impresses with its future-oriented standards and high-end quality for your network. The field connector is suitable for patch cable installation with solid and stranded conductor cables. It conforms to category 8.1 / 25/40GBase-T ISO/IEC 11801, IEC 60603-7-81. The robust metal housing ensures long-lasting, stable connections. The quick assembly without special tools makes this field connector the ideal choice for installation, repair and maintenance.
Key Features
- Transmission characteristics:
- Category 8.1 - 25/40 GBase-T, 2000 MHz
- ISO/IEC 11801 3rd Edition, EN 50173-1
- Suitable for PoE/PoE+/4PPoE (IEEE 802.3af, 3at, 3bt)
- General specifications:

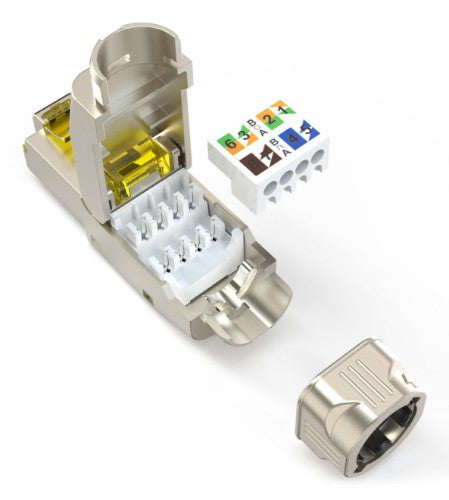

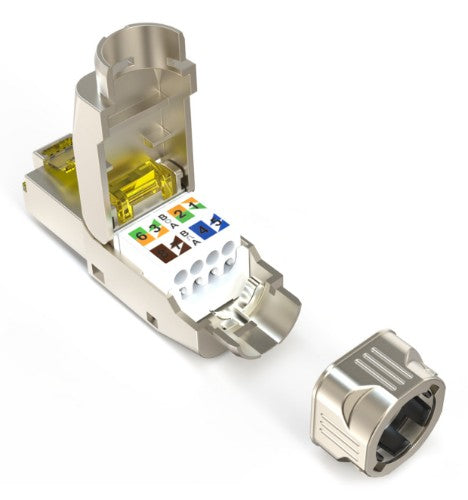

- Tool-free cable installation via LSA cutting terminals, color-coded according to EIA/TIA 568 A&B

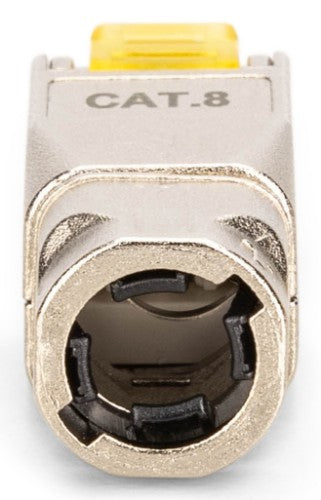

- Strain relief and cable fixation with screw cap
- RJ45 plug, 8P8C
- 360° shield contacting
- Technical specifications:
- Housing material: die-cast zinc
- Contact material: Phosphor bronze
- Coating of the contacts: Nickel, gold-plated 0.5 µ
- Physical specifications:
- Insertion force: Max. 30N (according to IEC 60603-7-81)
- Operating temperature: -20°C up to +70°C (ISO/IEC 11801, ANSI/TIA 568 C.2)
- Mating cycles: > 1500 (ISO/IEC 11801, IEC 60603-7-81)
- Copper conductor diameter: AWG (26/7 - 22/1), stranded and solid wire
- Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Description
25/40GBase-T transmission speed in permanent link up to 24 m and channel link up to 30 m- High-speed transmission - Supports 25/40GBase-T with a bandwidth of 2000 MHz for ultra-fast networks
- Excellent shielding - The 360° shield contact minimizes interference and guarantees a stable connection
- Tool-free installation - field connector enables quick and easy installation without special tools
- Application area - Ideal for data centers, industry, building cabling and telecommunications
The DIGITUS® CAT 8.1 field connector with tool-free installation connection, which impresses with its future-oriented standards and high-end quality for your network. The field connector is suitable for patch cable installation with solid and stranded conductor cables. It conforms to category 8.1 / 25/40GBase-T ISO/IEC 11801, IEC 60603-7-81. The robust metal housing ensures long-lasting, stable connections. The quick assembly without special tools makes this field connector the ideal choice for installation, repair and maintenance.
Specifications
| Features | |
|---|---|
| Connector shielding | Yes |
| Cable standard | Cat8.1 |
| Connector(s) | RJ-45 |
| Connector contacts plating | Nickel/Gold |
| Product colour | Silver, Yellow |
| Dielectric strength | 1000 V |
| Insertion force | 30 N |
| Connector gender | Male |
| Connector form factor | Straight |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Packaging data | |
| Package weight | 20 g |
| Package depth | 40 mm |
| Package width | 20 mm |
| Package height | 10 mm |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Housing material | Zinc |
| Connector shielding | Yes |
| Cable standard | Cat8.1 |
| Connector material | Phosphor bronze |
| Package width | 20 mm |
| Package height | 10 mm |
| Connector(s) | RJ-45 |
| Connector contacts plating | Nickel/Gold |
| Colour | |
| Product colour | Silver, Yellow |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
