Description

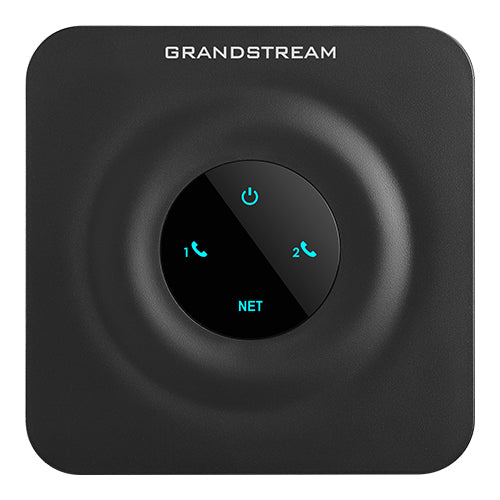

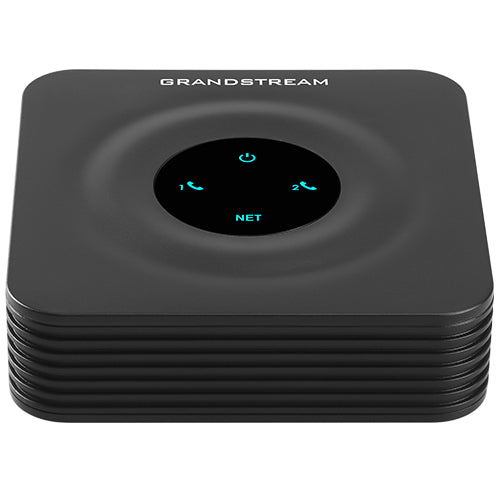

HT802 v2 Easy-to-Use 2-Port ATA
manageable IP telephony solution for residential and office environments. Its ultra-compact size, voice
quality, advanced VoIP functionality, security protection and auto provisioning options enable users to take
advantage of VoIP on analog phones and enables service providers to offer high quality IP service. The
HT802 V2 is an ideal ATA for individual use and for large scale commercial IP voice deployments.
Key Features
- Supports 2 SIP profiles through 2 FXS ports and a single 10/100Mbps port
- TLS and SRTP security encryption technology to protect calls and accounts
- Automated provisioning options include TR-069 and XML config files
- LED indicators - POWER, NET, PHONE1, PHONE2
- Supports 3-way voice conferencing
- Failover SIP server automatically switches to secondary server if main server loses connection
- Supports T.38 Fax for creating Fax-over-IP
- Supports a wide range of caller ID formats
- Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
Description
The HT802 V2 is a 2 port analog telephone adapter (ATA) that allows users to create a high-quality andmanageable IP telephony solution for residential and office environments. Its ultra-compact size, voice
quality, advanced VoIP functionality, security protection and auto provisioning options enable users to take
advantage of VoIP on analog phones and enables service providers to offer high quality IP service. The
HT802 V2 is an ideal ATA for individual use and for large scale commercial IP voice deployments.
Specifications
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Technical details | |
| Voice codecs | CNG, G.711, G.722, G.723.1, G.726-32, G.729ab, OPUS, VAD |
| Reset button | Yes |
| Fax compatibility | T.38 |
| Features | |
| Voice codecs | CNG, G.711, G.722, G.723.1, G.726-32, G.729ab, OPUS, VAD |
| Reset button | Yes |
| Fax compatibility | T.38 |
| Certification | FCC 15B, AS/NZS CISPR22, AS/NZS60950, EN55022, EN55024, EN60950, EN61000-3- 2, EN61000-3-3, UL (Power supply) K.21 |
| Product colour | Black |
| Network | |
| Quality of Service (QoS) support | Yes |
| Call management | |
| Conference call | Yes |
| Caller ID | Yes |
| Call waiting | Yes |
| Protocols | |
| Supported protocols | TCP/IP/UDP, RTP/RTCP (RFC1889, 1890), HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH, Telnet, STUN (RFC3489, 5389), SIP (RFC3261), SIP over TCP/TLS, SRTP, SNMP, TR-069, IMS/3GPP, IPoE |
| Security | |
| Security algorithms | SRTP, SSL/TLS |

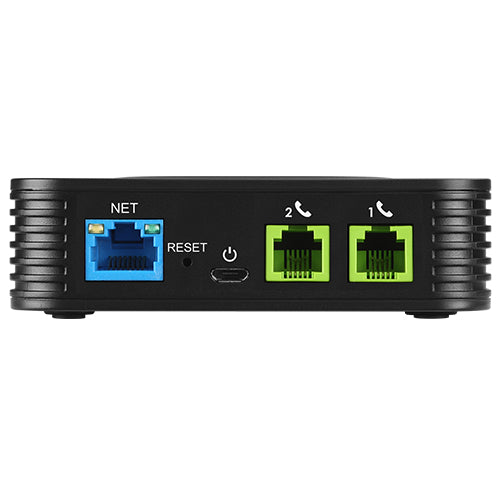

| Ports & interfaces | |
| Modem (RJ-11) ports | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power source type | AC |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Output voltage | 5 V |
| Output current | 1 A |
| Certificates | |
| Certification | FCC 15B, AS/NZS CISPR22, AS/NZS60950, EN55022, EN55024, EN60950, EN61000-3- 2, EN61000-3-3, UL (Power supply) K.21 |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Weight | 114 g |
| Width | 100 mm |
| Depth | 100 mm |
| Height | 29.5 mm |
