Description
17” Touchscreen with 5-wire Resistive Touch Technology
Key Features
- Speakers
- Touch technology - Resistive
- IP54
- VESA
Reasons To Buy
Touch technology - Resistive
5-wire resistive touchscreens are very durable and can be used in a variety of environments. They are especially recommended for shops, restaurants and industrial purposes.IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.Speakers
This LED monitor is equipped with two high quality stereo speakers.VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.Description

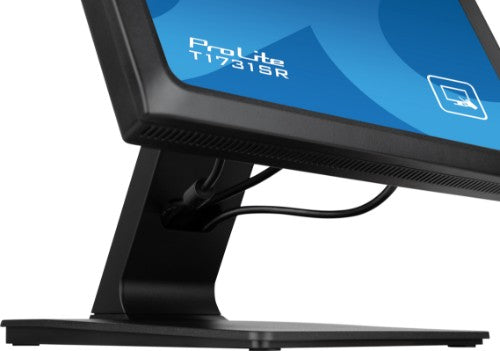

The T1731SR-B1S is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The T1731SR-B1S can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes.Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 250 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 5:4 |
| HD type | SXGA |
| Display technology | LCD |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31.5 - 80 kHz |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27 cm |
| Display resolution | 1280 x 1024 pixels |
| Response time | 5 ms |
| Display diagonal | 43.2 cm (17") |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 1 |
| Panel type | TN |
| Display diagonal (metric) | 43 cm |
| Touch technology | Single-touch |
| Touchscreen technology | Resistive |
| Display brightness | 200 cd/m² |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Built-in camera | No |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Management features | |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Built-in camera | No |
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Detachable stand | No |
| International Protection (IP) code | IP54 |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| USB Touch port | Yes |
| Technical details | |
| Cable lock slot | Yes |
| HDMI | Yes |
| Product colour | Black |
| User controls | contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute |
| Front bezel colour | Black |
| Sustainability certificates | ErP |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 200 cd/m² |
| Power supply type | Internal |
| Active display area (W x H) | 338 x 270 mm |
| Weight (with stand) | 5.4 kg |
| Touch method | stylus, finger, glove |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 1 |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | -5 - 90° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Power | |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.8 W |
| Power consumption (typical) | 20 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 13 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 1552074 |
| Weight & dimensions | |
| Width (with stand) | 387 mm |
| Depth (with stand) | 239.5 mm |
| Height (with stand) | 378 mm |
| Weight (with stand) | 5.4 kg |
| Width | 387 mm |
| Weight | 5.4 kg |
| Height | 378 mm |
| Depth | 239.5 mm |
| Packaging content | |
| Stand included | Yes |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort, Audio |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 1552074 |
| Sustainability certificates | ErP |
| Packaging data | |
| Stand included | Yes |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort, Audio |
| Other features | |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 200 cd/m² |
| Active display area (W x H) | 338 x 270 mm |
| User controls | contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute |
| Touch method | stylus, finger, glove |
| International Protection (IP) code | IP54 |
| Width | 387 mm |
| Weight | 5.4 kg |
| Height | 378 mm |
| Depth | 239.5 mm |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| Quick start guide | Yes |
| HDMI | Yes |
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 1 |
| Front bezel colour | Black |
