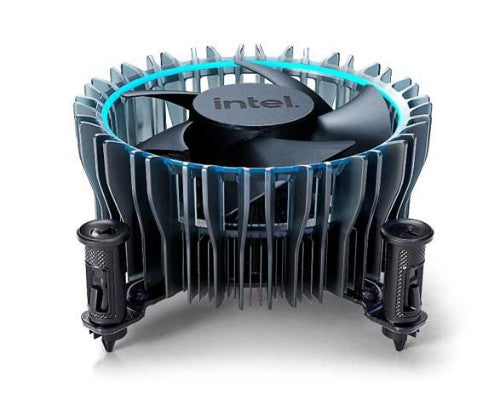

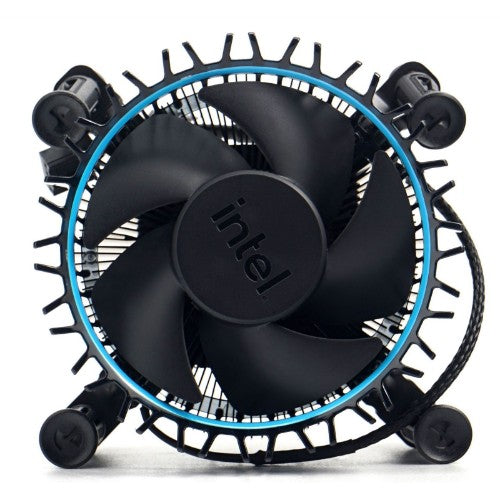

Intel Laminar RM1 Processor Air cooler Black, Blue

600 - 6150 rpm, 4-pin, Aluminum, Copper, LGA 1700

Description

Intel Laminar RM1 Copper Heat Sink Aluminum CPU Cooler with Fan for LGA 1700 CPU

Product
CPU Fan with Aluminium Heatsink

Socket Compatibility
Intel: LGA 1700

TDP Wattage
65w

Connections
4-pin Fan Connector

Fan Diameter
80mm

Maximum Fan Speed
2500RPM

Voltage
12V

Fan Bearing Type
Ball

Packaging
OEM Brown Box

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	600 RPM
Rotational speed (max)	3150 RPM
Thermal Design Power (TDP)	65 W
Noise level (high speed)	29 dB
Type	Air cooler
Operating temperature (T-T)	0 - 70 °C
Supported processor sockets	LGA 1700
Compatible processor series	Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Number of fans	1 fan(s)
Number of fan blades	5
Design
Fan connector	4-pin
Number of fans	1 fan(s)
Product colour	Black, Blue
Illumination LED	No
Number of fan blades	5
Radiator material	Aluminum
Base plate material	Copper
Technical details
Thermal Design Power (TDP)	65 W
Noise level (high speed)	29 dB
Type	Air cooler
Supported processor sockets	LGA 1700
Compatible processor series	Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Number of fans	1 fan(s)
Fan connector	4-pin
Illumination LED	No
Ports & interfaces
Fan connector	4-pin
Power
Rated voltage	12 V
Starting voltage	10.8 V
Thermal Design Power (TDP)	65 W
Voltage	10.8 - 13.2 V
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Colour
Product colour	Black, Blue
Weight & dimensions
Width	100 mm
Depth	100 mm
Height	47 mm
Weight	350 g
Other features
Harmonized System (HS) code	84733080
Logistics data
Harmonized System (HS) code	84733080
