Description

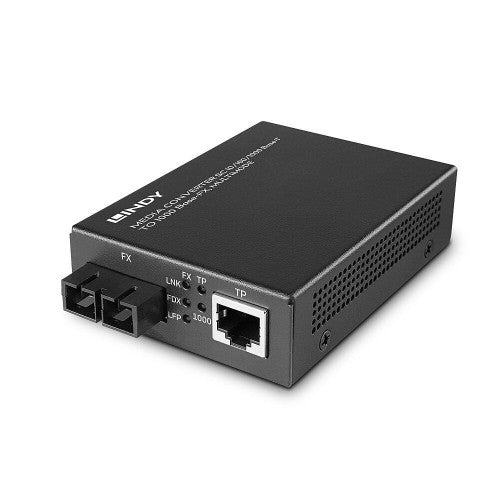

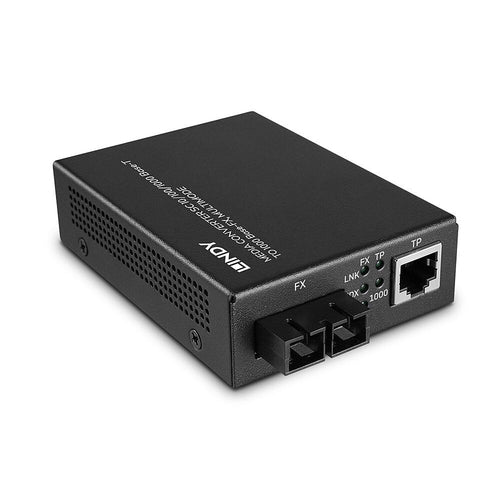

Media Converter SC 10/100/1000 Base-T to 1000 Base-FX, Multimode

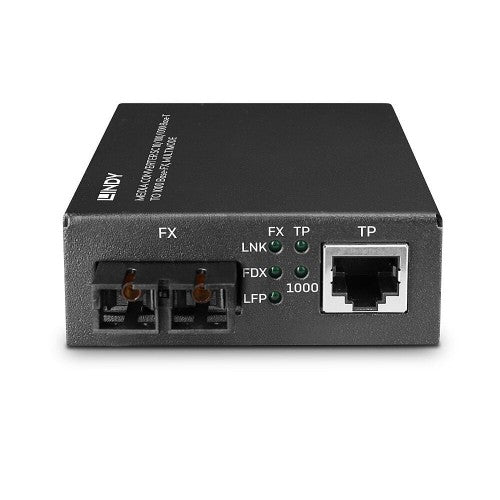

The Media Converter can operate with 100 or 1000Mbps network speed, it also provides status LEDs to indicate data link, speed, Full/Half Duplex and link failure. Supports IEEE 802.3 standard and Jumbo frames up to 9K.
Key Features
- 10/100/1000 Base-T copper to 1000 Base-FX fiber
- Support SC Multimode fiber optic 50/125 or 62.5/125 cables
- Extend fiber distance up to 550m
- Support Full/Half duplex mode and auto-negotiation
Description
This Lindy Media Converter extends the connection between two network devices at distances up to 550m using multimode fibre optic cables. The installation is plug-and-play and the user only has to connect to the RJ45 port with a Cat.5e or above Ethernet cable and the fibre port with a SC Multimode 50/125 or 62.5/125 Duplex fibre optic cable. No configuration needed, easily integrated into any existing Ethernet network and supports Full/Half duplex mode and auto-negotiation on both ports.The Media Converter can operate with 100 or 1000Mbps network speed, it also provides status LEDs to indicate data link, speed, Full/Half Duplex and link failure. Supports IEEE 802.3 standard and Jumbo frames up to 9K.
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Duplex system | Full, Half |
| Fiber optic connector | SC |
| Performance | |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Features | |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SC |
| Power | |

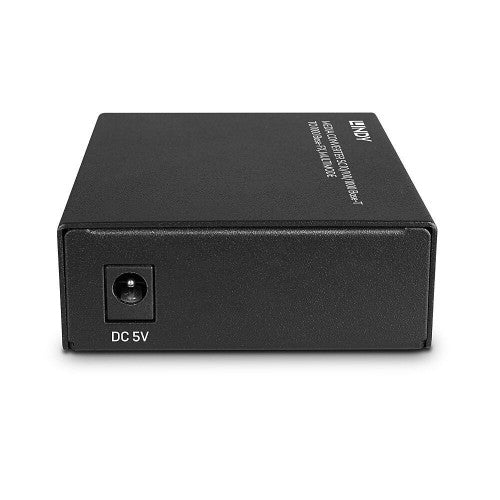

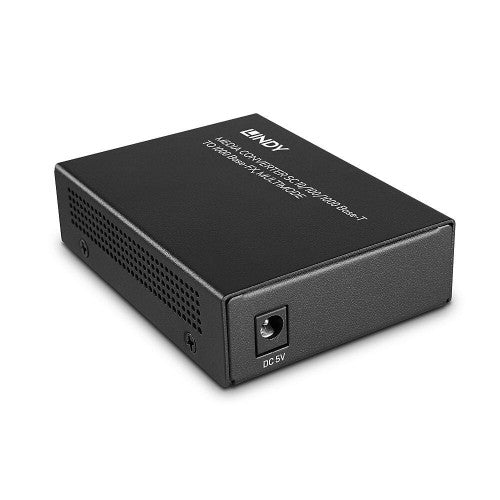

| Output voltage | 5 V |
| Output current | 1 A |
| Weight & dimensions | |
| Width | 95 mm |
| Depth | 70 mm |
| Weight | 540 g |
| Height | 25 mm |
| Package depth | 155 mm |
| Package width | 165 mm |
| Package height | 45 mm |
| Package weight | 650 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package depth | 155 mm |
| Package width | 165 mm |
| Package height | 45 mm |
| Package weight | 650 g |
| Technical details | |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Internal | No |
| Indication | |
| LED indicators | Yes |
| Design | |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
| Internal | No |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
