Description

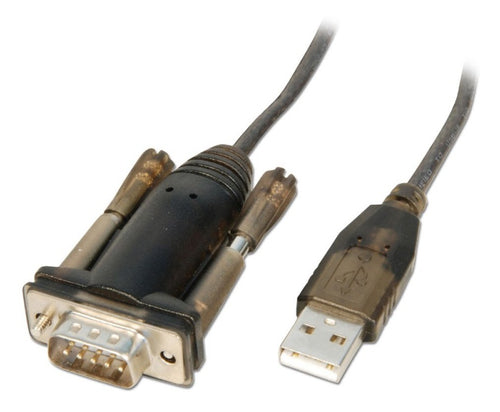

USB to Serial Converter Lite
With both USB Type A and serial connectors, this device is a perfect solution for connecting legacy RS232 equipment such as barcode scanners and industrial devices to notebooks and Macbooks, in retail and IT scenarios.
This converter is compatible with both Windows and Mac operating systems and as it is USB bus-powered, it can be installed quickly and simply with no need for additional power supplies.
Key Features
- Connects to any standard serial device via USB Type A
- 9 Way D Male to USB A Male connectors
- Plug and Play - USB bus-powered with no external power supply required
- Compatible with Windows and Mac Operating Systems
Description

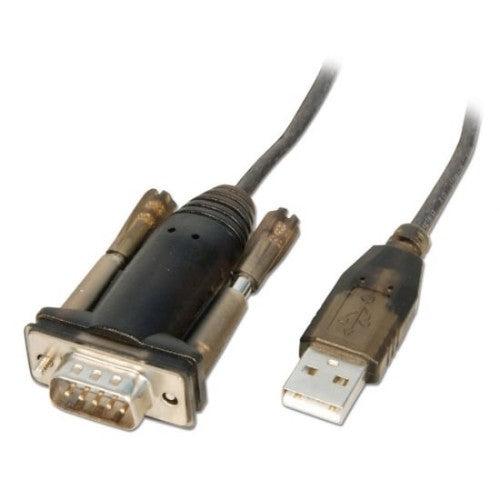

The Lindy USB to Serial Converter Lite allows the user to easily connect peripheral devices featuring 9 Way Serial RS232 to a USB Type A port.With both USB Type A and serial connectors, this device is a perfect solution for connecting legacy RS232 equipment such as barcode scanners and industrial devices to notebooks and Macbooks, in retail and IT scenarios.
This converter is compatible with both Windows and Mac operating systems and as it is USB bus-powered, it can be installed quickly and simply with no need for additional power supplies.
Specifications
| Technical details | |
|---|---|
| Weight | 70 g |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Compatible products | USB Type A equipped computers |
| Connector 2 | RS-232 |
| Connector 1 | USB Type-A |
| Product colour | Grey, Transparent |
| Cable length | 1.5 m |
| Package width | 174 mm |
| Quantity per pack | 1 pc(s) |
| Features | |
| Weight | 70 g |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Compatible products | USB Type A equipped computers |
| Connector 2 | RS-232 |
| Connector 1 | USB Type-A |
| Product colour | Grey, Transparent |
| Cable length | 1.5 m |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector housing material | Plastic |
| Bandwidth | 128 Kbit/s |
| Bandwidth | 12 MB/s |
| Chipset | PL2303RA |
| Packaging data | |
| Package weight | 129 g |
| Package depth | 194 mm |
| Package width | 174 mm |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Weight & dimensions | |
| Weight | 70 g |
| Connector 2 dimensions (WxDxH) | 33 x 60 x 16 mm |
| Connector 1 dimensions (WxDxH) | 15 x 48 x 7 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Export Control Classification Number (ECCN) | EAR99 |
