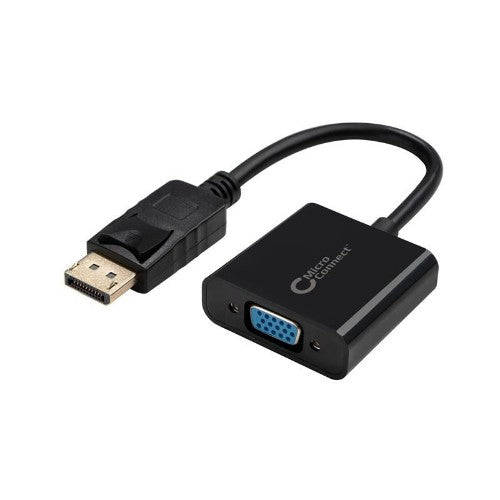

Active Displayport 1.2 to VGA Adapter
Key Features
- Max resolution: Full HD 1920*1080p@60Hz
- Displayport to VGA
- Cable Length 15 cm
- Active
- Don´t support audio
- Plug and play: With full support for plug-and-play installation, this PC video adapter is easy to setup with no software, drivers etc.
- Plug with lock for secure connections
- Support DP 1.2, downward compatible with 1.1
Description
This MicroConnect Displayport to VGA adapter allows you to display content from a device with Displayport output to a monitor/Projector with a VGA input.
Specifications
| Features |
|---|
| Converter type |
Active video converter |
| Chipset |
ANX9832 |
| DisplayPort version |
1.2 |
| Product colour |
Black |
| Cable length |
0.15 m |
| Connector 1 |
DisplayPort |
| Connector 2 |
VGA (D-Sub) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Connector contacts plating |
Gold |
| Cable material |
Copper |
| Jacket material |
Polyvinyl chloride (PVC) |
| AWG wire size |
32 |
| 3D |
Yes |
| Maximum resolution |
1920 x 1080 pixels |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| HDCP |
Yes |
| Maximum refresh rate |
60 Hz |
| HDCP version |
1.2 |
| Weight & dimensions |
|---|
| Cable diameter |
4.8 mm |
| Weight |
38 g |
| Package width |
198 mm |
| Package depth |
175 mm |
| Package height |
32 mm |
| Package weight |
48 g |
| Packaging data |
|---|
| Package width |
198 mm |
| Package depth |
175 mm |
| Package height |
32 mm |
| Package weight |
48 g |
| Other features |
|---|
| Length |
150 mm |
