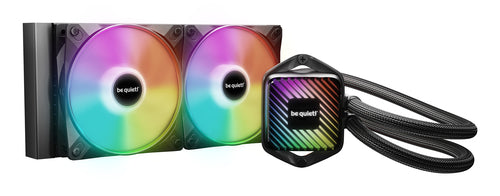

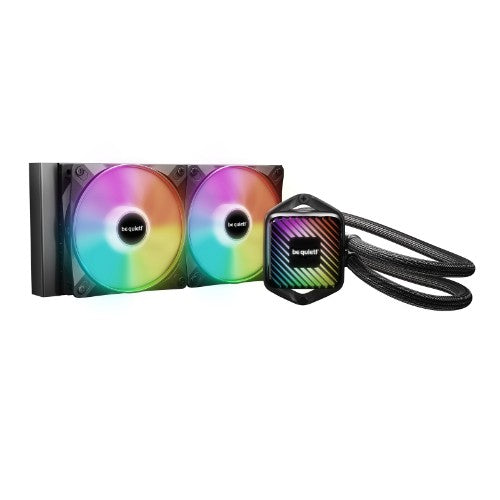

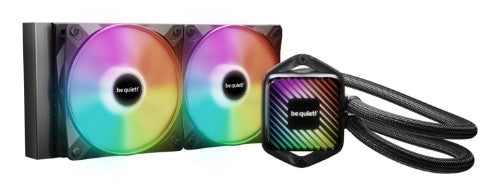

be quiet! PURE LOOP 3 LX, All-in-one liquid cooler, 12 cm, 105.1 m³/h, Black
Description
be quiet! PURE LOOP 3 LX. Type: All-in-one liquid cooler, Fan diameter: 12 cm, Airflow: 105.1 m³/h, Maximum air pressure: 2.51 mmH2O. Height: 52 mm. Product colour: BlackSpecifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Pulse-width modulation (PWM) support | Yes |
| Noise level (low speed) | 15.5 dB |
| Noise level (high speed) | 35 dB |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Compatible processor series | AMD Ryzen 9000 Series, Intel® Core™ i9 |
| Maximum airflow | 61.8 cfm |
| Maximum air pressure | 2.51 mmH2O |
| Airflow | 105.1 m³/h |
| Number of fans | 2 fan(s) |
| Quantity per pack | 1 pc(s) |
| Number of fan blades | 9 |
| Pump connector | 4-pin |
| Pump motor speed (min) | 3000 RPM |
| Pump motor speed (max) | 5500 RPM |
| Pump motor speed | 5500 RPM |
| Fan speed (max) | 2100 RPM |
| Fan's mean time to failure (MTTF) | 60000 h |
| Design | |
| Number of fans | 2 fan(s) |
| Illumination colour | Multi |
| Product colour | Black |
| Illumination LED | Yes |
| Number of fan blades | 9 |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Daisy chain | Yes |
| Technical details | |
| Noise level (low speed) | 15.5 dB |
| Noise level (high speed) | 35 dB |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Compatible processor series | AMD Ryzen 9000 Series, Intel® Core™ i9 |
| Maximum airflow | 61.8 cfm |
| Maximum air pressure | 2.51 mmH2O |
| Airflow | 105.1 m³/h |
| Number of fans | 2 fan(s) |
| Illumination LED | Yes |
| Sustainability certificates | Triman |
| Doesn't contain | Cadmium, Lead, Mercury |
| Warranty period | 3 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Ports & interfaces | |
| Pump connector | 4-pin |
| Power | |
| Fan power consumption | 5.4 W |
| Fan voltage | 12 V |
| Fan current | 0.17 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Package depth | 321 mm |
| Package width | 240 mm |
| Package height | 140 mm |
| Package weight | 1.75 kg |
| Height | 52 mm |
| Weight | 1.05 kg |
| Radiator width | 12 cm |
| Radiator depth | 27.7 cm |
| Radiator height | 2.7 cm |
| Tube length | 40 cm |
| Waterblock width | 9.34 cm |
| Waterblock depth | 6.85 cm |
| Waterblock height | 4.87 cm |
| Packaging data | |
| Package depth | 321 mm |
| Package width | 240 mm |
| Package height | 140 mm |
| Package weight | 1.75 kg |
| Package type | Box |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Indication | |
| Illumination colour | Multi |
| Certification | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |

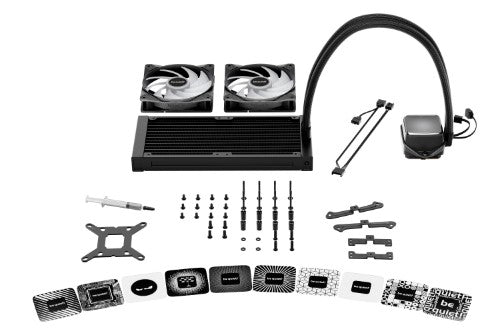

| Packaging content | |
| Package type | Box |
| Mounting kit | Yes |
| Thermal grease | Yes |
| Manual | Yes |
| Other features | |
| Pump connector | 4-pin |
| Thermal grease | Yes |
