Description
4K 8MP 3840 x 2160 (16:9), 1/1.2" CMOS, 2.36x Optical zoom, Quad core Arm Cortex-A53 based chip, Multi-TOPS AI engine, IP66, IK04, MicroSD card, IR LED illumination and IR cut filter
Description
All-weather 4K PoE+ camera with a Multi-TOPS AI engine, 2.36x optical zoom, and a large 1/1.2" CMOS sensor for exceptional low-light clarity and long-range IR night vision.Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Processor model | ARM Cortex-A53 |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Day/night mode | Yes |
| Built-in processor | Yes |
| Design | |
| Weatherproof | Yes |
| IK code | IK04 |
| Form factor | Bullet |
| Product colour | White |

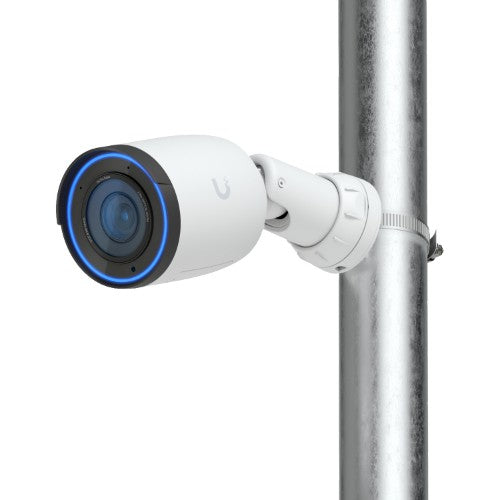

| Mounting type | Ceiling/Wall/Pole |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Camera | |
| Lens viewing angle, horizontal | 45.5, 113.8° |
| Lens viewing angle, vertical | 25.8 , 61.9° |
| Lens viewing angle, diagonal | 52, 134° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.2 mm (1 / 1.2") |
| Lens system | |
| Maximum aperture number | 2.9 |
| Minimum aperture number | 1.5 |
| Zoom capability | Yes |
| Optical zoom | 2.36x |
| Focal length range | 5.9 - 13.8 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR |
| Video | |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Colour depth, Contrast, HDR, Sharpness |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Maximum resolution | 3840 x 2160 pixels |
| Frame rate | 30 fps |
| Total megapixels | 8 MP |
| Audio | |
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Audio system | 2-way |
| Number of microphones | 2 |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Light sensor | Yes |
| Human and vehicle targets classification | Yes |
| Management features | |
| Reset button | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 15 W |
| DC output voltage | 37, 42.5, 48, 54, 57 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Length | 210 mm |
| Diameter | 8.58 cm |
| Weight | 755 g |
| Features | |
| License plate recognition | Yes |
| Sustainability | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Packaging content | |
| Number of cameras | 1 |
| Screws included | Yes |
| Mounting kit | Yes |
| Manual | Yes |
| Technical details | |
| Night mode | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
