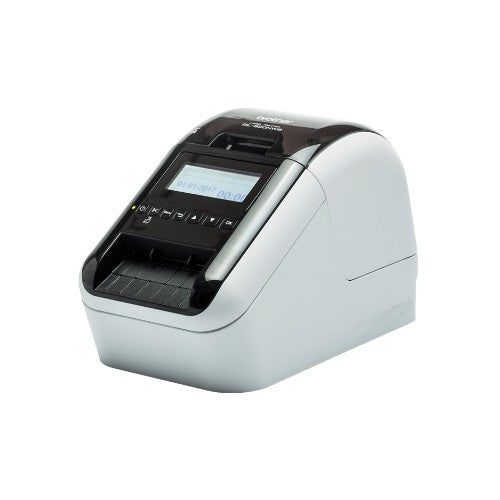

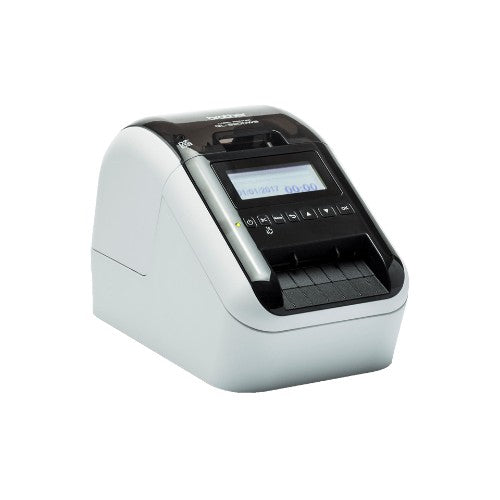

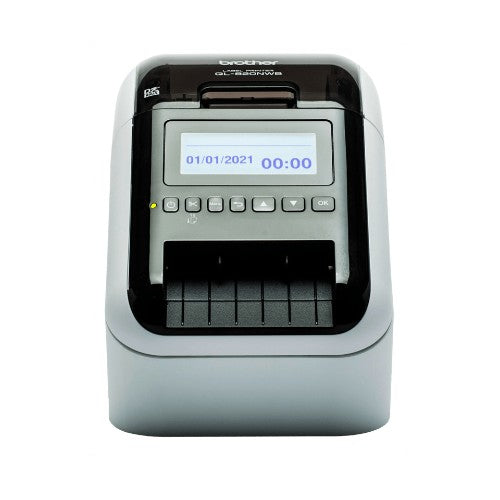

Brother QL-820NWBVMXX1 label printer Direct thermal Colour 300 x 600 DPI 176 mm/sec Wired & Wireless Ethernet LAN DK Wi-Fi Bluetooth

Direct Thermal, 300 x 600dpi, 176 mm/s, WLAN, LAN, Bluetooth, USB

Description

Professional label printer with Wi-Fi, Ethernet network and Bluetooth

Specifications

Print quality
Vertical printing	Yes
Maximum resolution	300 x 600 DPI
Maximum printing width	6.2 cm
Maximum print height	6.1 cm
Printing
Date & time printing	Yes
Minimum print length	100 cm
Text alignment	Center, Justify, Left, Right
Colour	Yes
Vertical printing	Yes
Printing colours	Black, Red
Print speed	110 lpm
Print speed	176 mm/sec
Maximum resolution	300 x 600 DPI
Maximum printing width	6.2 cm
Maximum print height	6.1 cm
Print technology	Direct thermal
Display
Backlight display	Yes
Display	LCD
Network
Wi-Fi	Yes
Ethernet LAN	Yes
Memory
Memory capacity	255 characters
Flash memory	6 MB
Paper handling
Maximum label width	6.2 cm
Autocutter	Yes
Ports & interfaces
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth profiles	BIP, HCRP, OPP, SPP
Wi-Fi Direct	Yes
Mobile printing technologies	Apple AirPrint
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Bluetooth version	2.0+EDR
Bluetooth	Yes
Wi-Fi	Yes
Ethernet LAN	Yes
USB port	Yes
Performance
Languages support	Multi
Number of languages	18
Tape type	DK
Number of styles	8
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Code-39 Library, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1-128, ISBN-2, ISBN-5, ITF, ITF-25, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts	5
Security algorithms	EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, LEAP, PEAP, WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP
Flash memory	6 MB
Page description languages	ESC P, Raster_P
Typestyles supported	Bold, Italics
Bitmap fonts	Gothic
Design
Backlight display	Yes
Display	LCD
Product colour	Black, White
Control type	Buttons
Built-in display	Yes
Power
Number of batteries supported	1
Rechargeable	Yes
Battery type	Built-in battery
Battery technology	Lithium-Ion (Li-Ion)
Auto power off	Yes
System requirements
Compatibility	Apple iPhone SE Apple iPhone 6s Plus Apple iPhone 6s Apple iPhone 6 Puls Apple iPhone 6 Apple iPhone 5s Apple iPhone 5c Apple iPhone 5 Apple iPhone 4s Apple iPad Pro (12.9-inch) Apple iPad Air2 Apple iPad Air Apple iPad mini 4 Apple iPad mini 3 Apple iPad mini 2 Apple iPad mini Apple iPad (4th generation) Apple iPad (3rd generation) Apple iPad2 Apple iPod touch (6th generation) Apple iPod touch (5th generation)
Linux operating systems supported	Yes
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Technical details
Windows operating systems supported	Yes
Warranty card	Yes
Mac operating systems supported	Yes
Number of frames	126
Product colour	Black, White
Tape type	DK
Number of styles	8
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Code-39 Library, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1-128, ISBN-2, ISBN-5, ITF, ITF-25, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts	5
Networking features	10/100 Base-TX
Maximum label width	6.2 cm
Country of origin	China
Products per pallet	72 pc(s)
Layers per pallet	6 pc(s)
Master (outer) cases per pallet	24 pc(s)
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210
Pallet type	1200 x 1000 mm
Security
Security algorithms	EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, LEAP, PEAP, WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP
Software
Drivers included	Yes
Bundled software	P-touch Editor 5, P-touch Editor Lite LAN, P-touch Address Book, BR Admin Light
Battery
Number of batteries supported	1
Battery type	Built-in battery
Battery technology	Lithium-Ion (Li-Ion)
Rechargeable battery	Yes
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Weight & dimensions
Package width	298 mm
Package depth	184 mm
Package height	232 mm
Width	185 mm
Depth	300 mm
Height	230 mm
Weight	2.25 kg
Package weight	2.67 kg
Packaging data
Package width	298 mm
Package depth	184 mm
Package height	232 mm
Package weight	2.67 kg
Packaging content
Manual	Yes
AC adapter included	Yes
Warranty card	Yes
Quick start guide	Yes
Cables included	AC, USB
Drivers included	Yes
Bundled software	P-touch Editor 5, P-touch Editor Lite LAN, P-touch Address Book, BR Admin Light
Batteries included	Yes
Other features
Products per pallet	72 pc(s)
Layers per pallet	6 pc(s)
Master (outer) cases per pallet	24 pc(s)
Date & time printing	Yes
Languages support	Multi
Number of languages	18
Number of frames	126
Networking features	10/100 Base-TX
Memory capacity	255 characters
Country of origin	China
Compatibility	Apple iPhone SE Apple iPhone 6s Plus Apple iPhone 6s Apple iPhone 6 Puls Apple iPhone 6 Apple iPhone 5s Apple iPhone 5c Apple iPhone 5 Apple iPhone 4s Apple iPad Pro (12.9-inch) Apple iPad Air2 Apple iPad Air Apple iPad mini 4 Apple iPad mini 3 Apple iPad mini 2 Apple iPad mini Apple iPad (4th generation) Apple iPad (3rd generation) Apple iPad2 Apple iPod touch (6th generation) Apple iPod touch (5th generation)
Spare part retention	5 year(s)
Logistics data
Pallet gross height	15 cm
Master (outer) cases per pallet layer	4 pc(s)
Pallet gross weight	275.5 kg
Products per pallet	72 pc(s)
Layers per pallet	6 pc(s)
Master (outer) cases per pallet	24 pc(s)
Harmonized System (HS) code	84433210
