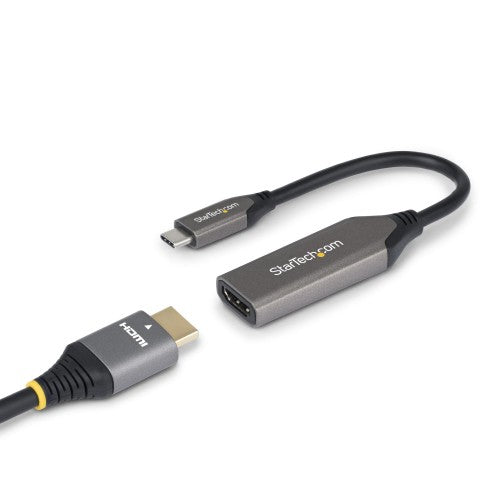

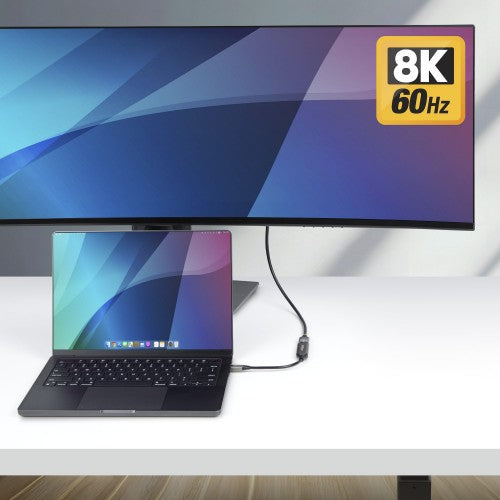

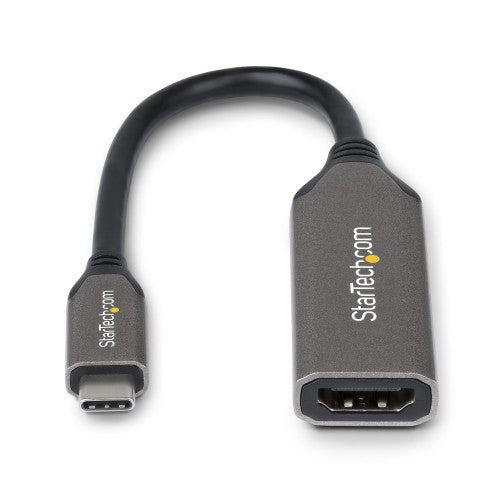

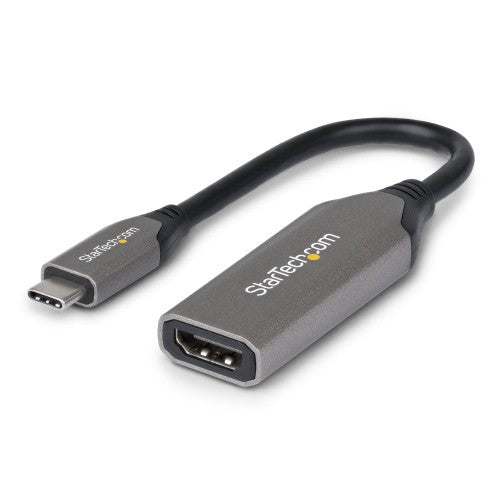

StarTech.com 112B-USBC-HDMI21, 0.2 m, USB Type-C, HDMI Type A (Standard), Male, Female, Straight
Description
StarTech.com 112B-USBC-HDMI21. Cable length: 0.2 m, Connector 1: USB Type-C, Connector 2: HDMI Type A (Standard). Compliance certificates: Federal Communications Commission (FCC), RoHS. Weight: 22.5 g, Width: 16.3 mm, Depth: 200 mm. Package depth: 120 mm, Package height: 220 mm, Package weight: 10 g. Quantity per pack: 1 pc(s)
Specifications
| Features |
|---|
| Chipset |
VIA - VL103, Parade - PS196 |
| HDMI version |
2.1 |
| Product colour |
Grey |
| Cable length |
0.2 m |
| Connector 1 |
USB Type-C |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Connector contacts plating |
Nickel |
| Jacket material |
Polyvinyl chloride (PVC) |

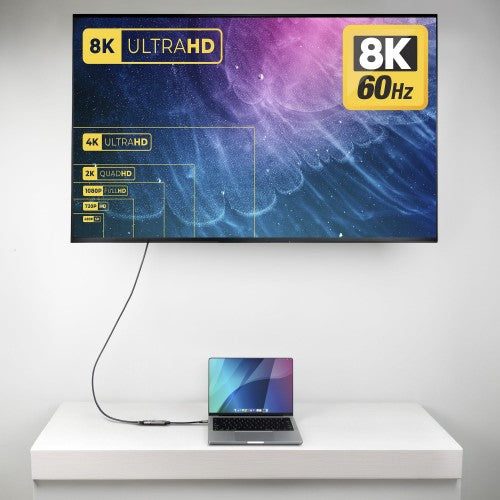

| Maximum resolution |
7680 x 4320 pixels |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1080, 2560 x 1440, 3440 x 1440, 3840 x 2160, 4096 x 2160, 5120 x 1440, 7680 x 4320 |
| HDCP |
Yes |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
144 Hz |
| HDCP version |
2.3 |
| High Dynamic Range (HDR) supported |
Yes |
| Supported audio channels |
7.1 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Certificates |
|---|
| Compliance certificates |
Federal Communications Commission (FCC), RoHS |
| Other features |
|---|
| Width |
16.3 mm |
| Height |
5 mm |
| Depth |
200 mm |
| Weight & dimensions |
|---|
| Width |
16.3 mm |
| Height |
5 mm |
| Depth |
200 mm |
| Weight |
22.5 g |
| Package depth |
120 mm |
| Package height |
220 mm |
| Package weight |
10 g |
| Packaging data |
|---|
| Package depth |
120 mm |
| Package height |
220 mm |
| Package weight |
10 g |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Compliance certificates |
Federal Communications Commission (FCC), RoHS |
