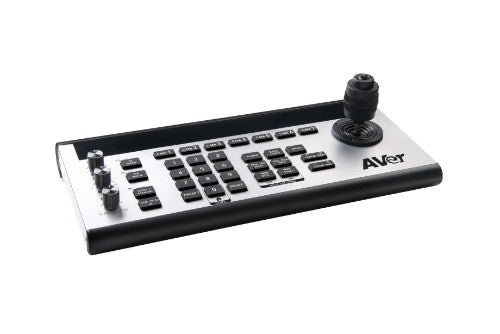

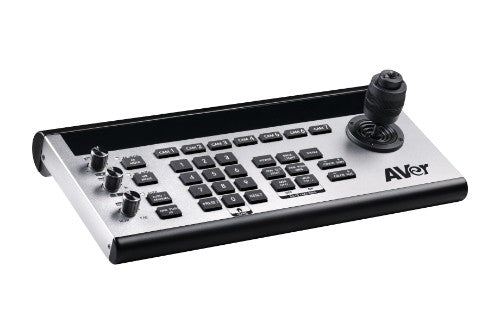

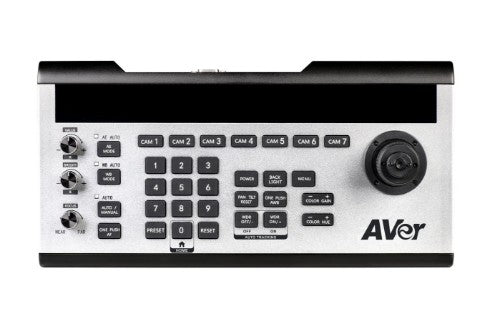

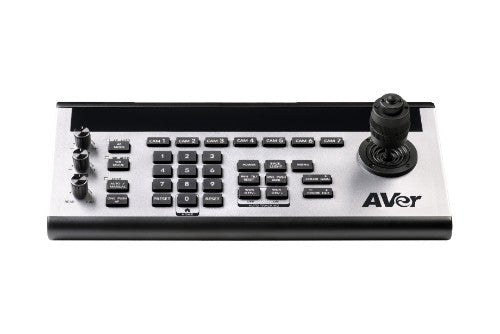

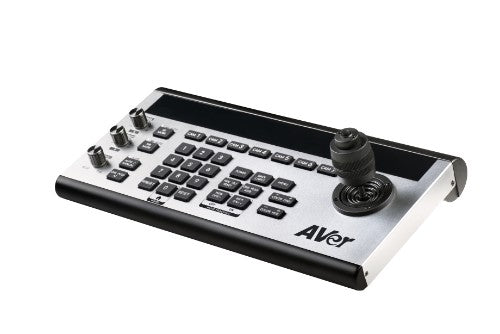

AVer CL01

RS-485/RS-422/RS-232, IP, Micro USB, 38400 bps Baud max, OLED, 2.5 kg

Key Features

• Pan/Tilt/Zoom Speed Control
• Control 255 PTZ Cameras
• Multiple Control Interfaces
• VISCA/Pelco-D/P

Description

The ideal solution for education, conferencing, telemedicine, livestreaming & broadcasting!

PTZ Camera Controller
The AVer CL01 is a professional PTZ camera controller with a robust communication interface, built-in VISCA and Pelco-D/P protocols. It supports RS-422 / RS-485 / RS-232 / IP control for compatibility with most PTZ cameras. Simple configuration makes it easy to operate the 7 camera shortcut channels, 3 infinite rotation knobs, and more.

Specifications

Performance
Maximum number of cameras supported	7
Display
Built-in display	Yes
Display type	OLED
Design
Product colour	Black, Silver
Control type	Buttons, Joystick, Rotary
Network
Ethernet LAN	Yes
Features
Baud rates	384000 Bd
Firmware upgradeable	Yes
Logistics data
Products per master (outer) case	1 pc(s)
Country of origin	China

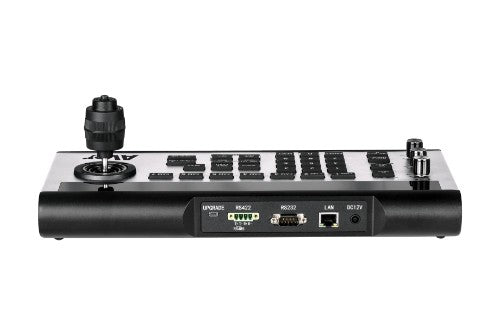

Ports & interfaces
RS-232 ports	1
DC-in jack	Yes
RJ-45 ports quantity	1
Micro-USB ports quantity	1
RS-422/485 ports	1
Power
Power source type	DC
Power consumption (max)	24 W
DC input voltage	12 V
Input current (max)	2 A
Weight & dimensions
Width	350 mm
Depth	180 mm
Height	130 mm
Weight	2.45 kg
Packaging data
Package width	210 mm
Package depth	175 mm
Package height	385 mm
Package weight	2.82 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Packaging content
Cables included	RS-485
AC adapter included	Yes
Manual	Yes
