Description

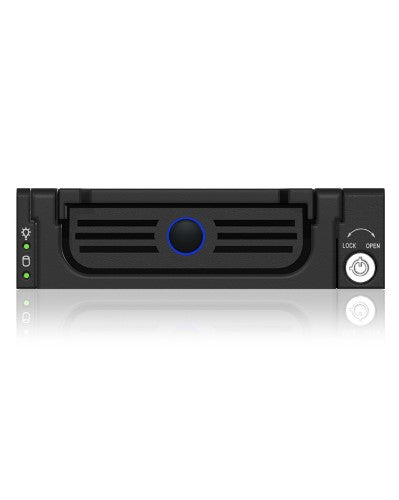

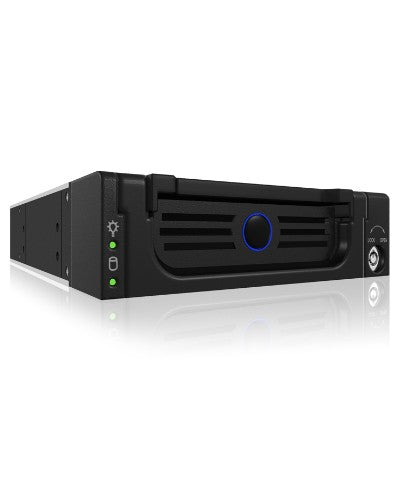

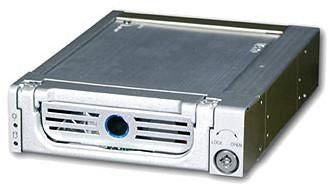

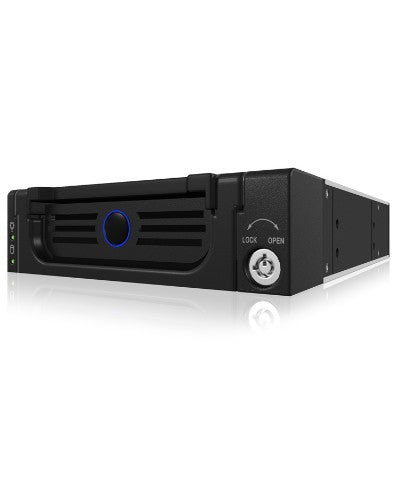

Mobile rack for 1x HDD/SSD for 1x 5.25" bay with lock and LED ring
That the carrier can be disconnected from the mobile rack, that is nothing new. But making the carrier hermetic so it is safe for transport is. The fan is not installed as usually on the platine, but it is installed on the front of the carrier, this way the air circulation is better.
Not only a lock
What seems like a normal lock is much more than that. as long as the lock is not closed, no power will come to the HDD. In this way it is impossible to forget locking the media.
All good things are three
The IB-138 is available in three different colors: Beige, black and silver. It supports three SATA versions (I/II/III) with up to 6 Gbit/s transfer rates and three LED indicators to inform regarding HDD access, power and deco-LED (Blue-eye). Finally primarily 3.5" HDDs belong in the slot.
Key Features
- SATA to SATA interface
- Plug & Play and Hot Swap
- 2x Power connector (4pin and 15pin)
- Compact construction (188 mm deep)
- Antidust panel
- All aluminium material
- Front cooling fan
- Keylock as power switch
- "Blue Eye"–design
- LED for power on and HDD access (Device Activity Signal)
- Black, silver or beige
Description
Innovative designThat the carrier can be disconnected from the mobile rack, that is nothing new. But making the carrier hermetic so it is safe for transport is. The fan is not installed as usually on the platine, but it is installed on the front of the carrier, this way the air circulation is better.
Not only a lock
What seems like a normal lock is much more than that. as long as the lock is not closed, no power will come to the HDD. In this way it is impossible to forget locking the media.
All good things are three
The IB-138 is available in three different colors: Beige, black and silver. It supports three SATA versions (I/II/III) with up to 6 Gbit/s transfer rates and three LED indicators to inform regarding HDD access, power and deco-LED (Blue-eye). Finally primarily 3.5" HDDs belong in the slot.
Specifications
| Features | |
|---|---|
| Country of origin | China |
| LED indicators | HDD, Power |
| HDD size | 2.5" |
| Hot-swap | Yes |
| Type | Carrier panel |
| Number of HDDs supported | 1 |
| Number of fans | 1 fan(s) |
| HDD interface | SATA |
| Fan diameter | 4 cm |
| Data transfer rate | 6 Gbit/s |
| Product colour | Black |
| Material | Aluminium |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Country of origin | China |
| LED indicators | HDD, Power |
| HDD size | 2.5" |
| Hot-swap | Yes |
| Type | Carrier panel |
| Number of HDDs supported | 1 |
| Number of fans | 1 fan(s) |
| HDD interface | SATA |
| Fan diameter | 4 cm |
| Data transfer rate | 6 Gbit/s |
| Product colour | Black |
| Material | Aluminium |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 420 mm |
| Master (outer) case gross weight | 18 kg |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 265 mm |
| Package width | 155 mm |
| Package height | 195 mm |
| Package depth | 45 mm |
| Harmonized System (HS) code | 84733080 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Card reader integrated | No |
| External SATA ports quantity | 2 |
| Storage | |
| Card reader integrated | No |
| Weight & dimensions | |
| Width | 146 mm |
| Weight | 800 g |
| Height | 42 mm |
| Depth | 188 mm |
| Packaging data | |
| Package weight | 850 g |
| Package width | 155 mm |
| Package height | 195 mm |
| Package depth | 45 mm |
| Packaging content | |
| Number of lock keys included | 2 pc(s) |
| Number of screws | 12 |
| Cables included | SATA |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Country of origin | China |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 420 mm |
| Master (outer) case gross weight | 18 kg |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 265 mm |
| Harmonized System (HS) code | 84733080 |
