10.1” PCAP 10pt touchscreen PC with Android, PoE Technology and iiSignage²
Reasons To Buy
Connectivity
The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
Build-in webcam, microphone and speakers
Making the screen a perfect solution for semi or fully automated reception solutions allowing businesses to track and manage visitor traffic at the front desk lobby without compromising on the safety and security of your staff, visitors and company assets.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
Description

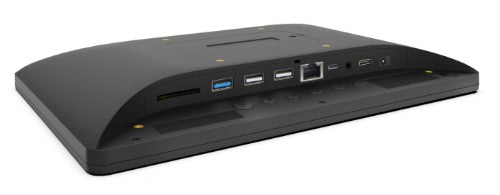

The ProLite TW1023AS-B3P is a smart and intuitive 10.1" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 13, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in camera, microphone and speakers, the TW1023AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.
Specifications
| Display |
|---|
| Panel type |
IPS |
| Display number of colours |
16.7 million colours |
| Number of simultaneous touchpoints |
10 |
| Touchscreen |
Yes |
| Active display area (W x H) |
216.6 x 135.4 mm |
| Display diagonal |
25.6 cm (10.1") |
| Display resolution |
1280 x 800 pixels |
| Display brightness |
385 cd/m² |
| HD type |
HD |
| Response time |
25 ms |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
160° |
| Viewing angle, vertical |
160° |
| Pixel pitch |
0.1692 x 0.1692 mm |
| Display diagonal (metric) |
25.5 cm |
| Native aspect ratio |
16:10 |
| Colour depth |
8 bit |
| Touchscreen technology |
Projected capacitive system |
| Surface hardness |
6H |
| Multi-touch |
Yes |
| Glass thickness |
1.25 mm |
| Ports & interfaces |
|---|
| USB connector type |
Micro-USB, USB Type-A |
| USB port |
Yes |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Wi-Fi |
Yes |
| PC Audio in |
Yes |
| DisplayPorts quantity |
0 |
| DC-in jack |
Yes |
| Compatible memory cards |
SD |
| Card reader integrated |
Yes |
| Ethernet LAN |
Yes |
| DVI port |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity |
4 |
| Micro-USB ports quantity |
1 |
| HDMI input ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Mini HDMI ports quantity |
1 |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
3 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Kiosk design |
| Orientation |
Horizontal/Vertical |
| Product colour |
Black |
| Certification |
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| VESA mounting |
Yes |
| Fingerprint resistant |
Yes |
| Bezel colour |
Black |
| Performance |
|---|
| Purpose |
Universal |
| Operating hours (hours/days) |
24/7 |
| Number of microphones |
1 |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (off) |
0.3 W |
| Power consumption (typical) |
18 W |
| Power consumption (standby) |
0.5 W |
| Input voltage |
12 V |
| Computer system |
|---|
| Processor cores |
4 |
| Processor family |
ARM Rockchip |
| Processor model |
RK3568 |
| Processor frequency |
2 GHz |
| Operating system installed |
Android |
| Internal memory |
4 GB |
| Internal storage capacity |
32 GB |
| Processor manufacturer |
Rockchip |
| Built-in processor |
Yes |
| Google applications |
Google Chrome, Gmail, Google Calendar |
| On-board graphics card model |
Mali-G52 MC1 |
| Operating system version |
13 |
| Weight & dimensions |
|---|
| Width |
255 mm |
| Depth |
30.5 mm |
| Height |
172 mm |
| Weight |
800 g |
| Display width |
255 mm |
| Display depth |
30.5 mm |
| Display height |
172 mm |
| Display weight |
800 g |
| Packaging data |
|---|
| Package width |
398 mm |
| Package depth |
68 mm |
| Package height |
223 mm |
| Package weight |
1.36 kg |
| Quick start guide |
Yes |
| Cables included |
AC |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC |
| Power adapter included |
Yes |
| Certificates |
|---|
| Certification |
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Technical details |
|---|
| VESA mounting |
Yes |
| USB connector type |
Micro-USB, USB Type-A |
| Power supply type |
External |
| Panel type |
IPS |
| Cable management |
Yes |
| Brightness |
385 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Audio in (mini jack) |
Yes |
| User controls |
Power, home, brightness +, brightness -, volume +, volume - |
| Internal memory |
32000 MB |
| Sustainability certificates |
ErP |
| Compliance certificates |
CE, EAC, REACH, RoHS, UKCA, WEEE |
| Network |
|---|
| Wi-Fi standards |
Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Thin Client |
|---|
| Processor family |
ARM Rockchip |
| Processor model |
RK3568 |
| Processor frequency |
2 GHz |
| Operating system installed |
Android |
| Internal memory |
4 GB |
| Internal storage capacity |
32 GB |
| Logistics data |
|---|
| Products per pallet |
256 pc(s) |
| Pallet gross width |
2.15 m |
| Pallet gross length |
100 cm |
| Pallet gross height |
120 cm |
| Features |
|---|
| Suitable for indoor use |
Yes |
| Other features |
|---|
| USB connector type |
Micro-USB, USB Type-A |
| Power supply type |
External |
| Panel type |
IPS |
| Cable management |
Yes |
| Brightness |
385 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Wi-Fi |
Yes |
| Viewable size, vertical |
13.5 cm |
| Viewable size, horizontal |
21.7 cm |
| USB 2.0 ports quantity |
2 |
| RJ-45 ports quantity |
1 |
| Megapixel (approx.) |
5 MP |
| DC-in jack |
Yes |
| Compatible memory cards |
SD |
| Card reader integrated |
Yes |
| Built-in microphone |
Yes |
| Built-in camera |
Yes |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| Audio input |
Yes |
| Quick start guide |
Yes |
| AC adapter included |
Yes |
| Micro-USB ports quantity |
1 |
| Input voltage |
12 V |
