MSI Cubi N ADL Intel N100 Desktop PC, NUC, SFF, Mini Computer, HTPC, (4GB RAM, 128GB SSD, Windows 11 PRO), UHD Graphics/Type C/HDMI/DisplayPort/Dual LAN/WiFi 5/BT 5.1/VESA

MSI Cubi N ADL Intel N100 Desktop PC, 4GB RAM, 128GB SSD, Mini PC, SFF, Type C, USB 3.2 Gen2, HDMI, DP, Dual LAN, WiFi, BT, VESA, Win11 PRO

Key Features

• Windows 11 Pro
• Featuring Intel Alder Lake Processors
• Support 4K UHD Display

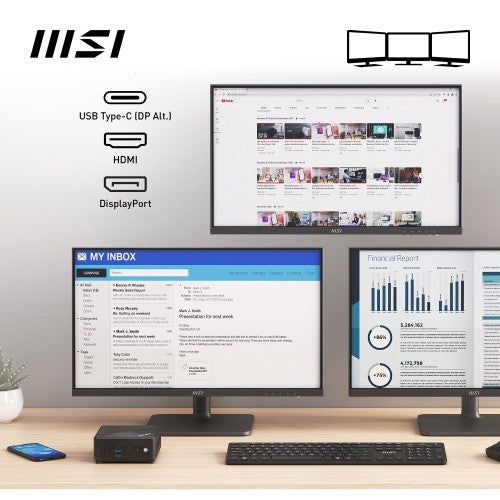

• Support up to three displays that allows you to see more and do more
• Dual network solution for both internet and intranet
• Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience
• dTPM 2.0 design secures your confidential data with encryption keys
• Supports standard VESA-mount
• Supports MSI Cloud Center & MSI Center app

Description

"Cubi N ADL: The Energy Efficient Mini-PC

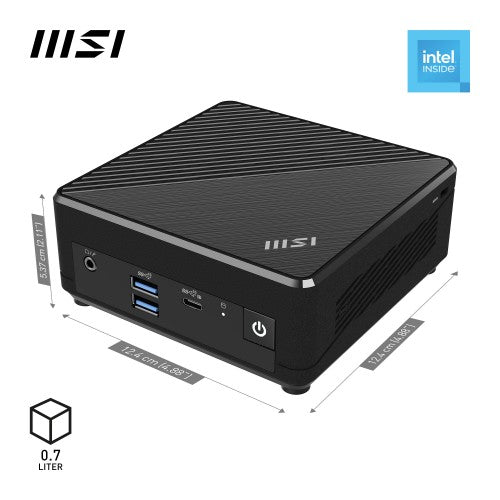

The MSI Cubi N ADL is a small yet powerful mini-desktop with an incredibly compact 0.66L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).

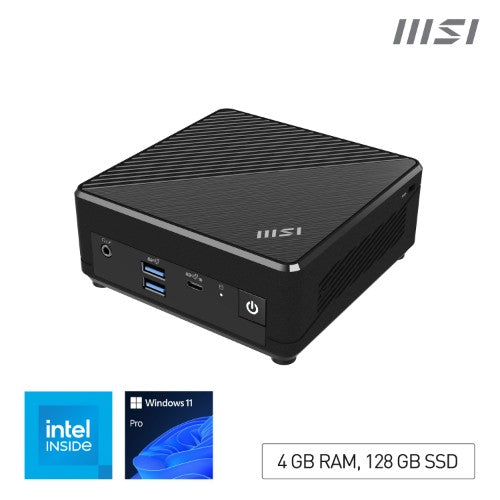

The Cubi N ADL-N100 FS 4GB 128GB W11P configuration is a complete system equipped with an Intel N100 processor, 4 GB of DDR4-3200MHz memory, 128 GB of M.2 SSD storage, Intel Wi-Fi 9462 & Bluetooth 5.1 connectivity, as well as Windows 11 Pro software pre-installed.

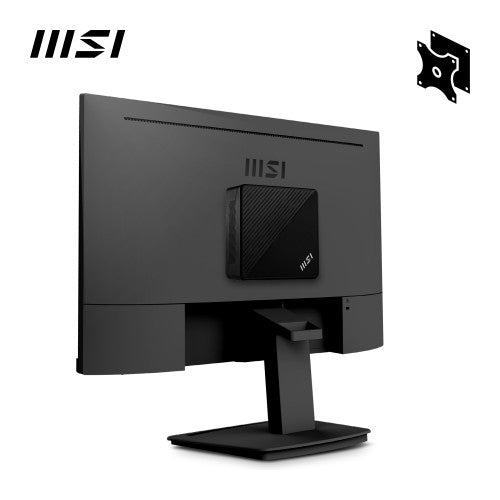

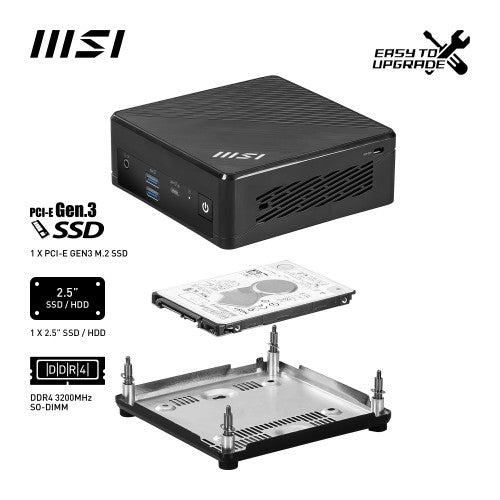

The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2.5-inch SSD storage, as well as up to 16 GB of system memory (1 x DDR4 3200MHz SO-DIMMs), and is VESA-mountable for a cleaner desktop.

Thanks to its cooling-optimized layout and low-noise fan, the MSI Cubi N ADL is not only an energy-efficient computing solution but is also very quiet, running at a whisper-level 28 dBA while in idle mode.

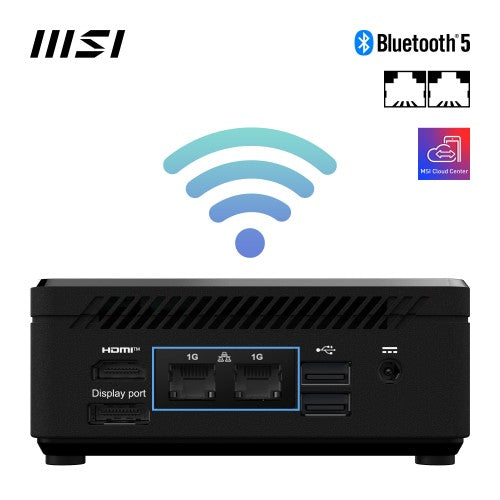

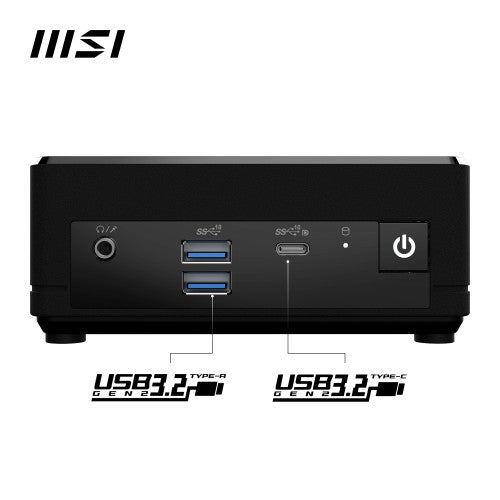

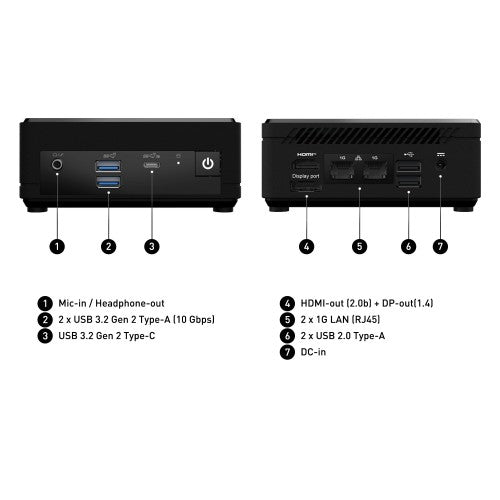

Front I/O connectivity includes a Mic-in/Headphone-out combo jack, USB 3.2 Gen 2 Type-C (DP Alt.) and dual USB 3.2 Gen 2 Type-A ports. The rear I/O features dual 1Gbps ethernet LAN ports, HDMI 2.1, DisplayPort 1.4, and dual USB 2.0 ports."

Specifications

Processor
Processor operating modes	32-bit
Processor lithography	10 nm
Processor codename	Alder Lake-N
Thermal Design Power (TDP)	6 W
Processor cache type	Smart Cache
Processor cache	6 MB
Processor frequency	3.4 GHz
Processor model	N100
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	3.4 GHz
Processor threads	4
Processor cores	4
Processor family	Intel® N
Number of processors supported	1
Memory
Memory layout (slots x size)	1 x 4 GB
Internal memory	4 GB
Maximum internal memory	16 GB
Memory slots	1x SO-DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Storage
Storage media	SSD
Number of storage drives installed	1
Number of storage drives supported	2
Optical drive type	No
SSD interface	M.2
SSD capacity	128 GB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	128 GB
SSD form factor	M.2
Total SSDs capacity	128 GB
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.1
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10,100,1000 Mbit/s
WLAN controller model	Intel Dual Band Wireless-AC 9462
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
LAN controller	Realtek RTL8111H
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
HDMI version	2.1
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	2
Thunderbolt ports quantity	0
PS/2 ports quantity	0
Mini DisplayPorts quantity	0
Firewire (IEEE 1394) ports	0
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
eSATA ports quantity	0
DVI port	No
DisplayPorts quantity	1
DC-in jack	Yes
DisplayPort version	1.4
USB 3.2 Gen 2x2 Type-C ports quantity	0
USB Type-C DisplayPort Alternate Mode	Yes
USB4 Gen 2x2 ports quantity	0
USB4 Gen 3x2 ports quantity	0
Intel® Thunderbolt 4	No
Thunderbolt 4 ports quantity	0
Technical details
Water cooling system	No
Number of 2.5" bays	1
Cable lock slot type	Kensington
Product type	Mini PC
Product colour	Black
Chassis type	Mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Motherboard chipset	Intel SoC
Warranty period	2 year(s)
Design
VESA mounting	Yes
Housing material	Plastic
Volume	0.66 L
Water cooling system	No
Number of 2.5" bays	1
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Product family	Intel NUC
Colour name	Black
Country of origin	China
Performance
Market positioning	Everyday
Product type	Mini PC
Motherboard chipset	Intel SoC
Powered by	MSI
Software
Drivers included	Yes
Operating system installed	Windows 11 Pro
Power
Power supply	65 W
Ergonomics
VESA mounting	Yes
Weight & dimensions
Volume	0.66 L
Package width	205 mm
Package depth	220 mm
Package height	94 mm
Width	124 mm
Depth	124 mm
Height	53.7 mm
Package weight	1.39 kg
Weight	540 g
Packaging data
Package width	205 mm
Package depth	220 mm
Package height	94 mm
Package weight	1.39 kg
Packaging content
AC adapter included	Yes
VESA mount included	Yes
Manual	Yes
Mouse included	No
Drivers included	Yes
Display included	No
Keyboard included	No
Power cord included	Yes
Display
Display included	No
Features
Country of origin	China
Other features
VESA mounting	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
Country of origin	China
Warranty period	2 year(s)
