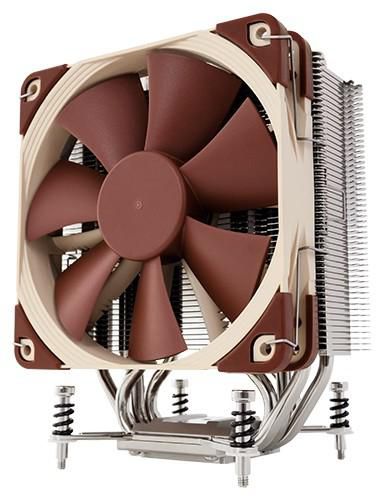

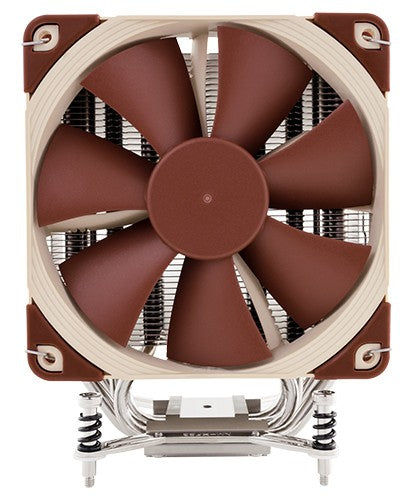

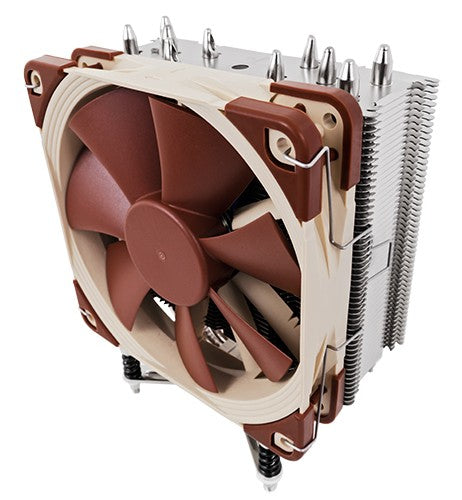

NH-U12DX i4, LGA2011 (Square ILM & Narrow ILM), LGA1356, LGA1366 (wtih Xeon backplate)
Description
Noctua's DX line of coolers has become a default choice in high performance quiet cooling solutions for Intel Xeon CPUs. The latest i4 revision supports LGA2011 (both Square ILM and Narrow ILM), LGA1356 and LGA1366 based Xeon platforms and the 12cm model NH-U12DX i4 comes equipped with Noctua’s award-winning NF-F12 Focused Flow™ fan with PWM for automatic speed control. Due to its slim design, the NH-U12DX i4 now provides easy access to the memory slots and better compatibility with tall modules. Fitted with the professional SecuFirm2™ mounting system and bundled with Noctua's industrial-grade NT-H1 thermal compound, the NH-U12DX i4 forms a complete premium quality package for quietly cooling Xeon based workstations and servers.
Specifications
| Performance |
|---|
| Suitable location |
Processor |
| Rotational speed (min) |
300 RPM |
| Rotational speed (max) |
1500 RPM |
| Noise level (high speed) |
22.4 dB |
| Fan thickness |
2.5 cm |
| Type |
Cooler |
| Fan diameter |
12 cm |
| Supported processor sockets |
LGA 1356 (Socket B2), LGA 2011 (Socket R) |
| Airflow |
93.4 m³/h |
| Number of fans |
1 fan(s) |
| Mean time between failures (MTBF) |
150000 h |
| Design |
|---|
| Number of fans |
1 fan(s) |
| Material |
Aluminium, Copper, Nickel |
| Product colour |
Aluminium, Brown |
| Technical details |
|---|
| Noise level (high speed) |
22.4 dB |
| Fan thickness |
2.5 cm |
| Type |
Cooler |
| Fan diameter |
12 cm |
| Supported processor sockets |
LGA 1356 (Socket B2), LGA 2011 (Socket R) |
| Airflow |
93.4 m³/h |
| Number of fans |
1 fan(s) |
| Material |
Aluminium, Copper, Nickel |
| Power |
|---|
| Voltage |
12 V |
| Power consumption (typical) |
0.6 W |
| Colour |
|---|
| Product colour |
Aluminium, Brown |
| Weight & dimensions |
|---|
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Heatsink weight |
580 g |
| Fan weight |
75 g |
| Fan thickness |
2.5 cm |
| Width |
125 mm |
| Depth |
71 mm |
| Height |
158 mm |
| Weight |
755 g |
| Heatsink dimensions (W x D x H) |
125 x 45 x 158 mm |
| Endurance |
|---|
| Mean time between failures (MTBF) |
150000 h |
| Other features |
|---|
| Heatsink dimensions (W x D x H) |
125 x 45 x 158 mm |
| Harmonized System (HS) code |
84733080 |
