StarTech.com USB-C/USB-A to M.2 NVMe and 2.5in/3.5in SATA Adapter, 10Gbps, Tool-Free External SSD Hard Drive Reader, B+M/M-Key

StarTech.com USB-C/USB-A to M.2 NVMe and 2.5in/3.5in SATA Adapter, 10Gbps, Tool-Free External SSD Hard Drive Reader, B+M/M-Key

Key Features

• Versatile 2-in-1 Drive Adapter: Enable fast, tool-free access to an M.2 NVMe drive and a 2.5in/3.5in SATA SSD/HDD, or transfer data simultaneously through a single USB-C or USB-A 10Gbps host; Toaster-style M.2 slot optimizes airflow for peak performance
• Ideal for Diagnostics and Troubleshooting: Quickly troubleshoot M.2 NVMe and 2.5/3.5in SATA drives to monitor drive health, test performance, or recover data; Use as a portable multi-interface drive dock for compatibility testing, disk imaging, or storage expansion
• Portable and Self-Powered: Compact, lightweight design that fits into any IT toolkit; Runs on USB bus power when connected to one 2.5in SATA or M.2 NVMe drive, and includes a power adapter for dual-drive operation or high-draw SATA/NVMe drives
• Driverless Setup and Broad Compatibility: Integrated USB-C cable with USB-A adapter ensures universal host access and driverless operation on Windows, macOS, and Linux; Supports PCIe Gen4 M.2 NVMe and SATA III up to 6 Gbps; NOTE: M.2 SATA is not supported
• The IT Pro's Choice: Our external drive adapters are lab-tested for enterprise-grade performance, thermal efficiency, and OS compatibility; Ideal for secure backups and drive upgrades, and backed by free lifetime 24/5 multi-lingual technical assistance

Description

Access Ultra-Fast M.2 NVMe drives and SATA HDD/SSD storage via USB 10Gbps

Access and manage M.2 NVMe and 2.5 in/3.5 in SATA SSDs/HDDs through a single USB-C or USB-A 10Gbps connection. The 2-in-1 NVMe and SATA adapter enables simultaneous read and write access for fast data transfer, recovery, and upgrades. This hard drive reader is a versatile solution for IT professionals performing backups, disk imaging, or maintenance on M.2 NVMe and legacy SATA drives.

External Drive Access over USB-C and USB-A

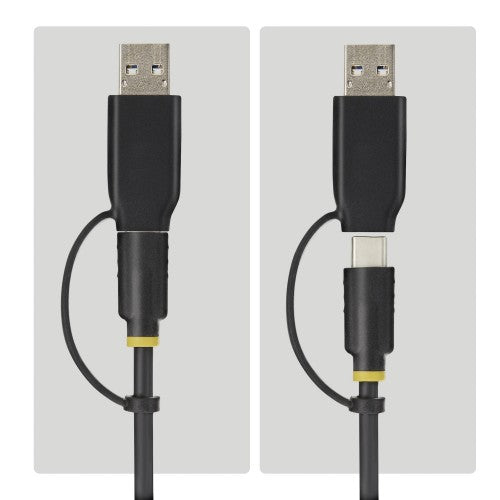

Connect the M.2 NVMe and SATA SSD Adapter directly to laptop or workstation using the integrated USB-C cable with USB-A adapter. The open-top M.2 slot maintains airflow for consistent performance during sustained workloads. The NVMe/SATA Adapter supports up to 700 MB/s write speeds over M.2 NVMe, and up to 6 Gbps over SATA III when connected to legacy 2.5in or 3.5in SATA drives. Please note that M.2 SATA drives are not supported.

Compact Form Factor

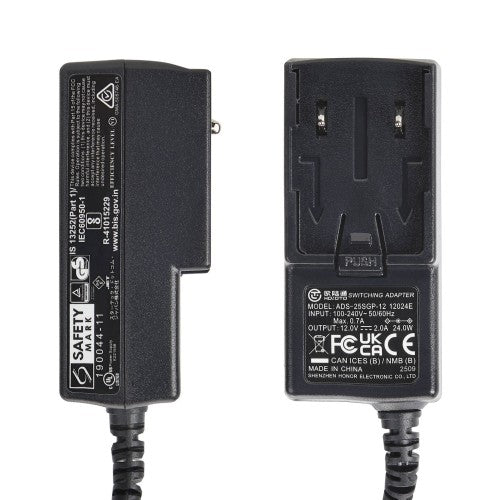

Lightweight and portable, the adapter fits easily into any IT toolkit or workspace. It runs on USB bus power for a single 2.5 in SATA or M.2 NVMe drive, and includes a universal power adapter required for 3.5 in SATA drives, for connecting two drives at once, or when a single drive draws more power than USB can provide. Ideal for IT technicians and end users needing portable, tool-free drive access.

Specifications

Hard drive
Storage media type	HDD, SSD
Storage drive interface	M.2, Serial ATA III
Storage drive sizes supported	2.5,3.5"
Number of storage drives supported	2
Ports & interfaces
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Technical details
UASP support	Yes
Package width	190 mm
Package height	54 mm
Maximum data transfer rate	10 Gbit/s
Product colour	Black
Material	Acrylonitrile butadiene styrene (ABS)
Hot-swap	Yes
Chipset	JMS581DC
TRIM support	Yes
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Features
UASP support	Yes
Maximum data transfer rate	10 Gbit/s
LED indicators	Yes
Product colour	Black
Material	Acrylonitrile butadiene styrene (ABS)
Hot-swap	Yes
Chipset	JMS581DC
TRIM support	Yes
Cooling
Number of fans	0 fan(s)
Power
Power plug type	Type H
AC input voltage	12 V
Input current	2 A
Output voltage	12 V
Output current	2 A
Weight & dimensions
Width	88.4 mm
Depth	360.6 mm
Height	14.1 mm
Weight	50 g
Packaging data
Package depth	123 mm
Package width	190 mm
Package height	54 mm
Package weight	330 g
Packaging content
Quick installation guide	Yes
Included power plug types	ANZ, EU, JP, NA, UK
AC adapter included	Yes
Interface adapters included	USB Type-A male - USB Type-C female
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Indication
LED indicators	Yes
Ethernet LAN features
LED indicators	Yes
Other features
Chipset	JMS581DC
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Logistics data
Master (outer) case width	400 mm
Master (outer) case length	290 mm
Master (outer) case height	275 mm
Products per master (outer) case	20 pc(s)
