Description

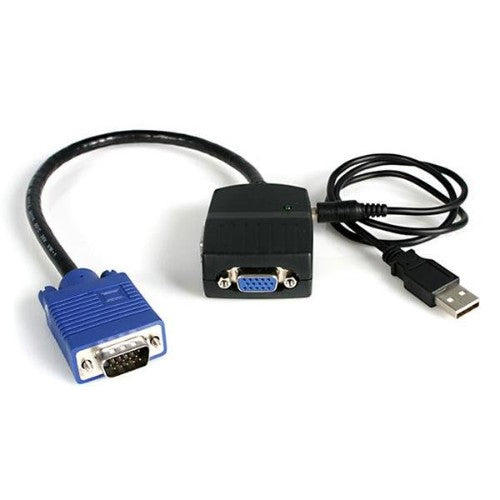

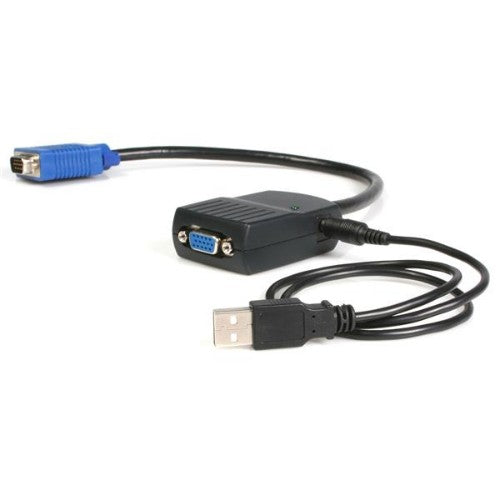

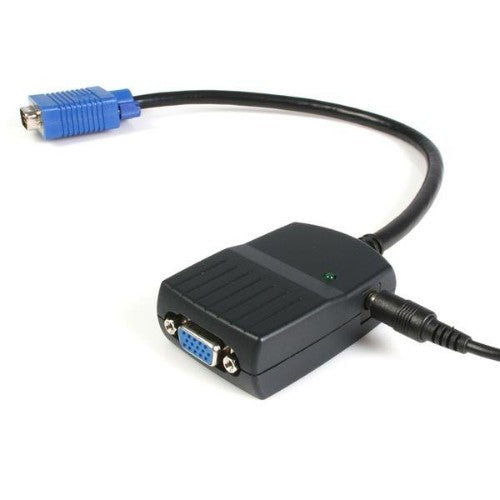

StarTech.com 2 Port VGA Video Splitter - USB Powered - 2048x1536 - VGA Video Monitor Splitter Dual Port
This 2-Port VGA Video Splitter allows a computer to display VGA video on two monitors simultaneously.
Perfect for classrooms, tradeshows, or any environment requiring high quality video on several monitors, the ST122LE VGA splitter supports displays with up to 300 MHz of bandwidth and up to 2048x1536 resolution. Plus, to simplify placement of your VGA displays, the splitter features a built-in booster circuit that allows you to locate VGA monitors up to 200 ft away from your system, and can be powered through a USB connection to the host computer, eliminating the need to find an available power outlet.
Application Diagram
The ST122LE VGA Splitter supports easy plug and play installation, and is backed by StarTech.com's 2-year warranty and FREE lifetime tech support.
The StarTech.com Advantage
- USB-Powered VGA video splitter, no bulky external power adapter required
- Multiple screens let you communicate your message more effectively to large audiences with greater impact
- Integrated signal amplifier boosts your connection range to 210 feet (65 meters)
Description
Compact USB-powered VGA splitter allows you to split a video source to two separate displaysThis 2-Port VGA Video Splitter allows a computer to display VGA video on two monitors simultaneously.
Perfect for classrooms, tradeshows, or any environment requiring high quality video on several monitors, the ST122LE VGA splitter supports displays with up to 300 MHz of bandwidth and up to 2048x1536 resolution. Plus, to simplify placement of your VGA displays, the splitter features a built-in booster circuit that allows you to locate VGA monitors up to 200 ft away from your system, and can be powered through a USB connection to the host computer, eliminating the need to find an available power outlet.
Application Diagram
The ST122LE VGA Splitter supports easy plug and play installation, and is backed by StarTech.com's 2-year warranty and FREE lifetime tech support.
The StarTech.com Advantage
- USB-Powered VGA video splitter, no bulky external power adapter required
- Multiple screens let you communicate your message more effectively to large audiences with greater impact
- Integrated signal amplifier boosts your connection range to 210 feet (65 meters)
Specifications
| Ports & interfaces | |
|---|---|
| Video ports quantity | 2 |
| Video port type | VGA |
| Video out | 2x VGA |
| Features | |
| Housing material | Plastic |
| Maximum resolution | 2048 x 1536 pixels |
| Maximum operating distance | 61 m |
| Product colour | Black |
| Certification | REACH, CE, FCC, TAA |
| Bandwidth | 300 MHz |
| Power | |
| Output current | 0.5 A |
| USB powered | Yes |
| Output voltage | 5 V |
| Weight & dimensions | |
| Weight | 100 g |
| Package weight | 235 g |
| Package depth | 210 mm |
| Package width | 145 mm |
| Package height | 40 mm |
| Packaging data | |
| Package weight | 235 g |
| Package depth | 210 mm |
| Package width | 145 mm |
| Package height | 40 mm |
| Packaging content | |
| Manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Video | |
| Maximum resolution | 2048 x 1536 pixels |
| Bandwidth | 300 MHz |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | REACH, CE, FCC, TAA |
| Technical details | |
| Housing material | Plastic |
| Connector 2 | DB15 |
| Connector 1 | DB15 |
| Package width | 145 mm |
| Package height | 40 mm |
| Video out | 2x VGA |
| Maximum operating distance | 61 m |
| Technical features | DDC, DDC2, DDC2B |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
