Description
10/100Mbps, RJ-45, DB-36 pin, DHCP, 3.3V, 2A, 52g, IEEE 802.3/u

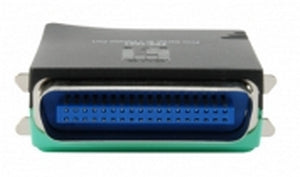

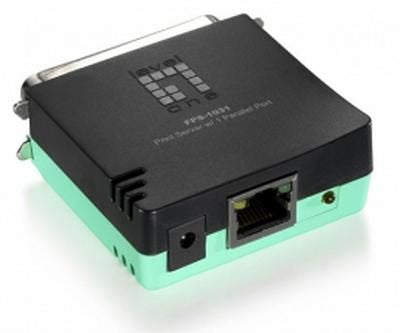

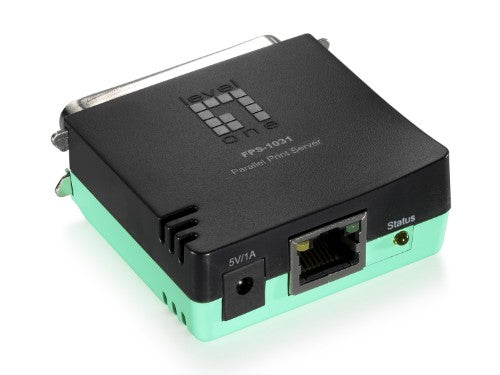

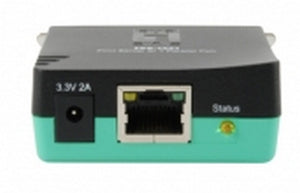

The LevelOne FPS-1031 print server is an ideal network printing solution for small offices, home offices, schools and other businesses that require printer sharing over the same network. This print server is equipped with a 10/100Mbps autosensing Ethernet port and a DB-36-pin male bi-directional Centronic port that connects to parallel printers.
Multi OS and Network Printing Protocol Support
The FPS-1031 is a print server with 1 parallel port that supports Windows ME, 2000, XP and Vista operating systems as well as Mac OS 8.1 and higher, UNIX/Linux and Netware (Bindery/NDS).
Network Protocol supported includes TCP/IP, IPX, NetBEUI, AppleTalk, LPR and SMB over TCP/IP for flexible use with different network clients connected to the same office network. The FPS-1031 also includes Internet Printing Protocol (IPP) support and Windows Print Monitor Technology to monitor printing jobs received.
Easy Installation Wizard
The LevelOne FPS-1031 is easily configurable using a Web Browser or the Windows based configuration program included with the CD-ROM. The print server is easily managed through a Web based user interface and the firmware is upgradeable through TFTP, the Windows set-up program or the Web based user interface.
- Parallel print server for network print sharing
- USB 2.0 interface
- Simple setup with user-friendly interface
- Support multiple network printing protocols
- Support multiple operating systems
Description
Product OverviewThe LevelOne FPS-1031 print server is an ideal network printing solution for small offices, home offices, schools and other businesses that require printer sharing over the same network. This print server is equipped with a 10/100Mbps autosensing Ethernet port and a DB-36-pin male bi-directional Centronic port that connects to parallel printers.
Multi OS and Network Printing Protocol Support
The FPS-1031 is a print server with 1 parallel port that supports Windows ME, 2000, XP and Vista operating systems as well as Mac OS 8.1 and higher, UNIX/Linux and Netware (Bindery/NDS).
Network Protocol supported includes TCP/IP, IPX, NetBEUI, AppleTalk, LPR and SMB over TCP/IP for flexible use with different network clients connected to the same office network. The FPS-1031 also includes Internet Printing Protocol (IPP) support and Windows Print Monitor Technology to monitor printing jobs received.
Easy Installation Wizard
The LevelOne FPS-1031 is easily configurable using a Web Browser or the Windows based configuration program included with the CD-ROM. The print server is easily managed through a Web based user interface and the firmware is upgradeable through TFTP, the Windows set-up program or the Web based user interface.
- Parallel print server for network print sharing
- USB 2.0 interface
- Simple setup with user-friendly interface
- Support multiple network printing protocols
- Support multiple operating systems
Specifications
| Features | |
|---|---|
| Internal | No |
| Product colour | Black, Green |
| LED indicators | Activity, Link, Power, Status |
| IPP support | Yes |
| DHCP client | Yes |
| Country of origin | Taiwan |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Network connection type | Ethernet LAN |
| Protocols | |
| Supported network protocols | TCP/IP, IPX, NetBEUI, AppleTalk, LPR, SMB over TCP/IP, RAW |
| Web-based management | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Parallel ports quantity | 1 |
| DC-in jack | Yes |
| Technical details | |
| Internal | No |
| Product colour | Black, Green |
| IPP support | Yes |
| DHCP client | Yes |
| Country of origin | Taiwan |
| Software | |
| Windows operating systems supported | Windows 2000, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS 8.1, Mac OS 8.5, Mac OS 8.6, Mac OS 9.0, Mac OS 9.1, Mac OS 9.2 |
| Linux operating systems supported | Yes |
| Other operating systems supported | Novell NetWare 3.x, Novell NetWare 4.x, Novell NetWare 5.x, Novell NetWare 6.x |
| Certificates | |
| Certification | CE, FCC Class B |
| Weight & dimensions | |
| Width | 55 mm |
| Height | 25 mm |
| Depth | 51 mm |
| Weight | 560 g |
| Packaging data | |
| Package width | 152 mm |
| Package height | 66 mm |
| Package depth | 219 mm |
| Package weight | 630 g |
| Indication | |
| LED indicators | Activity, Link, Power, Status |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 50% |
| Storage temperature (T-T) | -5 - 65 °C |
| Storage relative humidity (H-H) | 0 - 70% |
| Operating altitude | 0 - 80 m |
| Other features | |
| Package width | 152 mm |
| Package height | 66 mm |
| Package depth | 219 mm |
| Country of origin | Taiwan |
