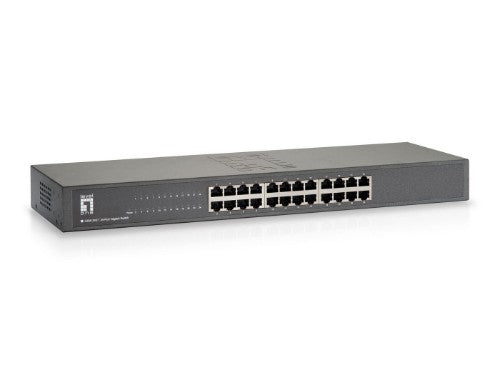

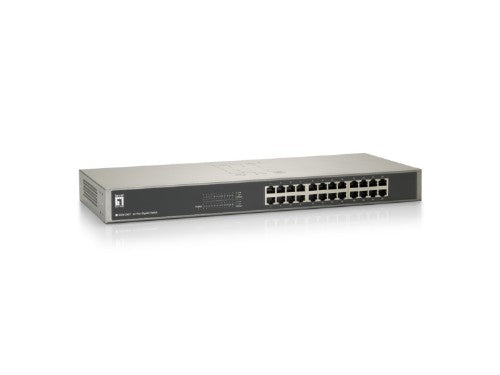

LevelOne 24-Port Gigabit Switch

24-Port Gigabit Switch

Key Features

• 10/100BASE-TX UTP to 100BASE-FX copper to fiber media converter
• Supports 8K MAC address auto-learning and auto-aging
• 9K jumbo frames to increase data transfer rates
• 24 Gigabit Ethernet ports
• Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
• 19-inch metal housing
• Fanless Design

Description

Gigabit Speeds: Take Your Data to the Next LevelGSW-2457 is a 24-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 48Gbps and bring lightning fast Gigabit connections to all your computers.Bandwidth hungry? Not a problem.What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GSW-2457 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.Plug and Play, Flexible and EasyGSW-2457 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	24
Network
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Jumbo frames	9000
MAC address table	8000 entries
Switching capacity	48 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	1.488 Mpps
Design
Product colour	Black
LED indicators	Activity, Link, Power, Speed
Housing material	Metal
Rack mounting	Yes
Country of origin	China
Performance
Flash memory	4 MB
Built-in processor	Yes
Harmonized System (HS) code	85176990
Power
AC input voltage	100 - 240 V
AC input frequency	50 Hz
Power consumption (typical)	15 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	44 mm
Depth	220 mm
Height	440 mm
Weight	2.65 kg
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
Packaging data
Package type	Box
Package width	224 mm
Package depth	486 mm
Package height	77 mm
Package weight	2.2 kg
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
Technical details
Product colour	Black
Housing material	Metal
Rack mounting	Yes
Built-in processor	Yes
Master (outer) cases per pallet layer	22 pc(s)
Pallet gross width	120 cm
Pallet gross length	80 cm
Pallet height (air)	155.5 cm
Memory
Flash memory	4 MB
Indication
LED indicators	Activity, Link, Power, Speed
Other features
Country of origin	China
Logistics data
Country of origin	China
Master (outer) case width	405 mm
Master (outer) case length	500 mm
Master (outer) case height	240 mm
Master (outer) case gross weight	12 kg
Products per master (outer) case	5 pc(s)
Harmonized System (HS) code	85176990
