Description
16 x RJ-45, 10/100/1000 Mbps, 32 Gbps, 1.68 kg

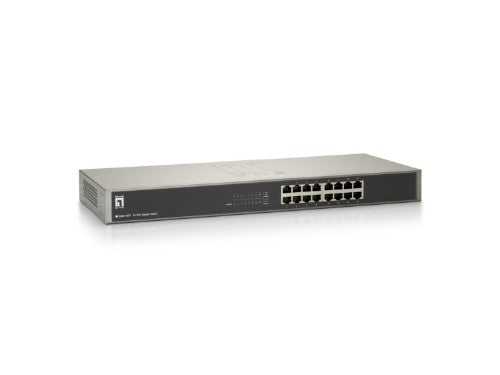

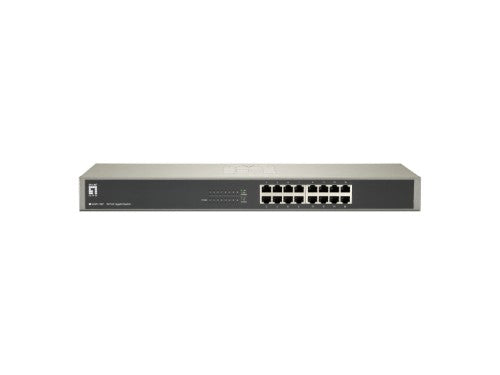

GSW-1657 is a 16-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 32Gbps and bring Gigabit speeds all the way to your computers.
Bandwidth hungry? Not a problem.
What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GSW-1657 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.
Standards-based
GSW-1657 features a non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput. With MAC address auto-learning and auto-aging, IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode, you have powerful features sending your data throughout the network.
Plug and Play, Flexible and Easy

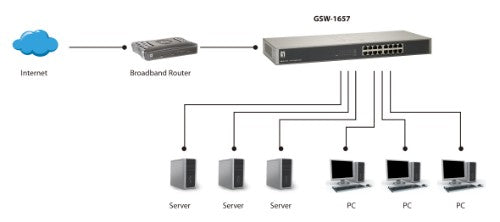

GSW-1657 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable. Diagnostic LEDs which display link status and activity, allowing you to quickly detect and correct problems on the network.
Key Features
- 16 Gigabit Ethernet ports
- 10/100/1000Mbps wire speed transmission and reception
- Supports 8K MAC address auto-learning and auto-aging
- 9K jumbo frames to increase data transfer rates
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
Description
Gigabit Speeds: Take Your Data to the Next LevelGSW-1657 is a 16-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 32Gbps and bring Gigabit speeds all the way to your computers.
Bandwidth hungry? Not a problem.
What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GSW-1657 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.
Standards-based
GSW-1657 features a non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput. With MAC address auto-learning and auto-aging, IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode, you have powerful features sending your data throughout the network.
Plug and Play, Flexible and Easy
GSW-1657 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable. Diagnostic LEDs which display link status and activity, allowing you to quickly detect and correct problems on the network.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Cable types supported | Cat5, Cat6, Cat7 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Packet forwarding rate (100 Mbps) | 148000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Jumbo frames | 10000 |
| Packet buffer memory | 0.5 MB |
| MAC address table | 8192 entries |
| Switching capacity | 32 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Design | |
| Product colour | Black, Grey |
| LED indicators | Activity, Link |
| Rack mounting | Yes |
| Certification | FCC, CE |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 13.3 W |
| Input current | 0.6 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 1.48 kg |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC |
| Mounting brackets included | Yes |
| Packaging data | |
| Mounting brackets included | Yes |
| Package width | 224 mm |
| Package depth | 486 mm |
| Package height | 77 mm |
| Package weight | 2.15 kg |
| Quick start guide | Yes |
| Cables included | AC |
| Performance | |
| Packet buffer memory | 0.5 MB |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Black, Grey |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 0.5 MB |
| Certificates | |
| Certification | FCC, CE |
| Indication | |
| LED indicators | Activity, Link |
| Logistics data | |
| Master (outer) case width | 405 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 240 mm |
| Master (outer) case gross weight | 11.8 kg |
| Harmonized System (HS) code | 85176990 |
