Description
16 x 10/100Base-TX RJ-45, 6.2W, 3.2Gbps, MAC 8K, IEEE 802.3/u/x/az, IEEE 802.1p

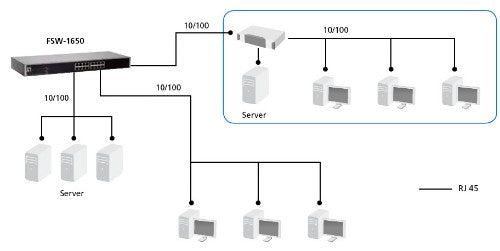

The FSW-1650 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices.
Advanced Networking Features

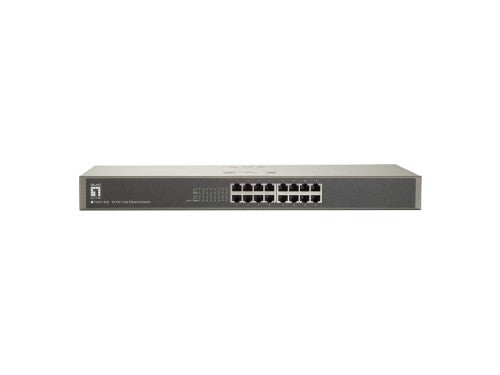

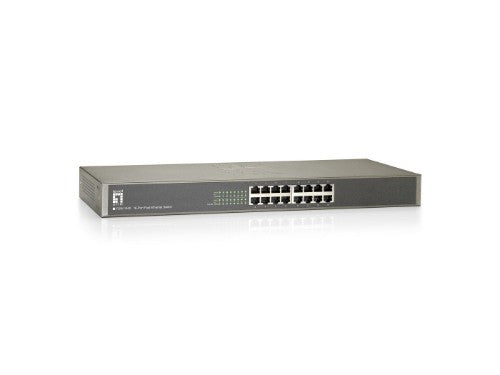

The LevelOne FSW-1650 is a wire-speed, nonblocking 16 port Fast Ethernet Unmanaged Switch with an internal power supply. It provides a network with an 8K MAC address table, 3.2Gbps backplane throughput, asymmetrical flow-control support for full-duplex network connectivity, auto-negotiation and Auto-MDIX.
The 16-port Fast Ethernet Switch utilizes packetstore- and forwarding switching for error-free data transmissions and IEEE802.3x backpressure flow control to control data flow between the sending and receiving nodes as well as to prevent any data packet loss.
Compact Design
The FSW-1650 is a compact designed network switch. Users can place the switch on any desktop area or mount it in a 19-inch server rack or cabinet by using the included rack-mounting accessory kit.
Quick Configuration and Easy Maintenance
The LevelOne FSW-1650 does not require any software configuration. It is Plug-and-Play enabled for quick set-up and immediate use within the Local Area Network. The 16 port Faster Ethernet Switch is equipped with a full range of LEDs for instant error detection, networking monitoring and network
troubleshooting.
- Provides flexibility of 16 x 10/100BASE-TX ports
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 8K MAC address auto-learning and auto-aging
- QoS control for traffic prioritization and bandwidth management
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 19-inch metal housing
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
Description
Product OverviewThe FSW-1650 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices.
Advanced Networking Features
The LevelOne FSW-1650 is a wire-speed, nonblocking 16 port Fast Ethernet Unmanaged Switch with an internal power supply. It provides a network with an 8K MAC address table, 3.2Gbps backplane throughput, asymmetrical flow-control support for full-duplex network connectivity, auto-negotiation and Auto-MDIX.
The 16-port Fast Ethernet Switch utilizes packetstore- and forwarding switching for error-free data transmissions and IEEE802.3x backpressure flow control to control data flow between the sending and receiving nodes as well as to prevent any data packet loss.
Compact Design
The FSW-1650 is a compact designed network switch. Users can place the switch on any desktop area or mount it in a 19-inch server rack or cabinet by using the included rack-mounting accessory kit.
Quick Configuration and Easy Maintenance
The LevelOne FSW-1650 does not require any software configuration. It is Plug-and-Play enabled for quick set-up and immediate use within the Local Area Network. The 16 port Faster Ethernet Switch is equipped with a full range of LEDs for instant error detection, networking monitoring and network
troubleshooting.
- Provides flexibility of 16 x 10/100BASE-TX ports
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 8K MAC address auto-learning and auto-aging
- QoS control for traffic prioritization and bandwidth management
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 19-inch metal housing
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Network | |
| Cable types supported | Cat5 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| 10G support | No |
| Data transmission | |
| MAC address table | 8192 entries |
| Switching capacity | 3.2 Gbit/s |
| Store-and-forward | Yes |
| Protocols | |
| Switching protocols | CSMA/CD |
| Design | |
| Product colour | Grey |
| Stackable | No |
| LED indicators | Activity, LAN, Link, Power |
| Rack mounting | Yes |
| Country of origin | China |
| Certification | CE RoHS |
| Performance | |
| Buffer size | 160 KB |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 6.2 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 44 mm |
| Depth | 208 mm |
| Height | 440 mm |
| Weight | 2.6 kg |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC |
| Wall mounting kit | Yes |
| Packaging data | |
| Wall mounting kit | Yes |
| Package width | 308 mm |
| Package depth | 94 mm |
| Package height | 550 mm |
| Package weight | 2.7 kg |
| Quick start guide | Yes |
| Cables included | AC |
| Technical details | |
| Product colour | Grey |
| Stackable | No |
| Rack mounting | Yes |
| Certificates | |
| Certification | CE RoHS |
| Indication | |
| LED indicators | Activity, LAN, Link, Power |
| Other features | |
| Country of origin | China |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
