Description
2.5 m, 540 g, USB, US EN + EURO
Key Features
- Optical trackball with two mouse buttons for easy control of the cursor
- High degree of reliability and precise keystroke feel thanks to individual keys with Gold Crosspoint contacts (Cherry ML technology)
- Ideal for continuous usage due to the long operating life in excess of 20 million key confirmations per individual key
- Compact dimensions and very low overall build height, ideal for restricted spaces and for 19' applications
- Standardised measurements and installation dimensions of the complete XS product family - the keyboard can be adapted to every application
- Lightweight - for applications where every gram counts
- Plug & Play - can be used with the operating system's standard drivers
- Supports Code Set 3 and UnifiedPOS
- Fastening option for permanent installation
- Detachable pluggable feet for individually adjusting the tilt of the keyboard
- Freely programmable keys for even more time-saving operation
Description

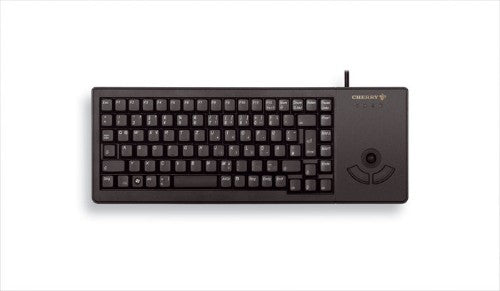

The 'XS Trackball Keyboard' (G84-5400) combines comfortable mouse control with compact dimensions. Via the optical trackball with two mouse keys, the cursor can be controlled easily and precisely.Specifications
| Keyboard | |
|---|---|
| USB hub | No |
| Fingerprint reader | No |
| Purpose | Universal |
| Recommended usage | Universal |
| Keyboard style | Straight |
| Keyboard form factor | Full-size (100%) |
| Keyboard layout | QWERTY |
| Keyboard number of keys | 88 |
| Wrist rest | No |
| Windows keys | Yes |
| Pointing device | Trackball + mouse buttons |
| Numeric keypad | No |
| Keyboard language | US English |
| Connectivity technology | Wired |
| Certification | cURus, c-tick, VCCI, CE, FCC, VDE, BSMI |
| Device interface | USB |
| Keyboard keys operating life | 20 million characters |
| Ports & interfaces | |
| Cable length | 2.5 m |
| Design | |
| Product colour | Black |
| Keyboard style | Straight |
| Ergonomic design | No |
| Backlight | No |
| Surface coloration | Monochromatic |
| Wrist rest | No |
| Certification | cURus, c-tick, VCCI, CE, FCC, VDE, BSMI |
| Technical details | |
| Plug and Play | Yes |
| Product colour | Black |
| Ergonomic design | No |
| Backlight | No |
| Surface coloration | Monochromatic |
| Windows keys | Yes |
| Numeric keypad | No |
| Connectivity technology | Wired |
| Master (outer) cases per pallet | 12 pc(s) |
| Harmonized System (HS) code | 84716060 |
| Ergonomics | |
| Plug and Play | Yes |
| Cable length | 2.5 m |
| Features | |
| Plug and Play | Yes |
| Cable length | 2.5 m |
| Power | |
| Power consumption | 35 mA |
| Power source type | USB |
| Mouse | |
| Mouse included | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certificates | |
| Certification | cURus, c-tick, VCCI, CE, FCC, VDE, BSMI |
| Packaging content | |
| User guide | Yes |
| Weight & dimensions | |
| Keyboard weight | 540 g |
| Keyboard dimensions (WxDxH) | 374 x 139 x 20 mm |
| Packaging data | |
| Package weight | 670 g |
| User guide | Yes |
| Package width | 393 mm |
| Package height | 33 mm |
| Package depth | 196 mm |
| Logistics data | |
| Products per master (outer) case | 21 pc(s) |
| Master (outer) cases per pallet | 12 pc(s) |
| Harmonized System (HS) code | 84716060 |
| Other features | |
| Pointing device | Trackball + mouse buttons |
| Connectivity technology | Wired |
| Master (outer) cases per pallet | 12 pc(s) |
