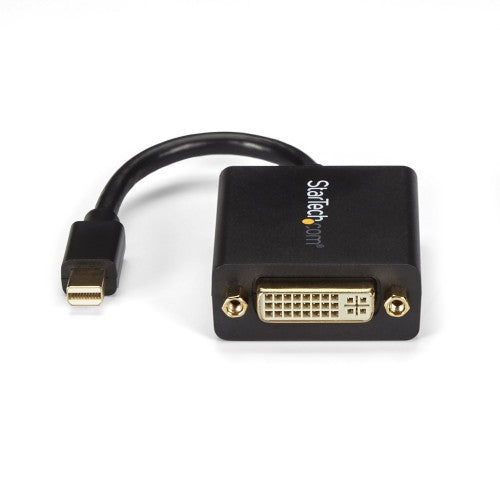

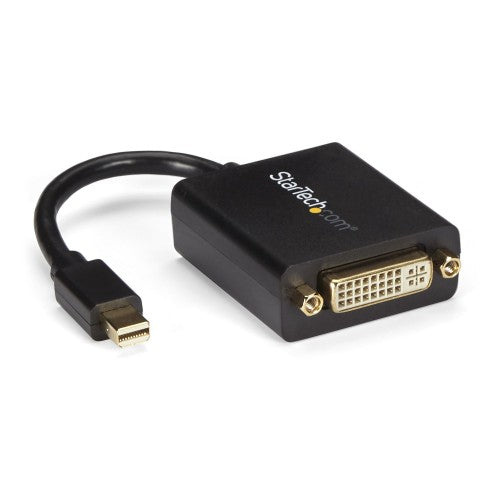

StarTech.com Mini DisplayPort to DVI Adapter - Mini DP to DVI-D Converter - 1080p Video - VESA Certified - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor - mDP 1.2 to DVI Single-Link Dongle

StarTech.com Mini DisplayPort to DVI Adapter - Mini DP to DVI-D Converter - 1080p Video - VESA Certified - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor - mDP 1.2 to DVI Single-Link Dongle (MDP2DVI)

Key Features

• MINI DISPLAYPORT TO DVI ADAPTER: mDP 1.2 (HBR2) to DVI-I (digital only DVI-D) single-link adapter connects a DVI display/projector; 1920x1200/1080p 60Hz video; EDID/DDC pass-through ensure compatibility between source & display; VESA DisplayPort Certified
• HOST COMPATIBILITY: Passive video converter supports mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
• INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to DVI adapter dongle / Compact design makes it ideal for travel / 5"" (13cm) attached cable
• SCREW LOCKING DVI: Mini DisplayPort to DVI display adapter supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection from DVI displays/projectors / Tested with DVI cables up to 25ft / mDP male to DVI female connector
• EASY TO USE: With no software or drivers required, the Mini DP to DVI converter works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort

Description

Connect a DVI display to a Mini DisplayPort® equipped PC or MAC®

The StarTech.com MDP2DVI Mini DisplayPort DVI Adapter Cable offers a cost-effective DVI/Mini DisplayPort link, letting you connect a DVI computer monitor to a device with a Mini DisplayPort output while saving the expense of upgrading the monitor for compatibility. This Mini DisplayPort adapter is the perfect accessory for any of your MacBook® or Microsoft® Surface™ Pro devices with mDP.

MDP2DVI is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Features
Converter type	Passive video converter
DisplayPort version	1.2
Product colour	Black
Cable length	0.13 m
Connector 1	Mini DisplayPort
Connector 2	DVI-I
Connector 1 gender	Male
Connector 2 gender	Female
Maximum resolution	1920 x 1200 pixels
Supported video modes	1080p
Certification	RoHS, CE, FCC
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Dual Link DVI	No
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Sustainability
Sustainability certificates	RoHS, CE
Technical details
Sustainability certificates	RoHS, CE
Harmonized System (HS) code	84733080
Compliance certificates	RoHS, CE
Other features
Width	35 mm
Height	11 mm
Depth	185 mm
Weight & dimensions
Width	35 mm
Height	11 mm
Depth	185 mm
Weight	31 g
Package width	200 mm
Package depth	220 mm
Package height	18 mm
Package weight	40 g
Packaging data
Package width	200 mm
Package depth	220 mm
Package height	18 mm
Package weight	40 g
Logistics data
Master (outer) case width	330 mm
Master (outer) case length	500 mm
Master (outer) case height	215 mm
Products per master (outer) case	150 pc(s)
Harmonized System (HS) code	84733080
