LevelOne PoE Injector, 15.4W

PoE Injector, 15.4W, 2 x RJ-45, 100-240VAC, 0.8A, IEEE 802.3/u/af

Description

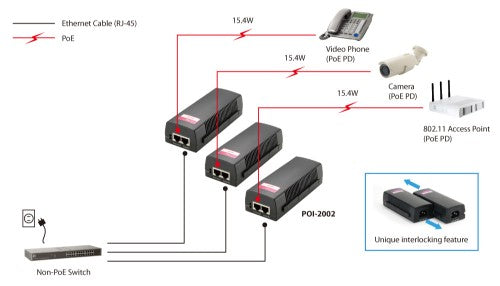

The LevelOne POI-2002 is a Power over Ethernet injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. With the use of power injectors, DC power of up to 15.4W and the data that comes from a non-PoE switch are merged together and then transmitted to the 802.3af compliant products such as PoE dome cameras through the Ethernet cabling. Hence, preserving your investment in hardware upgrade without the need for buying extra PoE switches. Furthermore, non-PoE devices like wireless access points can also be powered up remotely by adding additional PoE splitters, since power and data are further split into two cables, therefore these devices may be installed in hard-to-reach areas like ceilings where there are no any outlets or electrical wiring nearby.

- Minimize the need for a bulky power adapter and power line
- Delivering power and data to equipment via a single Ethernet cable
- Internal power supply
- High safety with surge protection
- Remote power feeding up to 100 meters
- PnP, Light Weight and compact size
- Unique interlocking feature for easy installation

Specifications

Network
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	10,100 Mbit/s
Ethernet interface type	Fast Ethernet
Power over Ethernet (PoE) voltage	52 V
Features
Product colour	Black
LED indicators	PoE, Power
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Country of origin	China
Certification	FCC Part 15, CE, RoHS
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Power
Output current	0.3 A
Power consumption (max)	15.4 W
Power over Ethernet (PoE) voltage	52 V
Input current	0.8 A
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Certificates
Certification	FCC Part 15, CE, RoHS
Operational conditions
Storage temperature (T-T)	0 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	280 g
Width	55 mm
Depth	35.5 mm
Height	173.5 mm
Package weight	450 g
Package depth	125 mm
Package width	55 mm
Package height	210 mm
Packaging content
Number of products included	1 pc(s)
Packaging data
Package weight	450 g
Package depth	125 mm
Package width	55 mm
Package height	210 mm
Technical details
Number of products included	1 pc(s)
Package width	55 mm
Package height	210 mm
Power over Ethernet (PoE)	Yes
Input current	0.8 A
Ethernet LAN data rates	10,100 Mbit/s
Ethernet interface type	Fast Ethernet
Harmonized System (HS) code	85044095
Indication
LED indicators	PoE, Power
Logistics data
Country of origin	China
Harmonized System (HS) code	85044095
