Description

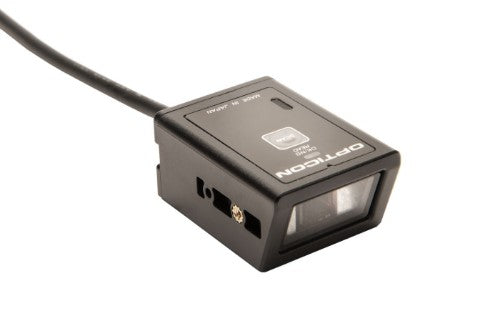

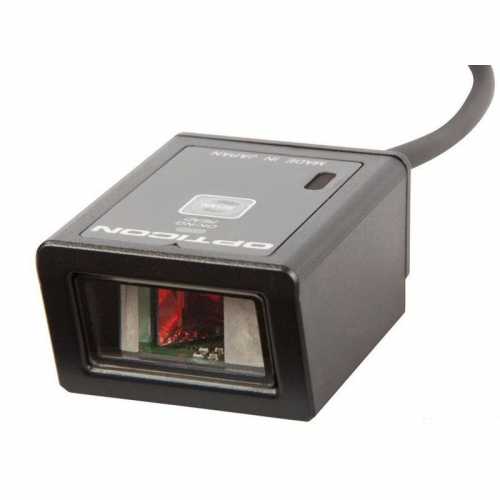

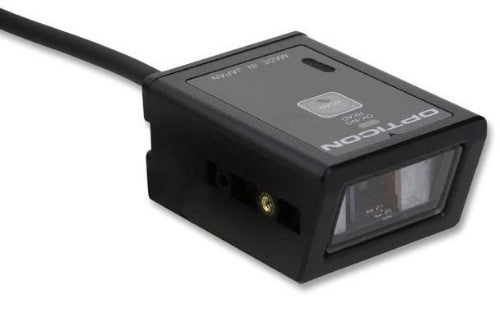

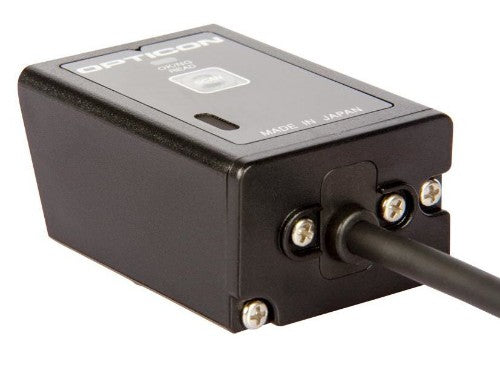

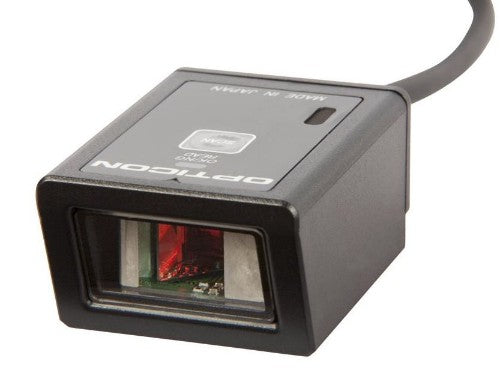

NLV-1001 - 1 LED, 650 nm, 100 scans/sec, R>15 mm (EAN8), R>20 mm (EAN13), USBHID
The NLV1001 is equipped with a compact ABS housing with 2 different mounting options. This stationary scanner is available with an RS232, USB (HID/VCP) and Keyboard Wedge interface, to fit any design and implementation requirement.
Description
This reliable fixed position scanner employs an aggressive laser scan engine that reads at a rate of 100 scans per second. The integrated auto-trigger mode enables hands-free operation. The NLV1001 offers a wide variety of configurable options for easy integration in your business process.The NLV1001 is equipped with a compact ABS housing with 2 different mounting options. This stationary scanner is available with an RS232, USB (HID/VCP) and Keyboard Wedge interface, to fit any design and implementation requirement.
Specifications
| Scanning | |
|---|---|
| Wavelength | 650 nm |
| Tilt reading angle | -20 - 20° |
| Read rate (max) | 100 reads/s |
| Pitch reading angle | -30 - 30° |
| Decoding standards | JAN/UPC/EAN, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey |
| Ports & interfaces | |
| Standard interfaces | USB |
| Performance | |
| Product colour | Black |
| Certification | CE, FCC, VCCI, RoHS, JIS-C-6802, IEC 60825-1, FDA CDRH |
| Design | |
| Product colour | Black |
| Certification | CE, FCC, VCCI, RoHS, JIS-C-6802, IEC 60825-1, FDA CDRH |
| Weight & dimensions | |
| Weight | 60 g |
| Technical details | |
| Product colour | Black |
| Certification | CE, FCC, VCCI, RoHS, JIS-C-6802, IEC 60825-1, FDA CDRH |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
