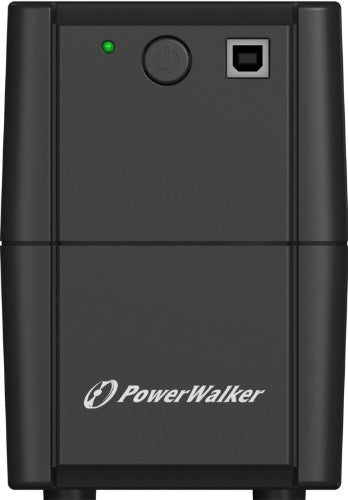

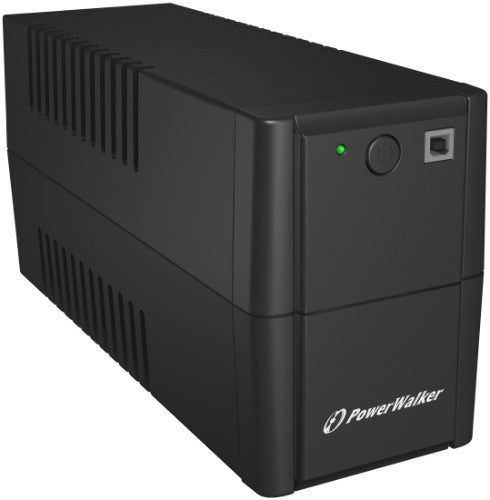

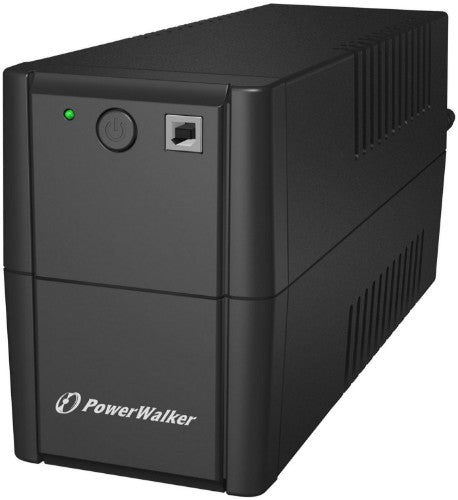

PowerWalker VI 650 SE uninterruptible power supply (UPS) Line-Interactive 0.65 kVA 360 W 2 AC outlet(s)

PowerWalker VI 650 SE, 650VA/360W, 1x 12V/7Ah, USB, RJ-11, WinPower

Description

A Line- Interactive UPS offers backup function and automatic voltage regulation (AVR). AVR regulates voltage to the appropriate level by decreasing it during surges or swells or increasing it during a sag or burnout. The advantage is a better protection for sensitive IT- and household equipment and avoids damage caused by voltage up- and downturn.

AVR function also benefits the battery lifetime. As long as voltage level is not lower than 70% to 90%, or higher than 110% to 125% AVR will adjust voltage to normal level. I case the voltage drops to a lower or higher level, the UPS will directly switch to battery mode to avoid dropouts and damage of the connected equipment.

Line- Interactive UPS offers USB port (RS-232) to connect to a multitude of operating systems for monitoring voltage, power and battery status.

Line- Interactive UPS are designed for medium cost application with moderate load levels

- 650VA Line-Interactive UPS
- USB Connection for monitoring
- Cold DC start and AVR function
- Green Power Function for energy saving

Specifications

Power
Output power	360 W
Input operation voltage (min)	170 V
Input operation voltage (max)	280 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output power capacity	0.65 kVA
Performance
Audible alarm modes	Battery replacement
UPS topology	Line-Interactive
LED indicators	Yes
Surge protection	Yes
Surge protection features	Fax, Modem, Telephone
Power protection features	Battery discharge, Over voltage, Overcharge, Overload
Audible alarm(s)	Yes
Features
Audible alarm modes	Battery replacement
UPS topology	Line-Interactive
Output power	360 W
Input operation voltage (min)	170 V
Input operation voltage (max)	280 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge protection	Yes
Surge protection features	Fax, Modem, Telephone
Power protection features	Battery discharge, Over voltage, Overcharge, Overload
Audible alarm(s)	Yes
Output power capacity	0.65 kVA

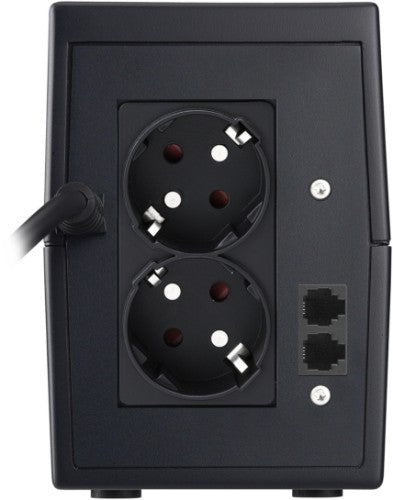

Ports & interfaces
Number of type F outputs	2
AC outlets quantity	2 AC outlet(s)
AC outlet types	Type F
USB 2.0 ports quantity	1
Modem (RJ-11) ports	2
Battery
Battery voltage	12 V
Battery capacity	7 Ah
Cold start	Yes
Design
Form factor	Mini Tower
LED indicators	Yes
Product colour	Black
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Harmonized System (HS) code	85078000
Weight & dimensions
Package width	140 mm
Package depth	330 mm
Package height	223 mm
Weight	4.4 kg
Width	100 mm
Height	143 mm
Depth	279 mm
Packaging data
Package width	140 mm
Package depth	330 mm
Package height	223 mm
Bundled software	WinPower
Logistics data
Harmonized System (HS) code	85078000
Packaging content
Bundled software	WinPower
