Corded, 6.5cm Window, USB, RS-232, KBW, Black
Description

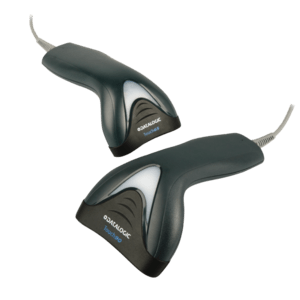

The Touch TD1100 readers are available with the option of two different sizes of reading windows: 6.5 cm / 2.6 in (TD1100-65) for reading standard bar codes or 9.0 cm / 3.5 in (TD1100-90) for reading wide bar codes. Both options are provided with a complete all-in-one multi-interface solution including RS-232, USB and Keyboard Wedge (TD1130) and with USB or RS-232 / Keyboard Wedge interfaces (TD1120/TD1170). All models include the new innovative 'read-through' holder. Cables, power cords and supplies are all sold separately.
Specifications
| Scanning |
|---|
| Yaw reading angle |
-70 - 70° |
| Working distance |
15 cm |
| Wavelength |
640 nm |
| Tilt reading angle |
-45 - 45° |
| Tilt angle range |
-45 - 45° |
| Pitch reading angle |
-65 - 65° |
| Maximum scan width |
6.5 cm |
| Light levels (direct sunlight) |
0 - 20000 lx |
| Decoding standards |
1D / Linear
GS1 |
| Ports & interfaces |
|---|
| Bluetooth |
No |
| Standard interfaces |
USB, RS-232, Keyboard wedge |
| Performance |
|---|
| International Protection (IP) code |
IP30 |
| Product colour |
Black |
| Certification |
RoHS |
| Buzzer |
Yes |
| Light levels (direct sunlight) |
0 - 20000 lx |
| Design |
|---|
| International Protection (IP) code |
IP30 |
| Product colour |
Black |
| Certification |
RoHS |
| Power |
|---|
| Power consumption |
100 mA |
| Input voltage |
5 V |
| Weight & dimensions |
|---|
| Weight |
130 g |
| Technical details |
|---|
| Light source |
LED |
| International Protection (IP) code |
IP30 |
| Dimensions (WxDxH) |
84 x 58 x 160 mm |
| Product colour |
Black |
| Certification |
RoHS |
| Buzzer |
Yes |
| Harmonized System (HS) code |
84716070 |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Light levels (direct sunlight) |
0 - 20000 lx |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
| Other features |
|---|
| Light source |
LED |
| Dimensions (WxDxH) |
84 x 58 x 160 mm |
