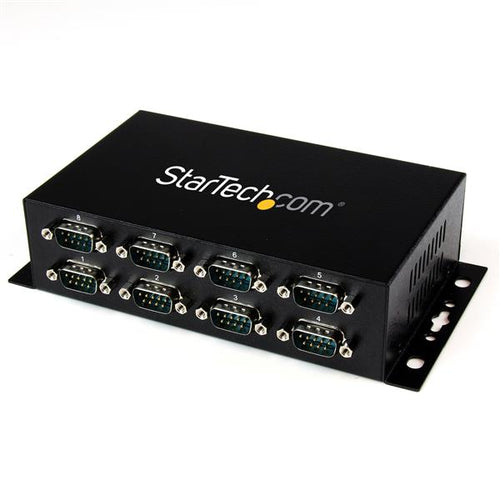

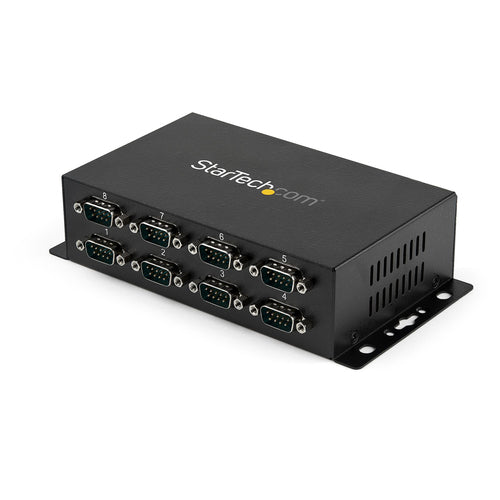

StarTech.com 8-Port USB to RS232 Hub with DIN Rail - DB9 - Industrial USB Serial Adapter - Wall-Mountable USB to Serial RS232 Adapter
The ICUSB2328I Industrial 8-Port USB to Serial Hub with DIN Rail Clips converts a single USB port into eight RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this 8 port USB to RS232 Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the USB serial hub ports.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Description
Add 8 DIN Rail-mountable RS232 Serial ports to any system through USBThe ICUSB2328I Industrial 8-Port USB to Serial Hub with DIN Rail Clips converts a single USB port into eight RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this 8 port USB to RS232 Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the USB serial hub ports.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | USB 2.0 Type-B |
| RS-232 ports | 8 |
| Hub interfaces | Serial |
| Card reader integrated | No |
| Ports quantity | 8 |
| Features | |
| LED indicators | Activity |
| Product colour | Black |
| Housing material | Steel |
| Host interface | USB 2.0 Type-B |
| Power | |
| Input current | 0.25 A |
| Power plug type | Type M |
| USB powered | Yes |
| Input voltage | 5 V |
| Technical details | |
| Product colour | Black |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Performance | |
| Card reader integrated | No |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| FIFO (First In, First Out) | 4048 B |
| Baud rate | 921.6 Kbit/s |
| Mean time between failures (MTBF) | 146300 h |
| Parity bit | Even, Mark, No, Odd, Space |
| Harmonized System (HS) code | 84719000 |
| System requirements | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Other operating systems supported | Windows XP Embedded |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Storage | |
| Card reader integrated | No |
| Weight & dimensions | |
| Weight | 544 g |
| Width | 100 mm |
| Depth | 180 mm |
| Height | 43.2 mm |
| Package width | 296 mm |
| Package depth | 191 mm |
| Package height | 71 mm |
| Package weight | 862 g |
| Packaging data | |
| Package width | 296 mm |
| Package depth | 191 mm |
| Package height | 71 mm |
| Package weight | 862 g |
| Packaging content | |
| Manual | Yes |
| Cables included | USB |
| Drivers included | Yes |
| DIN rail kit included | Yes |
| Design | |
| LED indicators | Activity |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Indication | |
| LED indicators | Activity |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Master (outer) case width | 405 mm |
| Master (outer) case length | 510 mm |
| Master (outer) case height | 320 mm |
| Products per master (outer) case | 14 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Other features | |
| Chipset | FTDI - FT232RL |
