Description
LX Sit-Stand Wall Arm, Capacity 7–25 lbs / 3.2–11.3 kg
- Extends LCD up to 33" (84 cm); push your display out of the way when not in use
- Increase viewing comfort—help reduce eye, back and neck strain
- Upgrade LCD monitors and TVs with improved ergonomic adjustment
- Patented CF motion technology provides premium ease-of-use adjustment

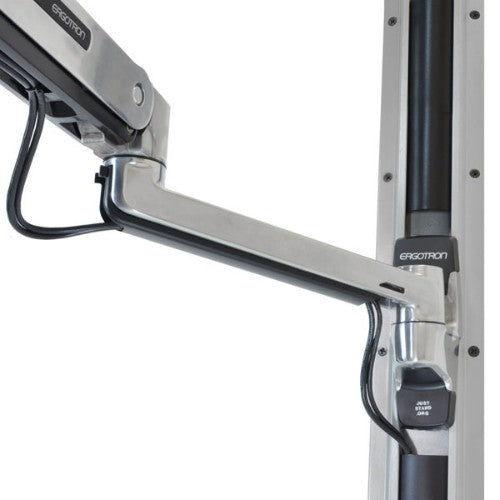

- Cable management feature routes cables under the arm, out of the way
- Ideal for space-constrained spaces—folds to within 4.5" (12 cm) of wall in storage position
- Secure installation—locking connections between arm, extension and base
- Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment
Key Features
- Comfortable fit
- More motion
- Saves space
- Large extension
- Sleek build
- Quality design
Reasons To Buy
Comfortable fit
Offers full monitor movement and improved ergonomicsMore motion
20" (51 cm) of height adjustment lets you work sitting or standingSaves space
Folds within inches of the wall when not in useLarge extension
Screen can extend 33" (84 cm) with 62" (157 cm) of side-to-side motionSleek build
Streamlined look enhances your work areaQuality design
Built for thousands of movements by passing 10,000-cycle testDescription
- 20-inch (51 cm) height range allows users to move between sitting and standing positions while they interact with the display- Extends LCD up to 33" (84 cm); push your display out of the way when not in use
- Increase viewing comfort—help reduce eye, back and neck strain
- Upgrade LCD monitors and TVs with improved ergonomic adjustment
- Patented CF motion technology provides premium ease-of-use adjustment
- Cable management feature routes cables under the arm, out of the way
- Ideal for space-constrained spaces—folds to within 4.5" (12 cm) of wall in storage position
- Secure installation—locking connections between arm, extension and base
- Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment
Specifications
| Mounting | |
|---|---|
| Panel mounting interface | 75 x 75,100 x 100,200 x 100 |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 100 mm |
| Maximum weight capacity | 11.3 kg |
| Maximum screen size | 106.7 cm (42") |
| Ergonomics | |
| Tilt angle range | -75 - 75° |
| Angle of rotation | 360° |
| Pan range | 0 - 360° |
| Design | |
| Product colour | Stainless steel |
| Technical details | |
| Mounting type | Wall |
| Product colour | Stainless steel |
| Weight & dimensions | |
| Weight | 5.12 kg |
| Package width | 560 mm |
| Package depth | 280 mm |
| Package height | 190 mm |
| Package weight | 5.7 kg |
| Packaging data | |
| Package width | 560 mm |
| Package depth | 280 mm |
| Package height | 190 mm |
| Package weight | 5.7 kg |
| Manual | Yes |
| Packaging content | |
| Manual | Yes |
| Other features | |
| Lift | 51 cm |
| Mounting type | Wall |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
