Description

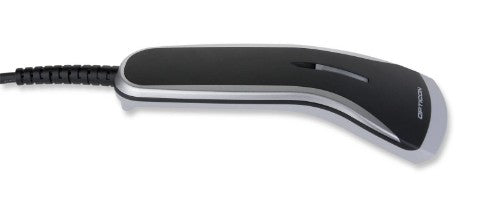

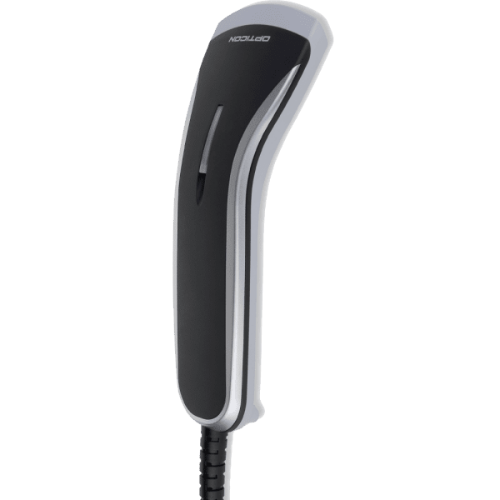

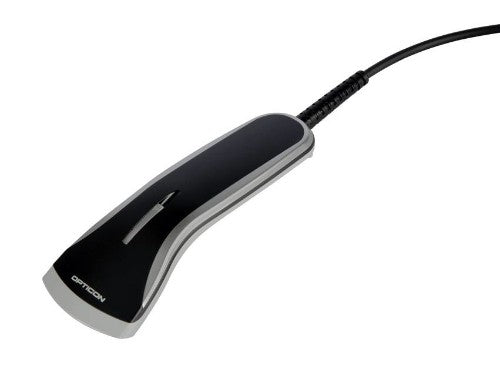

OPR2001, 1 LED (red/green/orange), DB9 PTF connector with external power supply, USB connector, Light source 650 nm visible laser diode
This sleek barcode reader features a compact and stylish yet lightweight design. The OPR2001's uniquely ergonomic design and comfortable housing not only makes it a natural fit to your hand, but also gives it a comfortable feel.
The OPR2001 features a speed of 100 scans per second. This high performance laser scanner provides a fast and accurate scan, even when barcodes are printed with low contrast.
Easy scanning

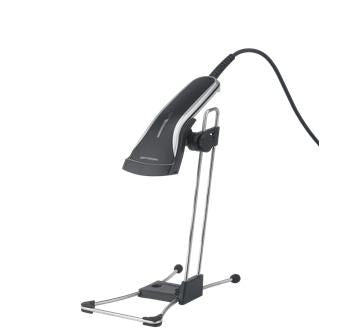

The integrated auto trigger mode together with the dedicated stand enables hands-free operation. Available in black and white, the OPR2001 uses very little counter space and blends well with other office furniture. This ultra-lightweight, yet solid scanner withstands drops up to 1.5 meter onto concrete.
Plug & play
Available in USB, RS232 and Keyboard Wedge connectivity options, the OPR2001 can easily be integrated into any host computer system as a plug and play device.
Description
OPR2001This sleek barcode reader features a compact and stylish yet lightweight design. The OPR2001's uniquely ergonomic design and comfortable housing not only makes it a natural fit to your hand, but also gives it a comfortable feel.
The OPR2001 features a speed of 100 scans per second. This high performance laser scanner provides a fast and accurate scan, even when barcodes are printed with low contrast.
Easy scanning
The integrated auto trigger mode together with the dedicated stand enables hands-free operation. Available in black and white, the OPR2001 uses very little counter space and blends well with other office furniture. This ultra-lightweight, yet solid scanner withstands drops up to 1.5 meter onto concrete.
Plug & play
Available in USB, RS232 and Keyboard Wedge connectivity options, the OPR2001 can easily be integrated into any host computer system as a plug and play device.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128) |
| Yaw reading angle | -20 - 20° |
| Wavelength | 650 nm |
| Tilt reading angle | -20 - 20° |
| Sensor type | Laser |
| Scanner type | 1D |
| Read rate (max) | 100 reads/s |
| Pitch reading angle | -35 - 35° |
| Light levels (direct sunlight) | 0 - 50000 lx |
| Ports & interfaces | |
| Connectivity technology | Wired |
| USB version | 1.1 |
| Cable length | 1.5 m |
| Standard interfaces | USB |
| Performance | |
| LED indicators | Yes |
| International Protection (IP) code | IP42 |
| Product colour | Black, Grey |
| Buzzer | Yes |
| Light levels (direct sunlight) | 0 - 50000 lx |
| Design | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP42 |
| Product colour | Black, Grey |
| Power | |
| Power consumption | 150 mA |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 31 mm |
| Height | 151 mm |
| Weight | 60 g |
| Technical details | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP42 |
| Product colour | Black, Grey |
| Buzzer | Yes |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Light levels (direct sunlight) | 0 - 50000 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
