Description
OPR3201, 1 LED (red/green/orange), Buzzer, 1 scan key, 650 nm visible laser diode, Bi-directional scanning, 100 scans/sec, Ver. 1.1, HID/VCP, USB-A connector

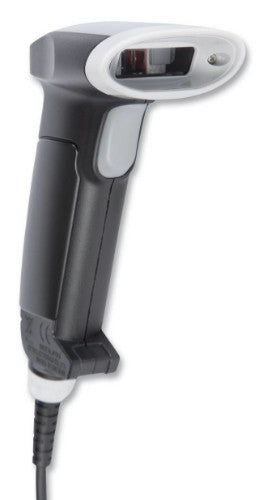

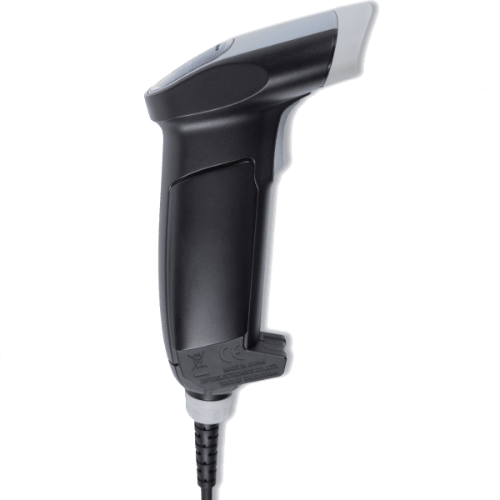

This 1D barcode laser scanner with pistol grip enables reliable scanning. The OPR3201 weighs only 80 grams, which is extremely light for a gun type scanner. This solid scanner withstands drops up to 1.5 meter onto concrete.
The scanning parts of the OPR3201 are positioned near the central core of the grip to stabilize the hand movement while scanning. Together with the large grip, this makes it easier and more comfortable to target the barcodes.
Plug & scan

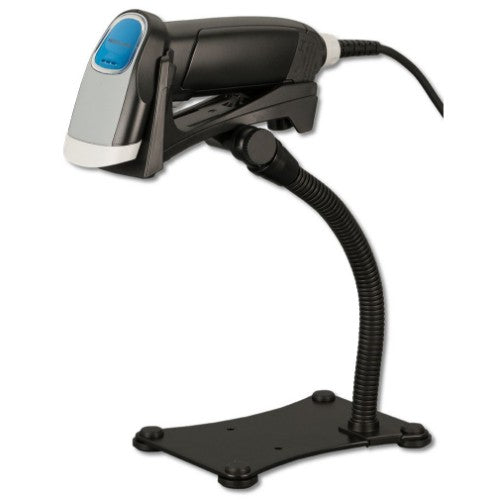

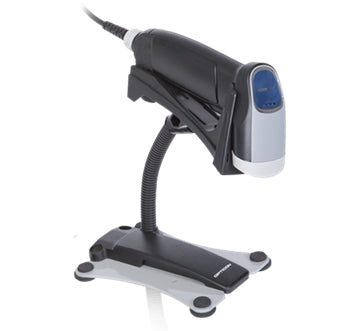

The auto-trigger feature of the OPR3201 and the complementing stand initiates automatic scanning and allows the user to operate instantly and hands free. Available in USB, RS232 and Keyboard Wedge connectivity options, the OPR3201 can be easily integrated into any host computer system as a plug and play device.
Description
OPR3201This 1D barcode laser scanner with pistol grip enables reliable scanning. The OPR3201 weighs only 80 grams, which is extremely light for a gun type scanner. This solid scanner withstands drops up to 1.5 meter onto concrete.
The scanning parts of the OPR3201 are positioned near the central core of the grip to stabilize the hand movement while scanning. Together with the large grip, this makes it easier and more comfortable to target the barcodes.
Plug & scan
The auto-trigger feature of the OPR3201 and the complementing stand initiates automatic scanning and allows the user to operate instantly and hands free. Available in USB, RS232 and Keyboard Wedge connectivity options, the OPR3201 can be easily integrated into any host computer system as a plug and play device.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128) |
| Yaw reading angle | -50 - 50° |
| Wavelength | 650 nm |
| Tilt reading angle | -20 - 20° |
| Sensor type | Laser |
| Scanner type | 1D |
| Read rate (max) | 100 reads/s |
| Pitch reading angle | -35 - 35° |
| Light levels (direct sunlight) | 0 - 50000 lx |
| Ports & interfaces | |
| Connectivity technology | Wired |
| USB version | 1.1 |
| Cable length | 1.5 m |
| Standard interfaces | USB |
| Performance | |
| LED indicators | Yes |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Buzzer | Yes |
| Light levels (direct sunlight) | 0 - 50000 lx |
| Design | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Power | |
| Power consumption | 100 mA |
| Power source type | AC |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 109 mm |
| Height | 149 mm |
| Weight | 80 g |
| Technical details | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Buzzer | Yes |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Light levels (direct sunlight) | 0 - 50000 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
