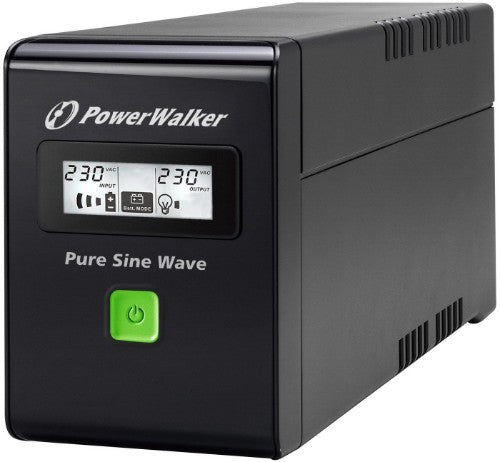

PowerWalker VI 600 SW uninterruptible power supply (UPS) 0.6 kVA 360 W 3 AC outlet(s)

600VA / 360W, 220-240 VAC, 50/60 Hz, 2-6ms, 12V / 7Ah, LCD, USB, 3x IEC, RJ-11, RJ-45, 5.2 kg, Black

Description

With its digitalized PWM-based controller PowerWalker VI 600 SW provides a pure sine wave output especially best suitable to protect modern PC like mini servers, gaming PC, point of sale (POS) system
s and other electronic devices with APFC power supplies. Not only limited to APFC power supplies and equipped with a voltage stabilizer, this UPS will continue providing clean and stable power to connected equipment and is perfect for any home or small and medium office application.

- Pure Sine Wave
- Super smart charger to shorten charging time
- Built-in boost and buck AVR
- Auto restart while AC is recovering
- Off-mode charging
- Cold start function
- USB communication port
- RJ-11, RJ-45 surge protection
- Monitoring software included
- LCD display for status view

Specifications

Power
Output voltage regulation	10%
Output frequency regulation	1 Hz
Output power	360 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output power capacity	0.6 kVA
Performance
Hold time (max)	6 ms
Waveform	Sine
Off-mode charging	Yes
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Response time	2 ms
LED indicators	Yes
Surge protection	Yes
Surge protection features	Network
Power protection features	Overcharge, Overdischarge, Overload, Short circuit
Features
Hold time (max)	6 ms
Waveform	Sine
Output voltage regulation	10%
Output frequency regulation	1 Hz
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Response time	2 ms
Output power	360 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge protection	Yes
Surge protection features	Network
Power protection features	Overcharge, Overdischarge, Overload, Short circuit
Output power capacity	0.6 kVA
Input frequency	50/60 Hz
Ports & interfaces
AC outlets quantity	3 AC outlet(s)
AC outlet types	C13 coupler
USB 2.0 ports quantity	1
Number of output IEC jumpers	3
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
Battery
Number of batteries supported	1
Off-mode charging	Yes
Battery voltage	12 V
Battery capacity	7 Ah
Battery recharge time	4 h
Cold start	Yes
Design
Form factor	Compact
LED indicators	Yes
Product colour	Black
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Harmonized System (HS) code	85078000
Packaging data
Package dimensions (WxDxH)	385 x 140 x 228 mm
Bundled software	ViewPower
Weight & dimensions
Weight	5.2 kg
Width	328 mm
Height	145 mm
Depth	100 mm
Logistics data
Harmonized System (HS) code	85078000
Other features
Package dimensions (WxDxH)	385 x 140 x 228 mm
Packaging content
Bundled software	ViewPower
