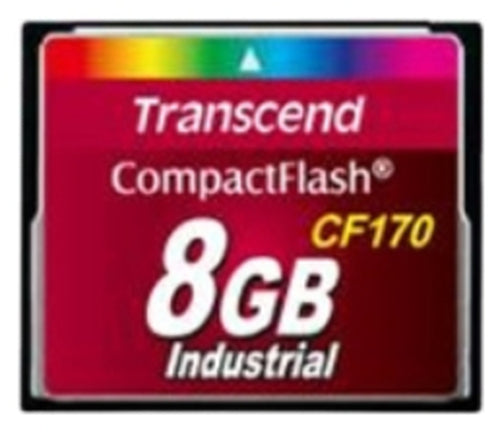

8GB, MLC, Read 90MB/s, Write 60MB/s, 0.76W
Description
Boasting high-speed data transfer rates and extra large storage space, Transcend's industrial CF170 CompactFlash cards are perfect for embedded systems, medical instruments, road surveillance systems, and other industrial applications with demanding performance and capacity requirements. Thanks to their use of StaticDataRefresh and EarlyRetirement technology, the CF170 CF cards are able to correct data errors, maintain data integrity, and extend the lifespan of their flash memory cells.
- Operation Modes: PC Card Memory Mode, PC Card IO Mode and True IDE Mode
- CompactFlash Specification V6.0 compliant
- Built-in advanced ECC and wear-leveling algorithm
- Excellent temperature flexibility, shock and vibration resistant
Specifications
| Memory |
|---|
| Capacity |
8 GB |
| Read speed |
90 MB/s |
| Write speed |
60 MB/s |
| Internal memory type |
MLC |
| Flash card type |
CompactFlash |
| Performance |
|---|
| Mean time between failures (MTBF) |
1000000 h |
| Design |
|---|
| Protection features |
Heat resistant, Shock resistant |
| Certification |
CE, FCC, BSMI |
| Features |
|---|
| Mean time between failures (MTBF) |
1000000 h |
| Protection features |
Heat resistant, Shock resistant |
| Certification |
CE, FCC, BSMI |
| Endurance |
|---|
| Mean time between failures (MTBF) |
1000000 h |
| Technical details |
|---|
| Internal memory type |
MLC |
| Protection features |
Heat resistant, Shock resistant |
| Memory voltage |
3.3,5 V |
| Capacity |
8 GB |
| Harmonized System (HS) code |
85235190 |
| Power |
|---|
| Power consumption (write) |
94.7 mA |
| Power consumption (read) |
180.4 mA |
| Memory voltage |
3.3,5 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-25 - 85 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating shock |
1500 G |
| Vibration resistance |
20 G |
| Certificates |
|---|
| Certification |
CE, FCC, BSMI |
| Weight & dimensions |
|---|
| Width |
42.8 mm |
| Depth |
3.3 mm |
| Height |
36.4 mm |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
