Description
4" 320x160 TFT, Resistive, 4036x4036, 2214x1130 DPI, USB, 200g
Compact and flat, its smooth surface lets you capture a natural signature.
The transfer of data between the tablet and the computer is also entirely secured through AES encoding.
Key Features

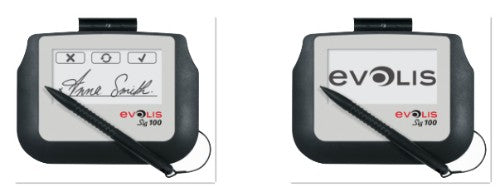

- Standby image: 1 static image
- Signature surface: 95 x 47 mm
- Signature resolution: 4036 x 4036 px / 2214 x 1130 dpi
- Linearity: +/- 1.5 %
- Stylus: Neutral
- Power: via USB cable only
- Dimensions (H x W x D): 10 x 160 x 120 mm
- Weight: 200 g
Description

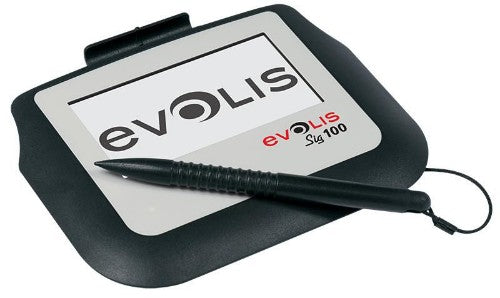

The Sig100 is a signature pad with a monochrome LCD screen, using resistive technology.Compact and flat, its smooth surface lets you capture a natural signature.
The transfer of data between the tablet and the computer is also entirely secured through AES encoding.
Specifications
| Display | |
|---|---|
| Display diagonal | 10.2 cm (4") |
| Display type | LCD |
| Native resolution | 320 x 160 pixels |
| Display technology | TFT |
| Touchscreen technology | Resistive touchscreen |
| Working area | 95 x 47 mm |
| Design | |
| Product colour | White, Black |
| Pen | |
| Pen included | Yes |
| Wireless pen | Yes |
| Battery-free pen | Yes |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 120 mm |
| Height | 10 mm |
| Weight | 200 g |
| Packaging data | |
| Package type | Box |
