Description

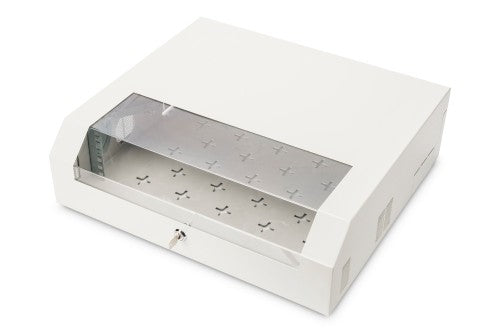

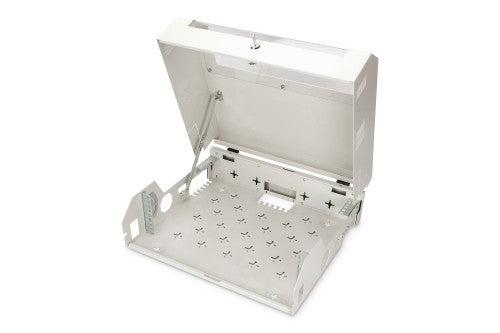

Wall mounting cabinet, SOHO, slim, 145x525x475 mm 3U rotatable, 2U fix, color grey (RAL 7035)
- Slim housing for installations where space is limited
- Door stopper mechanism allows installation in any direction on the wall, ceiling or raised floor
- 3U rotatable profile rail at the front, 2U fixed profile rail at the rear
- Pre-punched cut-outs for cable routing and fastening cable ties
- Punched-out mounting holes throughout the lower housing area for fixing a wide variety of components
- Load capacity for the installation of components: 30 kg
The SOHO, Slim wall-mounted enclosures are ideal for housing active and passive components. They are characterized by simple and time-saving installation. The modern design fits into any office or home. The enclosure has 2 separate installation options: A rotatable vertical 3U rail is attached to the front. Alternatively, this can also be positioned horizontally or at an angle. A horizontal 2U rail is attached to the rear (fixed), which can be used for passive network components, for example. The punched-out mounting holes in the entire lower housing area also allow components that are not 483 mm (19") compatible to be installed (e.g. DSL routers, etc.).
Key Features
- Protection class IP20

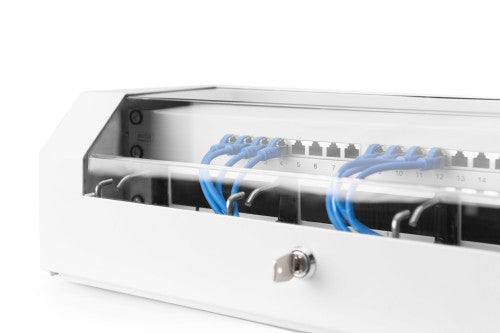

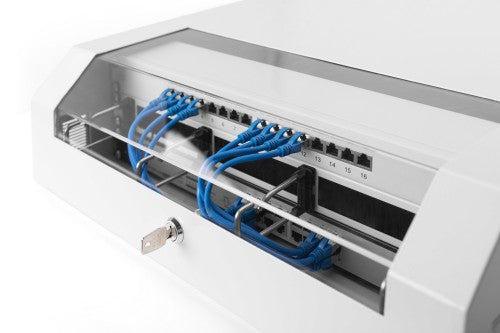

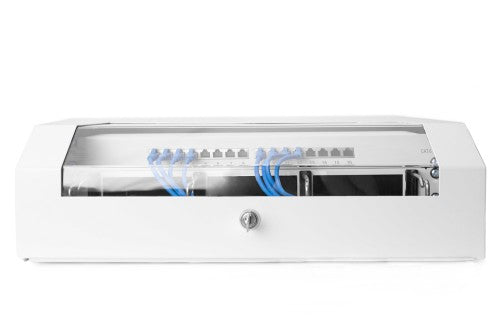

- Lockable housing with transparent polycarbonate pane

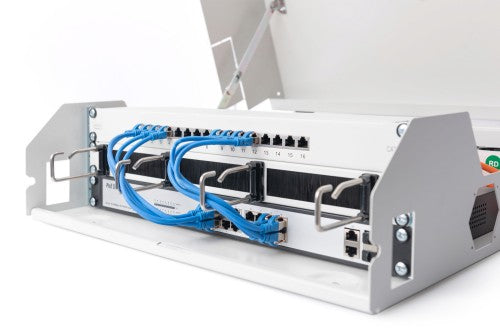

- Upper part of the housing can be opened up to 80°

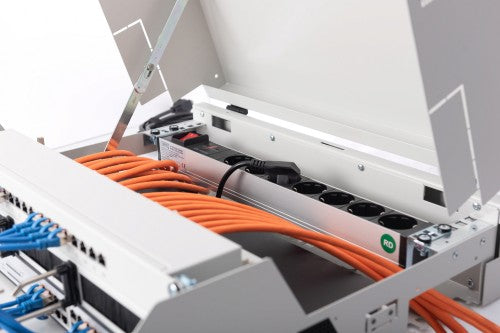

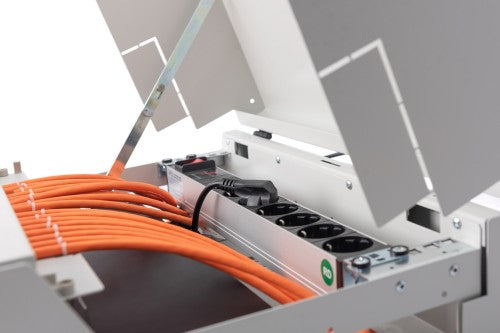

- Steel door stop mechanism keeps the door open
- 1-point four-point locking
- 2 separate 483 mm (19") installation options: 3U vertical (rotatable), 2U horizontal (fixed)
- Max. installation depth (from front vertical rail to stop on rear horizontal rail): approx. 265 mm
- Max. installation depth (from front vertical rail to rear wall stop): Approx. 355 mm
- 2.0 mm thick sheet steel with a high load-bearing capacity, powder-coated
- Pre-punched cut-outs for cable routing
- Ventilation slots for active and passive ventilation
- Area for cable ties

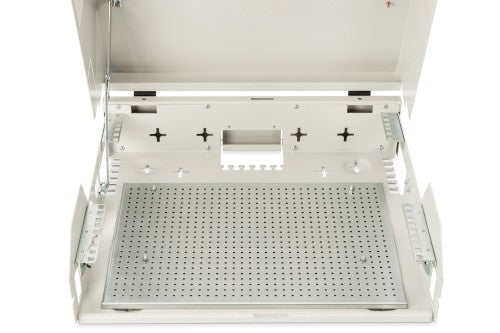

- Lower housing area with punched-out mounting holes for mounting equipment that is not 483 mm (19") compatible
- Mounting plate is optionally available
- Fan mount dimensions: 57.5 x 57.5 mm
- Hole spacing for fan mounting: 50 x 50 mm (3.5 mm diameter)
Description
DIGITUS® wall-mounted enclosures are manufactured, designed and developed to meet the high demands of IT infrastructure.- Slim housing for installations where space is limited
- Door stopper mechanism allows installation in any direction on the wall, ceiling or raised floor
- 3U rotatable profile rail at the front, 2U fixed profile rail at the rear
- Pre-punched cut-outs for cable routing and fastening cable ties
- Punched-out mounting holes throughout the lower housing area for fixing a wide variety of components
- Load capacity for the installation of components: 30 kg
The SOHO, Slim wall-mounted enclosures are ideal for housing active and passive components. They are characterized by simple and time-saving installation. The modern design fits into any office or home. The enclosure has 2 separate installation options: A rotatable vertical 3U rail is attached to the front. Alternatively, this can also be positioned horizontally or at an angle. A horizontal 2U rail is attached to the rear (fixed), which can be used for passive network components, for example. The punched-out mounting holes in the entire lower housing area also allow components that are not 483 mm (19") compatible to be installed (e.g. DSL routers, etc.).
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 3U |
| International Protection (IP) code | IP20 |
| Front door construction | Glass |
| Type | Wall mounted rack |
| Side panels included | Yes |
| Maximum weight capacity | 30 kg |
| Product colour | Grey |
| Weight & dimensions | |
| Package volume | 42400 cm³ |
| Package depth | 500 mm |
| Package width | 530 mm |
| Package weight | 9.5 kg |
| Width | 525 mm |
| Depth | 475 mm |
| Height | 145 mm |
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 30 kg |
| Packaging data | |
| Package volume | 42400 cm³ |
| Package depth | 500 mm |
| Package width | 530 mm |
| Package weight | 9.5 kg |
| Technical details | |
| Package width | 530 mm |
| Type | Wall mounted rack |
| Size (imperial) | 48.3 cm (19") |
| Side panels included | Yes |
| Harmonized System (HS) code | 85381000 |
| Rack capacity | 3U |
| International Protection (IP) code | IP20 |
| Colour | |
| Product colour | Grey |
| Packaging content | |
| Side panels included | Yes |
| Logistics data | |
| Country of origin | Turkey |
| Harmonized System (HS) code | 85381000 |
| UK Trade Tariff code | 94032080 |
