Description

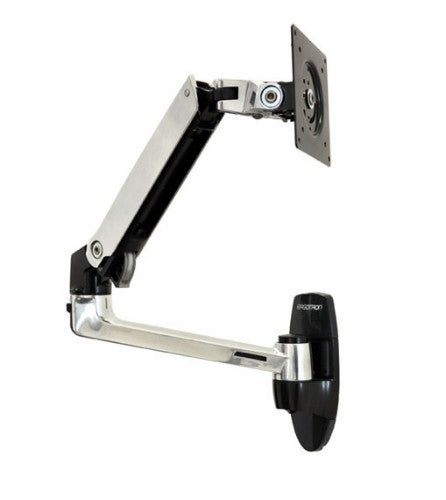

LX Wall Monitor Arm
The flexible, modular design of the Ergotron LX family of monitor arms help you to find your best view while keeping your workspace clean. Place your screen where you need it for each project, and then reclaim a space full of opportunities by folding the arm and pushing it aside during a much-needed screen break.
Key Features
- Increase viewing comfort—help reduce eye, back and neck strain
- Upgrade LCD monitors and TVs with improved ergonomic adjustment
- Designed with our Constant Force™ lift-and-pivot motion technology, displays are easily positioned with just a light touch

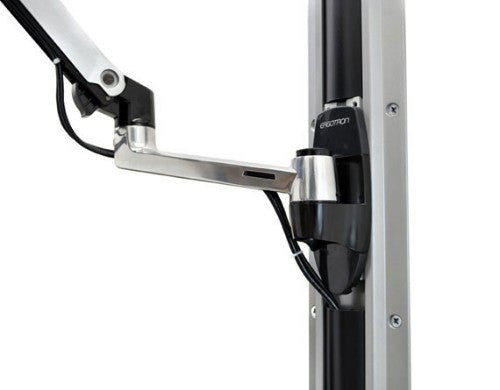

- Cable management feature routes cables under the arm, out of the way
- 13" (33 cm) height range meets the ergonomic needs of more than nine out of ten adults
- Compact design frees up space. Arm folds back over the base into a compact retracted position so it's perfect for space-constrained areas
- Passes Ergotron’s 10,000-cycle motion test
Reasons To Buy
Comfortable fit
Offers full monitor movement and improved ergonomicsMore motion
Luxury arm easily adjusts monitors up to 34" in sizeSaves space
Places screen in the best view to tackle each to-doSleek build
Streamlined look enhances your work areaEasy storage
Folds to fit within 4" (10 cm) of the wallQuality design
Built for years of use by passing our 10,000-cycle motion testDescription
Find your best view, save desk space and discover your most productive self, thanks to the LX Wall Monitor Arm. Place your screen where you need it for each project, and then reclaim a space full of opportunities by folding the arm and pushing it aside during a much-needed screen break.The flexible, modular design of the Ergotron LX family of monitor arms help you to find your best view while keeping your workspace clean. Place your screen where you need it for each project, and then reclaim a space full of opportunities by folding the arm and pushing it aside during a much-needed screen break.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 11.3 kg |
| Minimum screen size | 50.8 cm (20") |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Screws |
| Maximum weight capacity | 11.3 kg |
| Maximum screen size | 86.4 cm (34") |

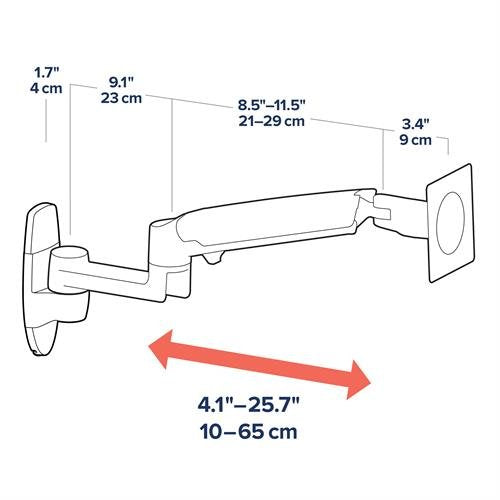

| Extension arm (max) | 64 cm |
| Suitable for TV | Yes |
| Ergonomics | |

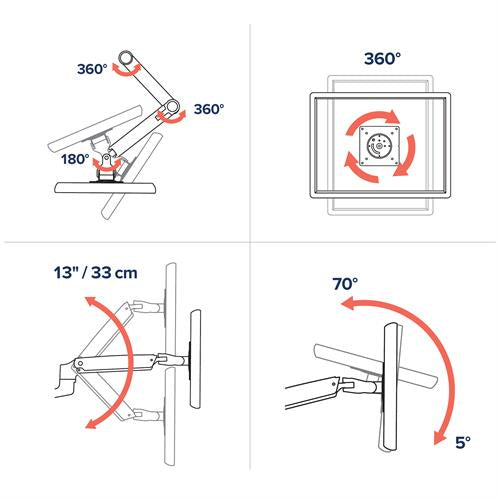

| Height adjustment range | 0 - 330 mm |
| Tilt angle range | 75 |
| Angle of rotation | 360° |
| Pan range | 360 |
| Tilt adjustment | Yes |
| Design | |
| Easy to install | Yes |
| Product colour | Aluminium |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Steel |
| Orientation | Landscape/Portrait |
| Display | |
| Mounting interface | VESA |
| Technical details | |
| Mounting type | Wall |
| Product colour | Aluminium |
| Sustainability compliance | Yes |
| Warranty period | 10 year(s) |
| Compliance certificates | ETL |
| Weight & dimensions | |
| Depth | 100 mm |
| Weight | 2.5 kg |
| Weight (imperial) | 2.49 kg (5.5 lbs) |
| Package width | 195 mm |
| Package depth | 175 mm |
| Package height | 445 mm |
| Package type | Box |
| Package weight | 2.8 kg |
| Packaging data | |
| Package width | 195 mm |
| Package depth | 175 mm |
| Package height | 445 mm |
| Package type | Box |
| Package weight | 2.8 kg |
| Quantity per pack | 1 pc(s) |
| Manual | Yes |
| Packaging content | |
| Manual | Yes |
| VESA mount included | Yes |
| Mounting kit | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Other features | |
| Mounting interface | VESA |
| Warranty period | 10 year(s) |
| Compliance certificates | ETL |
| Mounting type | Wall |
| Mounting | Screws |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
