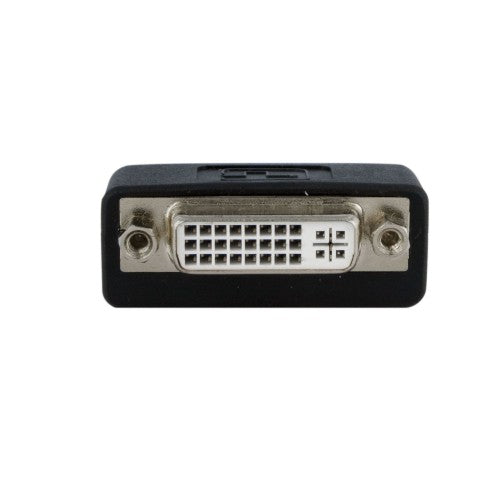

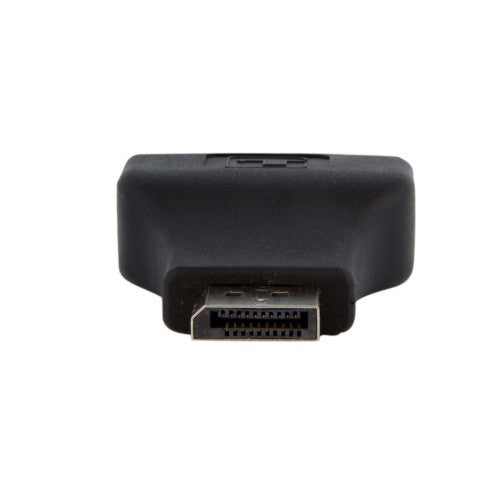

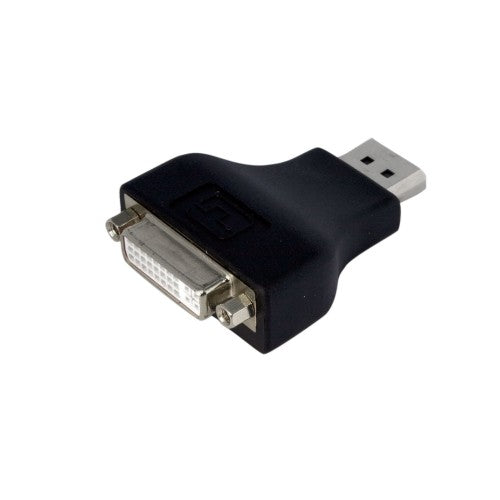

StarTech.com Compact DisplayPort to DVI Adapter - DisplayPort to DVI-D Adapter/Video Converter 1080p - DP to DVI Monitor/Display Adapter Dongle - DP to DVI Adapter - Latching DP Connector

StarTech.com Compact DisplayPort to DVI Adapter - DisplayPort to DVI-D Adapter/Video Converter 1080p - DP to DVI Monitor/Display Adapter Dongle - DP to DVI Adapter - Latching DP Connector (DP2DVIADAP)

Key Features

• DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-I (digital only DVI-D) single-link adapter connects a DVI display, monitor or projector / 1920x1200/1080p at 60Hz; HDCP 1.3; EDID & DDC pass-through ensure compatibility between source & display
• COMPATIBILITY: Passive video converter supports DP++ source incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
• SMALL FORM FACTOR: With no attached cable, the adapter is ideal for permanent setups in boardrooms, connecting directly to your DVI cable / Use to connect primary or secondary display / Compact design makes it easy to carry between home and office
• STABLE CONNECTION: Non-latching DP connector is easy to disconnect from a hard to reach source / Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection / Tested w/ DVI cables up to 25ft
• EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works w/ any OS including Windows, Ubuntu & macOS; DisplayPort male to DVI female adapter dongle / Connector is DVI-I, however only a digital signal (DVI-D) passes through

Description

Connect your DVI monitor to a DisplayPort equipped computer

The StarTech.com DP2DVIADAP DisplayPort DVI adapter lets you connect a DVI-D display to a DisplayPort video source (e.g. DisplayPort video cards, etc.), eliminating the expense of having to upgrade to a DisplayPort enabled display while providing a hassle-free connection to any DisplayPort video card/signal source.

The DVI/DisplayPort adapter supports display resolutions up to 1920x1200, allowing you to take full advantage of single link DVI capability.

DP2DVIADAP is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces
DisplayPort version	1.2
Connector 2	DVI-I
Connector 1	DisplayPort
Connector 2 gender	Female
Connector 1 gender	Male
Connector 2 form factor	Straight
Connector 1 form factor	Straight
Performance
Maximum refresh rate	60 Hz
Maximum resolution (DVI)	1920 x 1200 pixels
Supported video modes	1080p
Maximum resolution	1920 x 1200 pixels
Product colour	Black
HDCP	Yes
DisplayPort version	1.2
Certification	CE, FCC, REACH
Certificates
Certification	CE, FCC, REACH
Compliance certificates	RoHS
Weight & dimensions
Width	40 mm
Weight	18 g
Height	11 mm
Depth	63 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	90 mm
Package height	19 mm
Package depth	125 mm
Package weight	38 g
Technical details
Maximum resolution	1920 x 1200 pixels
Product colour	Black
Compliance certificates	RoHS
Design
Product colour	Black
Certification	CE, FCC, REACH
Logistics data
Products per master (outer) case	500 pc(s)
Master (outer) case width	420 mm
Master (outer) case length	435 mm
Master (outer) case height	415 mm
