Description

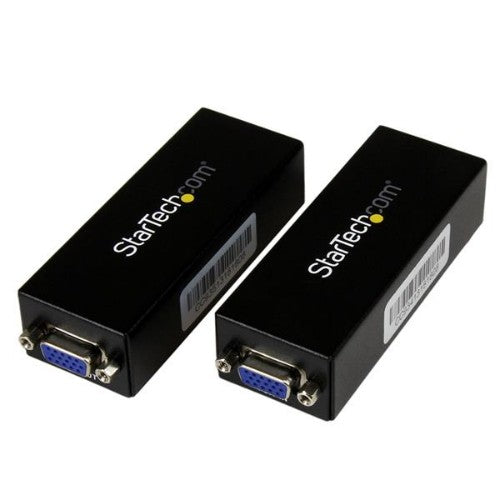

StarTech.com VGA Over CAT5 Extender – 250 ft (80m) – 1 Local and 1 Remote Unit - VGA Video Over Ethernet Extender Kit (ST121UTPEP)
The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5 or better UTP cable, terminated with RJ45 connectors).
Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.
To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Description
Extend a VGA signal to a remote display using Cat5 cablingThe ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5 or better UTP cable, terminated with RJ45 connectors).
Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.
To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Features | |
|---|---|
| Material | Aluminium |
| Plug and Play | Yes |
| Daisy chain | No |
| Certification | CE, FCC, REACH, TAA |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5 |
| Maximum transfer distance | 80 m |
| Supported graphics resolutions | 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA) |
| Product colour | Black |
| Technical details | |
| Material | Aluminium |
| Plug and Play | Yes |
| Daisy chain | No |
| Certification | CE, FCC, REACH, TAA |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5 |
| Maximum transfer distance | 80 m |
| Supported graphics resolutions | 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA) |
| Product colour | Black |
| Compliance certificates | RoHS |
| Ports & interfaces | |

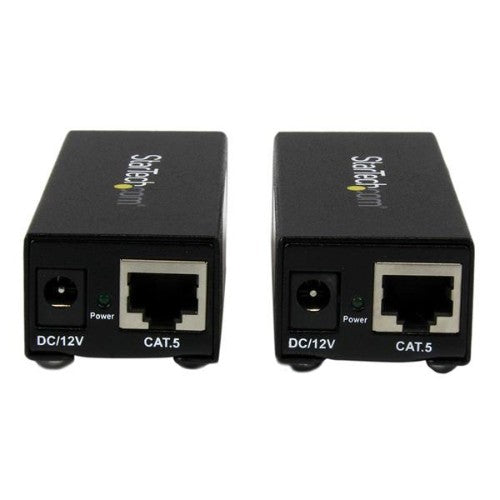

| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |

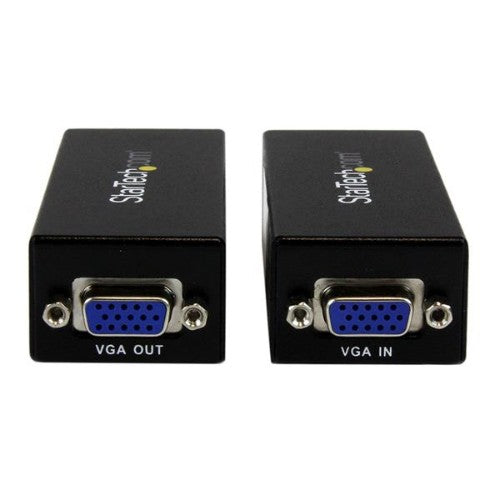

| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
| DC-in jack | Yes |
| Power | |
| Output current | 0.6 A |
| Power plug type | Type M |
| Power consumption (typical) | 7.2 W |
| External power adapter | Yes |
| Operating voltage | 12 V |
| Weight & dimensions | |
| Width | 138 mm |
| Package depth | 315 mm |
| Height | 25 mm |
| Depth | 100 mm |
| Package width | 140 mm |
| Package height | 60 mm |
| Weight | 263 g |
| Package weight | 795 g |
| Packaging data | |
| Package depth | 315 mm |
| Package width | 140 mm |
| Package height | 60 mm |
| Package weight | 795 g |

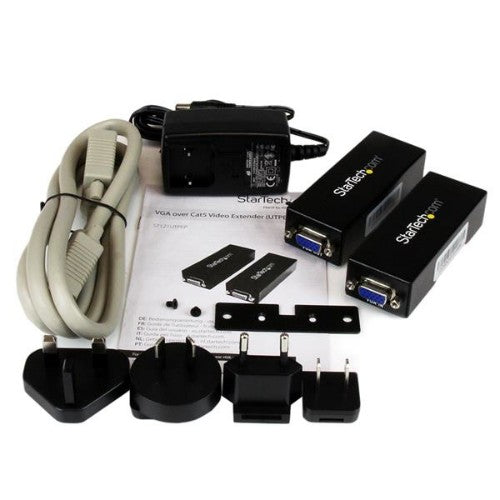

| Packaging content | |
| Mounting brackets included | Yes |
| Cables included | VGA |
| AC adapter included | Yes |
| Manual | Yes |
| Included power plug types | AU, EU, NA, UK |
