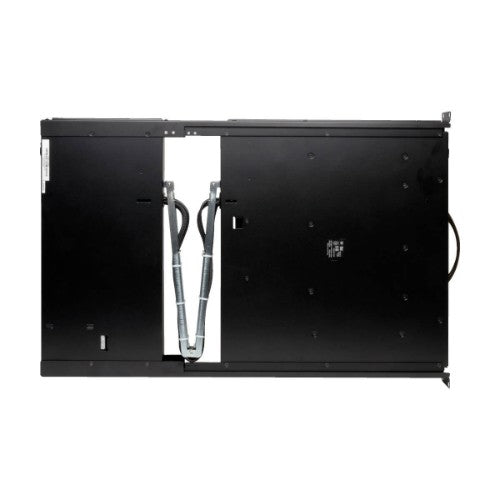

1U Rack-Mount Console with 19 in. LCD, TAA
Key Features
- Included KVM cable kit allows connection to a PS/2 computer or KVM switch
- 19 in. color LCD supports resolutions up to 1366 x 768
- USB pass-through port allows connection of flash drive, card reader or other USB device
- Comes with hardware for mounting in 1U of space in a standard 19 in. rack
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Description

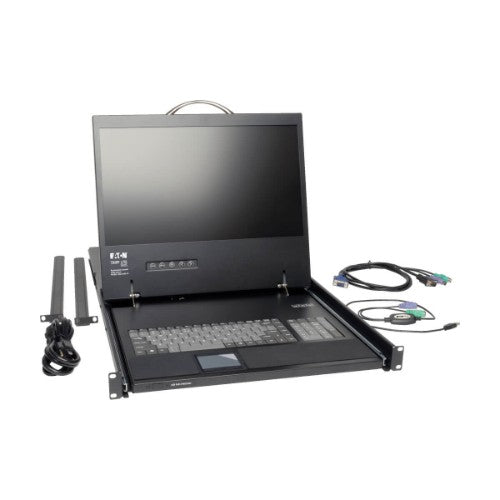

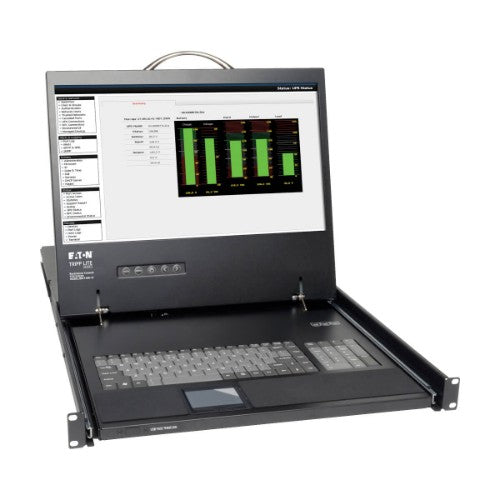

The B021-000-19 1U rack-mount console features an integrated 19-inch LCD display, full 88-key keyboard and touchpad, all in a 1U rack-mountable housing. The included KVM cable kit allows for connection to a PS/2 computer or KVM. A PS/2 to USB adapter is included, which can be used to connect to a USB computer or KVM. The unit features a USB 2.0 pass-through port for connection of a USB peripheral, such as a flash drive, CAC card reader, etc. Your peripheral device connects to the USB-A port on the front of the unit, and your computer connects to the USB-A port on the back of the unit using a UR020-Series M/M cable. Constructed of heavy-duty steel housing. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Specifications
| Display |
|---|
| Display |
LCD |
| Display diagonal |
48.3 cm (19") |
| On Screen Display (OSD) |
Yes |
| Display resolution |
1024 x 768 pixels |
| Technical details |
|---|
| Country of origin |
Taiwan |
| Height (in Rack Units) |
1 |
| Weight (imperial) |
12.2 kg (27 lbs) |
| Ports & interfaces |
|---|
| I/O ports |
HD15 (Female) |
| Weight & dimensions |
|---|
| Dimensions (WxDxH) |
482.6 x 599.4 x 43.1 mm |
| Weight |
14 kg |
| Width |
449.3 mm |
| Height |
43.4 mm |
| Depth |
722.4 mm |
| Other features |
|---|
| Dimensions (WxDxH) |
482.6 x 599.4 x 43.1 mm |
| Packaging data |
|---|
| Package width |
602 mm |
| Package depth |
825.5 mm |
| Package height |
152.4 mm |
| Package weight |
17.6 kg |
| Logistics data |
|---|
| Master (outer) case width |
602 mm |
| Master (outer) case length |
825.5 mm |
| Master (outer) case height |
152.4 mm |
| Master (outer) case gross weight |
17.6 kg |
| Products per master (outer) case |
1 pc(s) |
