Description

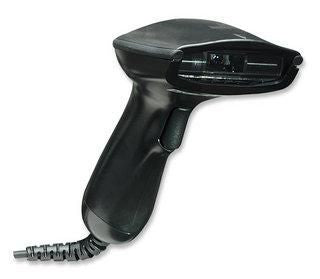

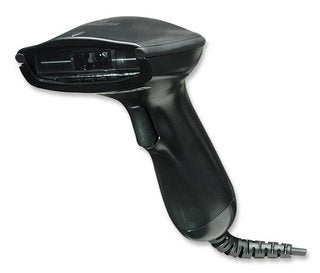

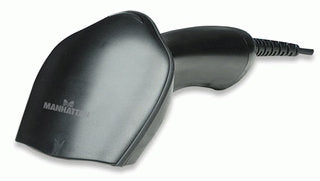

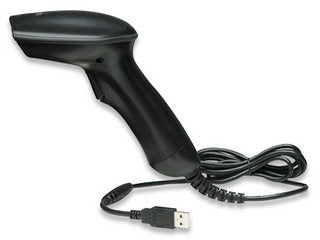

Long Range CCD Handheld Barcode Scanner, USB, 500mm Scan Depth, Cable 1.5m, Max Ambient Light 30,000 lux (sunlight), Black, Three Year Warranty
Manhattan CCD Long-Range Contact Barcode Scanners deliver high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. The CCD (charge-coupled device) scan engine features no moving parts for years of reliable service reading popular barcodes, including UPC, EAN and GS1 DataBar. Easy to implement and simple to use, a built-in keyboard wedge decoder sends scanned data to an active application where it appears as if it was manually typed or directly keyed into the computer. Its versatile switchable USB or PS/2 cable interface integrates with most PCs without an external power supply. With a scan rate of 500 scans per second and an accurate read range of up to 50 cm (20 in.), this model offers an effective and efficient, all-purpose daily scanning solution for point-of-sale, shipping, warehousing, office and industrial applications to minimize manual data entry, speed transactions and reduce errors.
Key Features
- Helps speed data entry, reduce errors and improve efficiency – ideal for retail transactions and automated processes
- Keyboard Wedge Decoder displays data as if directly entered from keyboard
- Wide scan field provides quick, accurate reads with up to 500 scans per second up to 50 cm (20 in.) away
- Detects many popular symbologies including UPC, EAN and GS1 DataBar
- Switchable interface integrates with most PCs
- Easy to install and use without software or special training
- Three-Year Warranty
Description
Improve speed, accuracy and productivity_x000D_Manhattan CCD Long-Range Contact Barcode Scanners deliver high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. The CCD (charge-coupled device) scan engine features no moving parts for years of reliable service reading popular barcodes, including UPC, EAN and GS1 DataBar. Easy to implement and simple to use, a built-in keyboard wedge decoder sends scanned data to an active application where it appears as if it was manually typed or directly keyed into the computer. Its versatile switchable USB or PS/2 cable interface integrates with most PCs without an external power supply. With a scan rate of 500 scans per second and an accurate read range of up to 50 cm (20 in.), this model offers an effective and efficient, all-purpose daily scanning solution for point-of-sale, shipping, warehousing, office and industrial applications to minimize manual data entry, speed transactions and reduce errors.
Specifications
| Scanning | |
|---|---|
| Scanner resolution | 0.1 mm |
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, Industrial 2 of 5, Interleaved 2 of 5, JAN, MSI, Plessey, Telepen |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Sensor type | CCD |
| Scanner type | 1D |
| Read rate (max) | 500 reads/s |
| Light levels (direct sunlight) | 0 - 30000 lx |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Cable length | 1.5 m |
| Standard interfaces | USB |
| Performance | |
| Housing material | Acrylonitrile butadiene styrene (ABS), Rubber |
| Product colour | Black |
| Certification | FCC CE |
| Light levels (direct sunlight) | 0 - 30000 lx |
| Design | |
| Type | Handheld bar code reader |
| Housing material | Acrylonitrile butadiene styrene (ABS), Rubber |
| Product colour | Black |
| Certification | FCC CE |
| Power | |
| Power consumption | 150 mA |
| Power source type | USB |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 90 mm |
| Depth | 193 mm |
| Height | 72 mm |
| Weight | 440 g |
| Technical details | |
| Type | Handheld bar code reader |
| Housing material | Acrylonitrile butadiene styrene (ABS), Rubber |
| Product colour | Black |
| Certification | FCC CE |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Light levels (direct sunlight) | 0 - 30000 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
