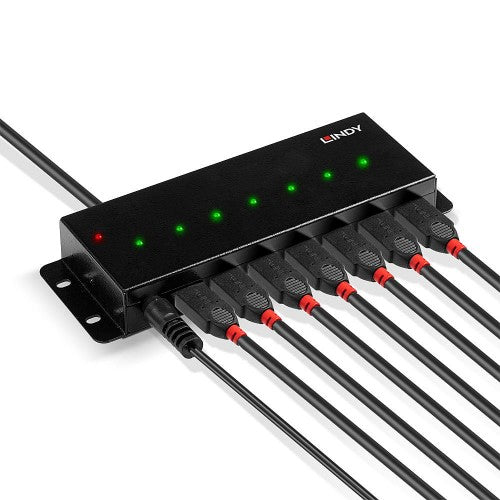

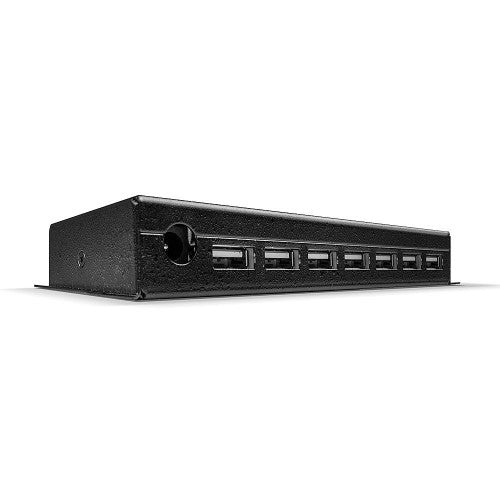

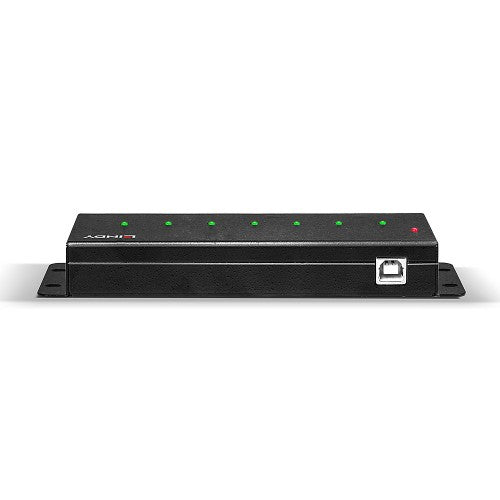

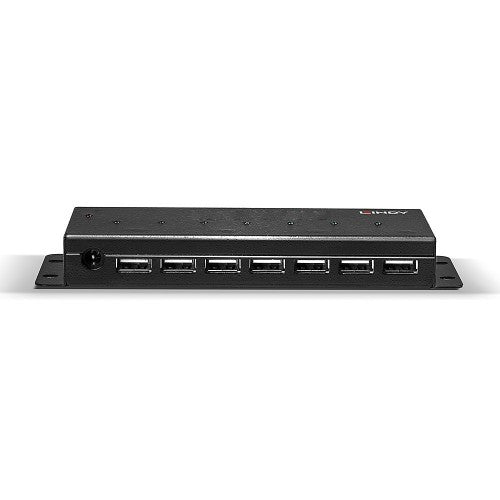

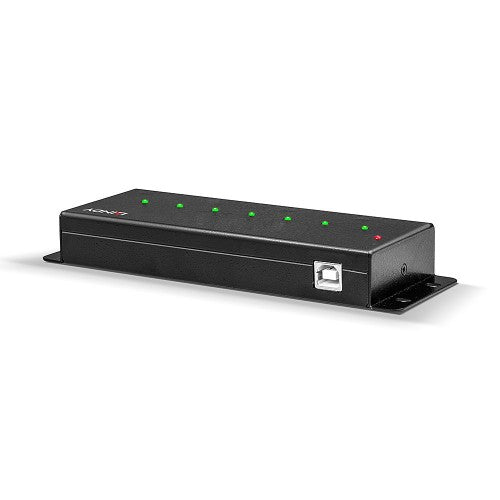

Lindy 7 Port USB 2.0 Metal Hub

7 Port USB 2.0 Metal Hub

Key Features

• Provides 7 USB 2.0 High Speed ports with data rates up to 480Mbps
• Hard-wearing USB Hub - Perfect for industrial applications
• Robust metal housing with high EMC protection and integrated brackets for mounting
• USB bus-powered, or can be externally powered
• 2 years warranty

Description

The Lindy 7 Port USB 2.0 Metal Hub has been designed to provide reliable performance in demanding operating environments.

This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection. With robust metal housing and integrated mounting brackets this Hub is the ideal solution for industrial environments.

Each USB port port features individual short circuit protection. The included power supply ensures secure and uninterrupted electricity supplies.

Specifications

Ports & interfaces
Host interface	USB 2.0 Type-B
Hub interfaces	USB 2.0
USB 2.0 ports quantity	7
DC-in jack	Yes
Ports quantity	7
Cable length	1.8 m
Features
LED indicators	Yes
Product colour	Black
Certification	CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Cable length	1.8 m
Data transfer rate	480 Mbit/s
Housing material	Metal
Host interface	USB 2.0 Type-B
Data transmission
Data transfer rate	480 Mbit/s
Power
Output voltage	5 V
Output current	3.2 A
Power supply type	DC
Power note	5.5/2.1mm DC
Technical details
Product colour	Black
Operating temperature (T-T)	32 - 122 °F
Performance
Certification	CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Data transfer rate	480 Mbit/s
Harmonized System (HS) code	84719000
Weight & dimensions
Weight	251 g
Width	165 mm
Depth	48 mm
Height	24 mm
Package width	222 mm
Package depth	156 mm
Package height	40 mm
Package weight	648 g
Packaging data
Package type	Box
Package width	222 mm
Package depth	156 mm
Package height	40 mm
Package weight	648 g
Quantity per pack	1 pc(s)
Packaging content
Included power plug types	AU, EU, UK, US
Cables included	USB Type-A to USB Type-B
Package type	Box
Design
LED indicators	Yes
Product colour	Black
Certification	CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Cable length	1.8 m
Operational conditions
Operating temperature (T-T)	32 - 122 °F
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Minimum operating temperature	0 °C
Maximum operating temperature	50 °C
Certificates
Certification	CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Indication
LED indicators	Yes
Logistics data
Harmonized System (HS) code	84719000
Other features
Chipset	FE 2.1
