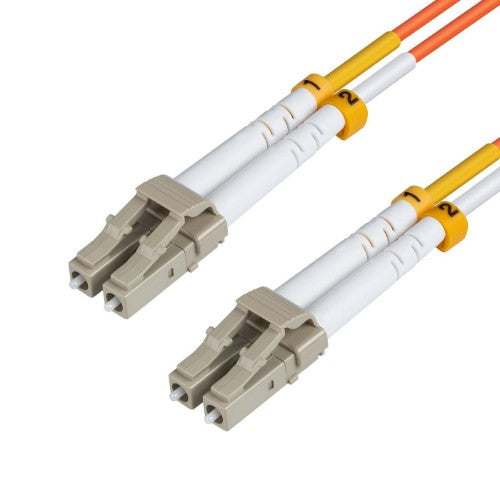

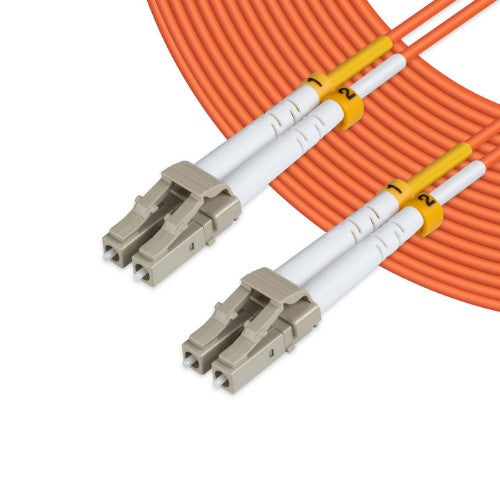

Optical Fibre Cable, LC-LC, Multimode, Duplex, OM1 (Orange) 5m
Key Features
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- RoHS compliant
Description
The 62.5/125µm OM1 multimode fiber optic cable is suitable for fast Ethernet, gigabit Ethernet and fiber channel applications, such as in data centers, telecom rooms, server farms, cloud storage networks and any place where fiber jumper cables are needed. OM1 patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
Specifications
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
5 m |
| Full duplex |
Yes |
| Core diameter |
62.5 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.3 dB |
| Doesn't contain |
Halogen |
| Compliance certificates |
RoHS |
| Features |
|---|
| Fibre optic type |
OM1 |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
5 m |
| Full duplex |
Yes |
| Core diameter |
62.5 µm |
| Cladding diameter |
125 µm |
| Operating temperature (T-T) |
-40 - 85 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Insertion loss |
0.3 dB |
| Product colour |
Orange |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 85 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Weight & dimensions |
|---|
| Cable length |
5 m |
| Package width |
176 mm |
| Package depth |
169 mm |
| Package height |
18 mm |
| Cable diameter |
2 mm |
| Weight |
40 g |
| Package weight |
48 g |
| Packaging data |
|---|
| Package width |
176 mm |
| Package depth |
169 mm |
| Package height |
18 mm |
| Package weight |
48 g |
