Mini Displayport 1.2 to DVI-I Adapter
Key Features
- Max resolution: Full HD 1920*1080p@60Hz
Description

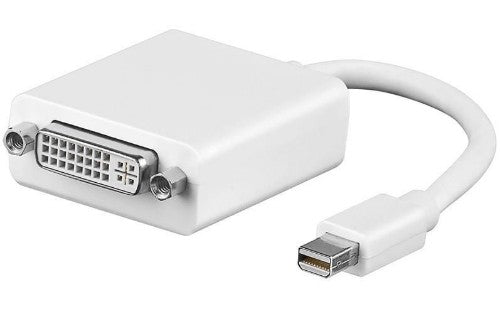

This MicroConnect Mini Displayport 1.2 to DVI-I adapter is for connecting a MacBook, iMac or PowerBook 12" to a monitor, projector or TV with a DVI port.
Specifications
| Features |
|---|
| Converter type |
Passive video converter |
| Chipset |
PS8121E |
| DisplayPort version |
1.2 |
| Product colour |
White |
| Bandwidth |
225 MHz |
| Cable length |
0.15 m |
| Connector 1 |
Mini DisplayPort |
| Connector 2 |
DVI-I |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Connector contacts plating |
Nickel |
| Cable material |
Copper |
| Jacket material |
Polyvinyl chloride (PVC) |
| AWG wire size |
32 |
| Data transfer rate |
10.2 Gbit/s |
| Bandwidth |
10200 MB/s |
| 3D |
Yes |
| HDCP |
Yes |
| Dual Link DVI |
Yes |
| Connector gender |
Male/Female |
| HDCP version |
2.2 |
| Weight & dimensions |
|---|
| Cable diameter |
4.8 mm |
| Weight |
30 g |
| Package width |
157 mm |
| Package depth |
119 mm |
| Package height |
18 mm |
| Package weight |
32 g |
| Packaging data |
|---|
| Package width |
157 mm |
| Package depth |
119 mm |
| Package height |
18 mm |
| Package weight |
32 g |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
