Description
1 x 10/100/1000 Base-T Auto-MDIX RJ-45, USB 3.0, 1000 Mbps max, IEEE 802.3/u/ab/x/az
The USB-0401 is USB 2.0 and 3.0 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.
This makes the USB-0401 the best choice for reliability, efficiency and standard compliance.
Key Features
- 10/100/1000Mbps wire speed transmission and reception
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
- 4K jumbo frames to increase data transfer rates
- Built-in Wake-on-LAN feature to startup computers remotely and modern stnadby
- Supports IPv4/IPv6 network operation
- No additional power supply required
- Multi-platform support: Windows, Mac OS, Linux
Description

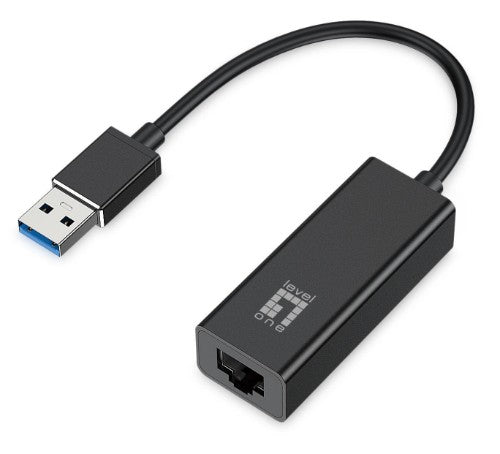

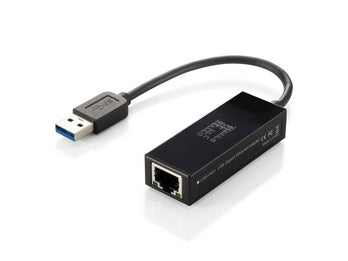

The LevelOne USB-0401 Gigabit USB Network Adapter allows you to connect to the internet easily through the built-in USB port on your laptop. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don’t come with an Ethernet port. Sometimes you need to physically connect to a network cable to help transfer files or access secure information. The USB-0401 easily does the job, all through your USB port.The USB-0401 is USB 2.0 and 3.0 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.
This makes the USB-0401 the best choice for reliability, efficiency and standard compliance.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Host interface | USB |
| Connectivity technology | Wired |
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Wake-on-LAN ready | Yes |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Wake-on-LAN ready | Yes |
| Jumbo frames support | Yes |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
| Product colour | Black |
| Certification | CE, FCC |
| Internal | No |
| LED indicators | Yes |
| Country of origin | China |
| Component for | PC/Laptop |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks |
| Power | |
| Output voltage | 5 V |
| Power consumption (typical) | 2 W |
| Power consumption | 900 mA |
| USB powered | Yes |
| Indication | |
| LED indicators | Yes |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | -20 - 45 °C |
| Storage relative humidity (H-H) | 20 - 75% |
| Weight & dimensions | |
| Width | 23.5 mm |
| Depth | 16.5 mm |
| Height | 245 mm |
| Weight | 26.5 g |
| Package width | 85 mm |
| Package depth | 22 mm |
| Package height | 158 mm |
| Package weight | 56.5 g |
| Packaging data | |
| Package width | 85 mm |
| Package depth | 22 mm |
| Package height | 158 mm |
| Package weight | 56.5 g |
| Quick installation guide | Yes |
| Manual | Yes |
| Packaging content | |
| Quick installation guide | Yes |
| Manual | Yes |
| Resource CD | Yes |
| Performance | |
| Wake-on-LAN ready | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks |
| Certificates | |
| Certification | CE, FCC |
| Other features | |
| Manual | Yes |
| Harmonized System (HS) code | 85176990 |
| Country of origin | China |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
