Description

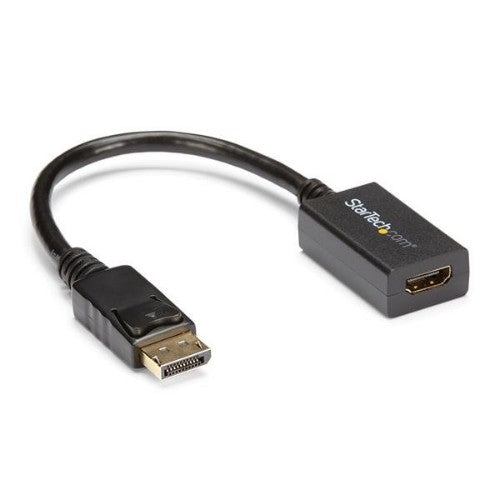

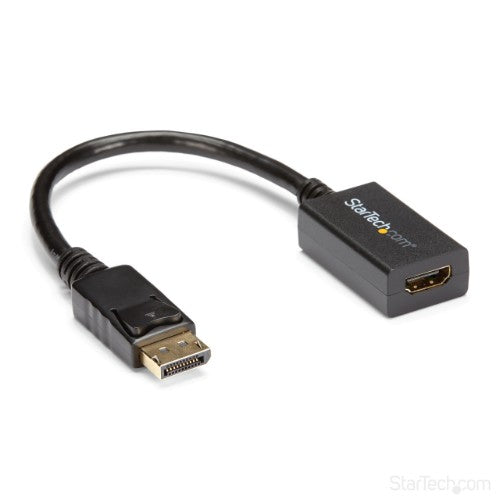

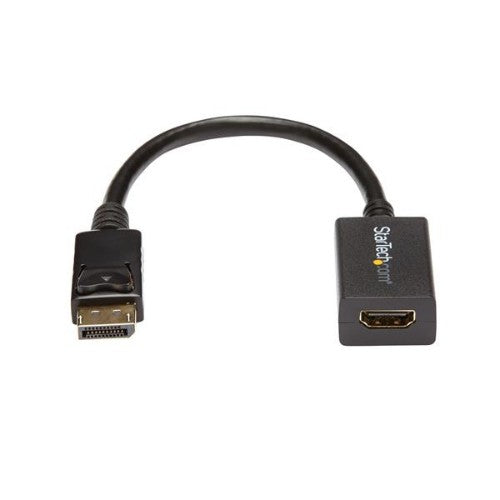

StarTech.com DisplayPort to HDMI Adapter - DP 1.2 to HDMI Video Converter 1080p - DP to HDMI Monitor/TV/Display Cable Adapter Dongle - Passive DP to HDMI Adapter - Latching DP Connector (DP2HDMI2)

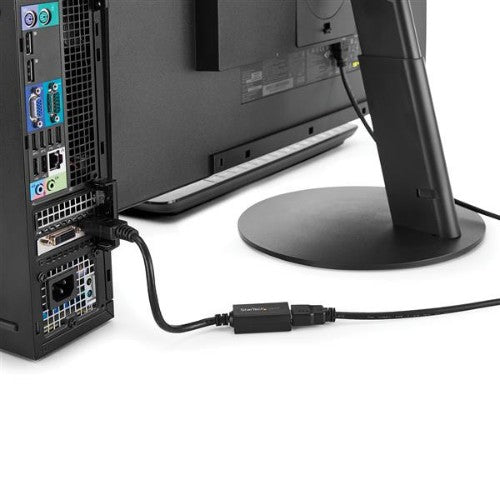

The StarTech.com DP2HDMI2 DisplayPort® to HDMI® Adapter lets you connect an HDMI-enabled display or projector to a DisplayPort out port from a computer (desktop or laptop), eliminating the expense of having to upgrade your display for DisplayPort compatibility.
The adapter supports display resolutions of up to 1920x1200, allowing you to take full advantage of HDMI video capability.
DP2HDMI2 is a passive adapter cable that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key Features
- PERFORMANCE: DisplayPort 1.2 to HDMI adapter connects a DP desktop or laptop to an HDMI display, monitor, projector or TV
- Supports HD 1920x1200 (1080p) video, 7.1ch Audio, HDCP 1.4
- 8in (21cm) attached cable
- HOST COMPATIBILITY: Tested for compatibility with DP++ source; Passive converter supports DP++ source connector incl workstations, desktops (AMD/Nvidia video cards), laptops, small form factor computers & docking stations

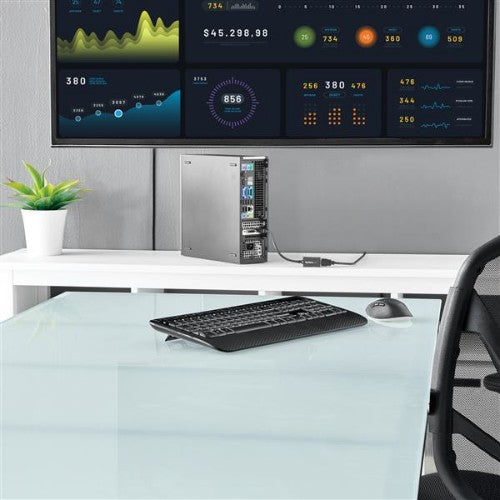

- CONNECT TO A PRIMARY OR SECONDARY DISPLAY: Connect an HDMI monitor, projector or TV, or add a second display to your workstation; Portable small form factor design makes it easy to carry between home office and office

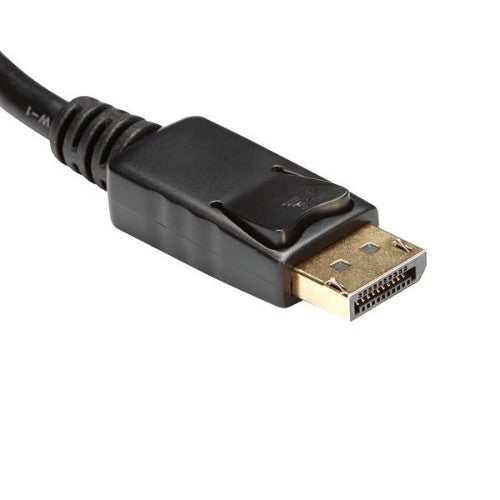

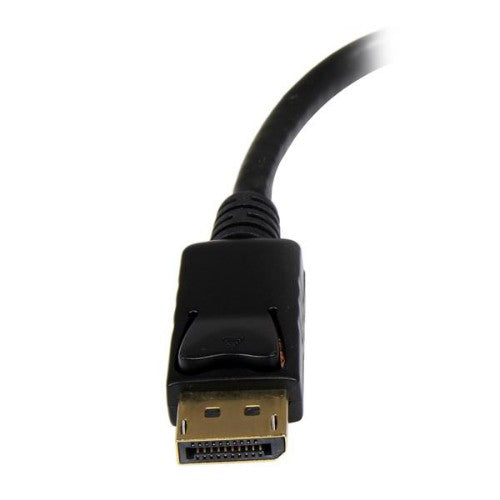

- LATCHING DISPLAYPORT CONNECTOR: DP to HDMI adapter dongle has latching DP connector to prevent accidental disconnection from the host DP port
Description
Connect your HDMI® monitor or HDTV to a DisplayPort® equipped computerThe StarTech.com DP2HDMI2 DisplayPort® to HDMI® Adapter lets you connect an HDMI-enabled display or projector to a DisplayPort out port from a computer (desktop or laptop), eliminating the expense of having to upgrade your display for DisplayPort compatibility.
The adapter supports display resolutions of up to 1920x1200, allowing you to take full advantage of HDMI video capability.
DP2HDMI2 is a passive adapter cable that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Features | |
|---|---|
| Converter type | Passive video converter |
| Chipset | NXP Semiconductors PTN3361B |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| Product colour | Black |
| Cable length | 0.21 m |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Maximum resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Plug and Play | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Supported audio channels | 7.1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Other features | |
| Width | 25 mm |
| Height | 14 mm |
| Depth | 265 mm |
| Weight & dimensions | |
| Width | 25 mm |
| Height | 14 mm |
| Depth | 265 mm |
| Weight | 32 g |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 16 mm |
| Package weight | 41 g |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 16 mm |
| Package weight | 41 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 335 mm |
| Master (outer) case length | 513 mm |
| Master (outer) case height | 213 mm |
| Products per master (outer) case | 180 pc(s) |
| Harmonized System (HS) code | 84733080 |
