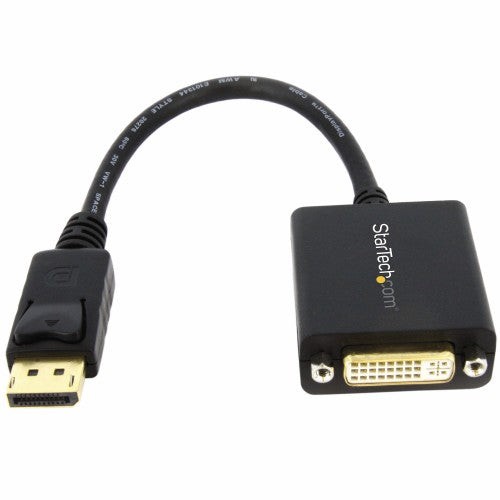

StarTech.com DisplayPort to DVI Adapter - DisplayPort to DVI-D Adapter Video Converter 1080p - DP 1.2 to DVI Monitor/Display Cable Adapter Dongle - DP to DVI Adapter - Latching DP Connector

StarTech.com DisplayPort to DVI Adapter - DisplayPort to DVI-D Adapter Video Converter 1080p - DP 1.2 to DVI Monitor/Display Cable Adapter Dongle - DP to DVI Adapter - Latching DP Connector (DP2DVI2)

Key Features

• DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-D (digital only) single-link adapter connects DVI display/projector / 1920x1200/1080p 60Hz; HDCP 1.4 / 6" (15cm) attached cable / DisplayPort Certified
• COMPATIBILITY: Passive video converter supports DP++ source incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
• CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector, or add a second display to your workstation using the DP to DVI adapter / Tested w/ DVI cables up to 25ft / EDID & DDC pass-through ensure compatibility between source & display

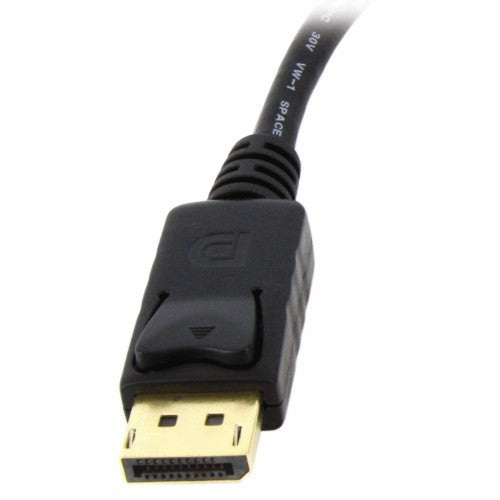

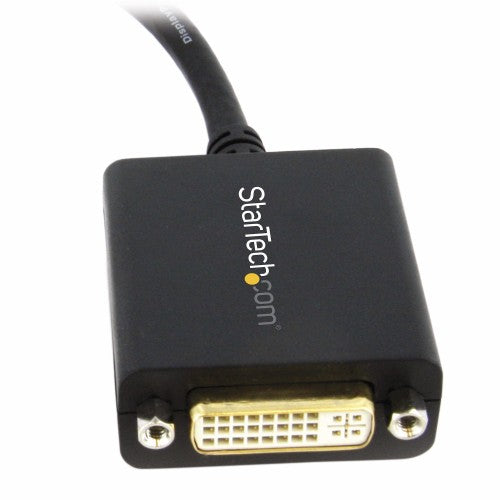

• LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector ensures a solid host connection / Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection / Compact design
• EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works w/ any OS / DisplayPort male to DVI female adapter dongle / Connector is DVI-I, however only a digital signal (DVI-D) passes through

Description

Connect your DVI monitor to a DisplayPort equipped computer

The DP2DVI2 DisplayPort® to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers.

Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

StarTech.com also offers the DP2DVIS, an Active DisplayPort to DVI adapter.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Features
Converter type	Passive video converter
DisplayPort version	1.2
Product colour	Black
Cable length	0.152 m
Connector 1	DisplayPort
Connector 2	DVI-I
Connector 1 gender	Male
Connector 2 gender	Female
Maximum resolution	1920 x 1200 pixels
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 600, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes	480p, 720p, 1080p
HDCP	Yes
Plug and Play	Yes
Certification	CE, FCC, REACH
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Dual Link DVI	No
Maximum refresh rate	60 Hz
HDCP version	1.4
HBR2 support	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	5 - 90%
Other features
Width	42 mm
Height	17 mm
Depth	254 mm
Weight & dimensions
Width	42 mm
Height	17 mm
Depth	254 mm
Weight	43 g
Package width	200 mm
Package depth	220 mm
Package height	19 mm
Package weight	52 g
Packaging data
Package width	200 mm
Package depth	220 mm
Package height	19 mm
Package weight	52 g
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	325 mm
Master (outer) case length	500 mm
Master (outer) case height	220 mm
Products per master (outer) case	140 pc(s)
Harmonized System (HS) code	84733080
