Description

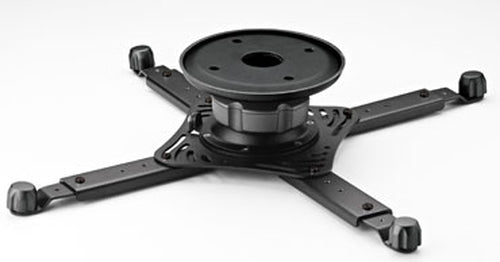

Neo-Flex Projector Ceiling Mount, 18kg
Benefits
-Universal mounting pattern fits projectors with most hole patterns.
-Legs adjustable from 5" to 19.8" (13–50 cm) diagonally for small to large projectors.
-Built-in pitch/roll adjustment.
-Includes ceiling plate and PFC-A coupler.
-Hex pin anti-theft security feature.
Description
A streamlined, fully adjustable projector mount with multiple user-friendly features. It has infinitely adjustable tilt and pitch, which are especially helpful for post installation adjustment.Benefits
-Universal mounting pattern fits projectors with most hole patterns.
-Legs adjustable from 5" to 19.8" (13–50 cm) diagonally for small to large projectors.
-Built-in pitch/roll adjustment.
-Includes ceiling plate and PFC-A coupler.
-Hex pin anti-theft security feature.
Specifications
| Mounting | |
|---|---|
| Mounting type | Ceiling |
| Maximum weight capacity | 18 kg |
| Performance | |
| Tilt angle range | 0 - 30° |
| Swivel angle range | 0 - 360° |
| Mounting type | Ceiling |
| Maximum weight capacity | 18 kg |
| Product colour | Black |
| Adjustable arm | No |
| Ergonomics | |
| Tilt angle range | 0 - 30° |
| Swivel angle range | 0 - 360° |
| Product colour | Black |
| Adjustable arm | No |
| Weight & dimensions | |
| Height | 91 mm |
| Depth (min) | 12.7 cm |
| Depth (max) | 50.2 cm |
| Technical details | |
| Tilt angle range | 0 - 30° |
| Swivel angle range | 0 - 360° |
| Mounting type | Ceiling |
| Maximum weight capacity | 18 kg |
| Product colour | Black |
| Adjustable arm | No |
| Logistics data | |
| Harmonized System (HS) code | 83024190 |
